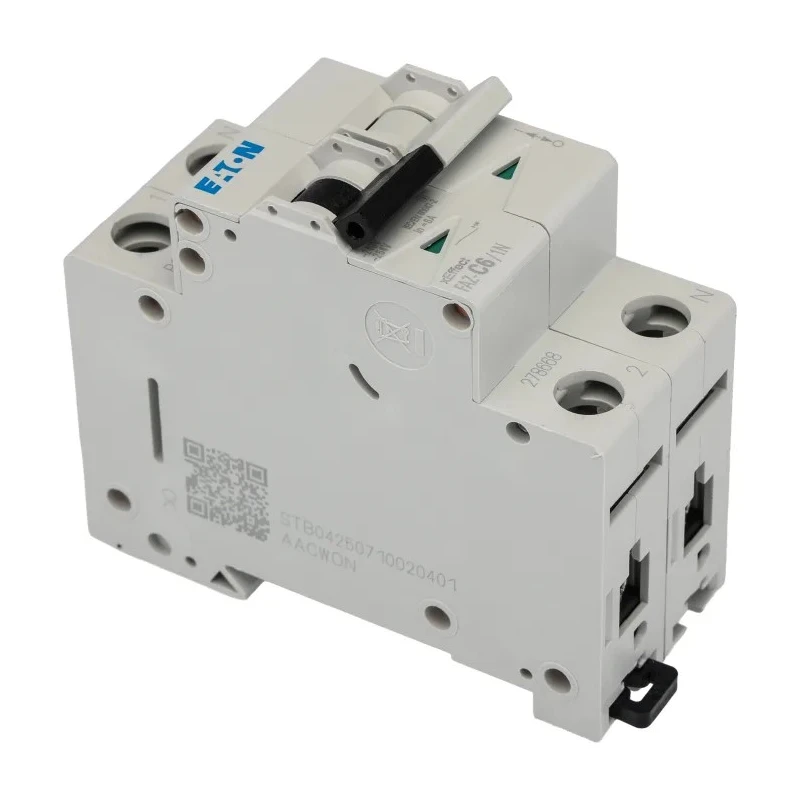

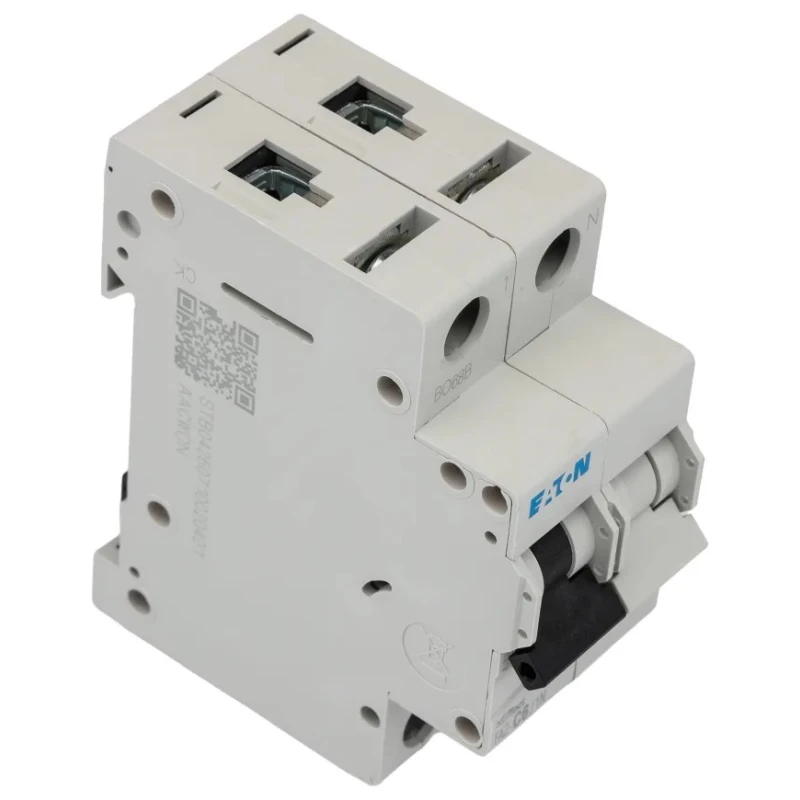

Eaton xEffect Miniature Circuit Breaker 1-Pole 6A Type C 240V AC 48V DC 10 kA Breaking Capacity 278668 FAZ-C6/1N

Free Delivery in India | Lowest Global Shipping Charges

Eaton xEffect Miniature Circuit Breaker 1-Pole 6A Type C 240V AC 48V DC 10 kA Breaking Capacity 278668 FAZ-C6/1N

Name: Eaton xEffect Miniature Circuit Breaker 1-Pole 6A Type C 240V AC 48V DC 10 kA Breaking Capacity 278668 FAZ-C6/1N
Brand: Eaton
SKU: 389623
Price: 102.87 USD
Availability: InStock



Category Miniature Circuit Breaker Brand Eaton Condition New

Specifications

Country of Origin	India
Range	xEffect
Brand	Eaton
Model	278668 FAZ-C6/1N
Depth	80mm
IP Rating	IP20
Width	66mm
Mount Type	DIN Rail
Current Rating	6A
Series	FAZ
Terminal type	Screw
Breaking Capacity	10kA
Number of Poles	1
Rated AC Voltage	240V ac
Rated DC Voltage	48V dc
Tripping Characteristics	Type C
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Toggle Switch
Break Time	Instantaneous
Eaton Bussmann Series 30A Centred Tag FuseBrand	Cooper Bussmann

Key Features

Provides effective circuit protection with a 10 kA breaking capacity.
Operates at rated AC voltage of 240V and DC voltage of 48V.
Features a thermal magnetic tripping mechanism for reliable overload and short-circuit protection.
Compact size measuring 80 mm depth and 66 mm width for easy installation.
Mounts directly onto standard 35mm DIN rails for straightforward integration.
IP20 rated for touch-proof design and safe handling, with IP40 protection once fitted.
Toggle switch reset actuator shows contact position instantly.
Designed for electrical systems requiring instantaneous break time.

Product Description

Eaton 278668 FAZ-C6/1N Miniature Circuit Breaker is a 1-pole device rated at 6 amperes with Type C tripping characteristics. It supports a rated AC voltage of 240V and a DC voltage of 48V, providing essential protection against overloads and short circuits in electrical installations.

This breaker features a thermal magnetic tripping mechanism that responds instantaneously to high surge currents between five to ten times the rated current, making it ideal for domestic lighting circuits, consumer electronics, and small commercial applications. Its breaking capacity of 10 kA ensures safe interruption of fault currents without damage to the electrical network.

The device is designed for easy and secure mounting onto a 35mm DIN rail and comes with a toggle switch reset actuator that clearly indicates the contact position. Its IP20 rating ensures protection against accidental contact with live parts, and the unit gains an IP40 rating once installed, protecting against solid objects larger than 1mm.

With compact dimensions of 80 mm depth, 75.5 mm height, and 36 mm width, this miniature circuit breaker fits neatly into restricted spaces. Eaton's xEffect series emphasizes reliability and durability, with this MCB capable of over 10,000 electrical switching cycles, assuring long-term dependable service.

Effective overload and short-circuit protection with Type C thermal magnetic tripping. Instantaneous break action for rapid fault current interruption. Compact and space-saving design for flexible installation. Durable construction with high electrical endurance.

Safe and convenient toggle switch for reset and status indication.

This Eaton Miniature Circuit Breaker is widely suitable for use in industrial, commercial, and residential electrical systems requiring dependable circuit protection. Its DIN rail mounting and robust safety features support efficient electrical panel configurations and compliance with safety standards.

Explore a wide range of Eaton circuit protection products with EnvMart for your electrical safety needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Eaton xEffect Miniature Circuit Breaker has a breaking capacity of 10 kA, ensuring safe interruption of fault currents without damaging the electrical network.

This model supports a rated AC voltage of 240V and a DC voltage of 48V, making it suitable for various electrical applications.

The current rating of this miniature circuit breaker is 6A, which is ideal for protecting electrical circuits from overloads and short circuits.

It features a thermal magnetic tripping mechanism that responds instantaneously to high surge currents, providing reliable overload and short-circuit protection.

The Eaton xEffect Miniature Circuit Breaker has an IP20 rating, which ensures protection against accidental contact with live parts, and gains an IP40 rating once installed.

This unit mounts directly onto standard 35mm DIN rails, allowing for straightforward integration into electrical panel configurations.

The dimensions of this circuit breaker are 80 mm in depth, 66 mm in width, and 75.5 mm in height, making it compact for installation in limited spaces.

It uses a toggle switch reset actuator, which provides clear indication of the contact position for easy operation.

This model has Type C tripping characteristics, which are designed for applications that require instantaneous break time for high surge currents.

This circuit breaker is suitable for domestic lighting circuits, consumer electronics, and small commercial applications requiring reliable circuit protection.

The Eaton xEffect Miniature Circuit Breaker is manufactured in India, ensuring compliance with local manufacturing standards.

This miniature circuit breaker is a 1-pole device, designed for single-phase electrical systems.
