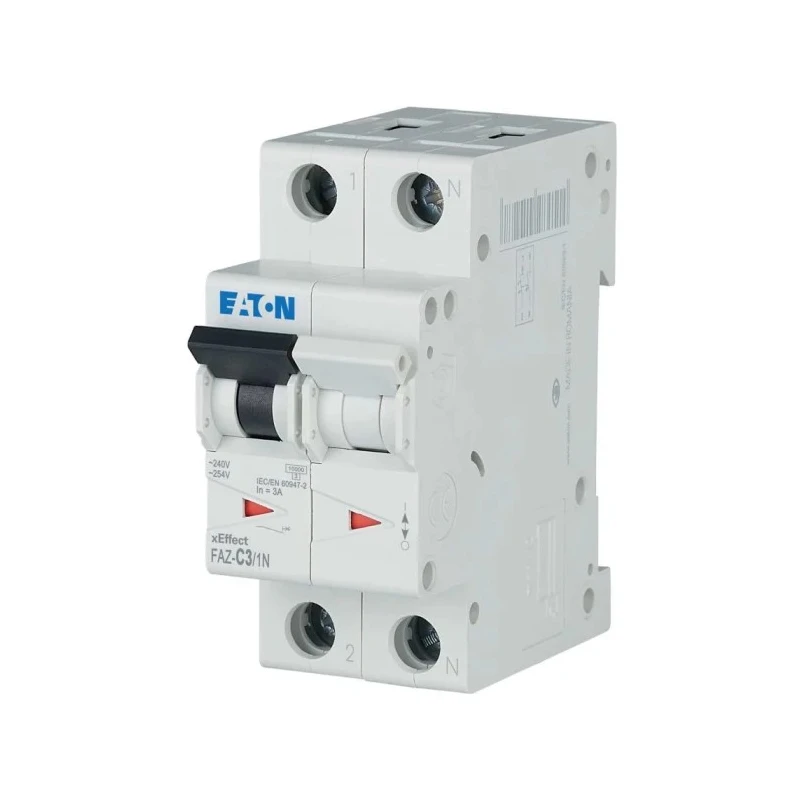

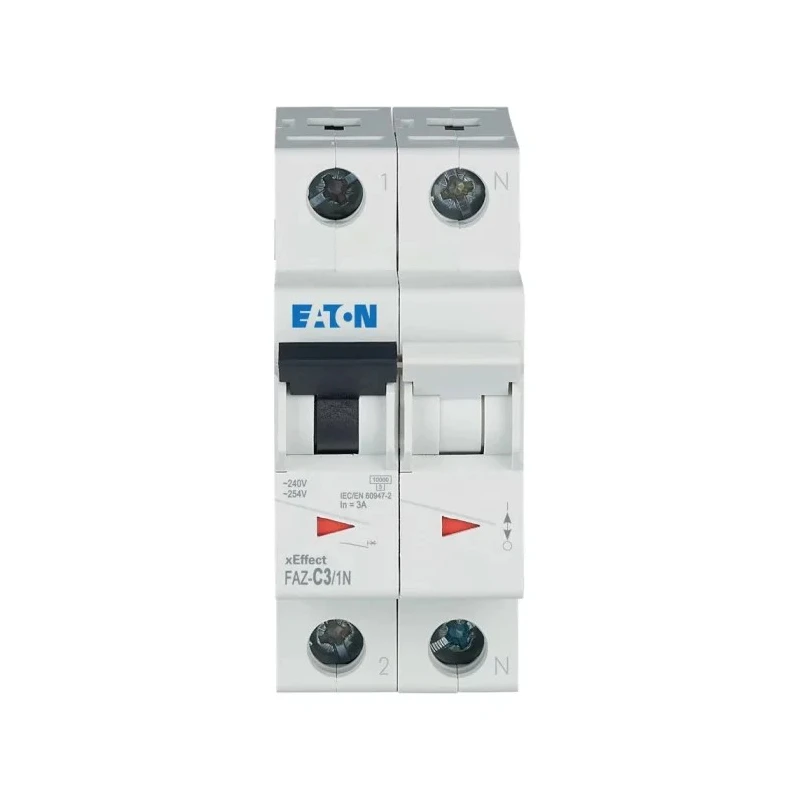

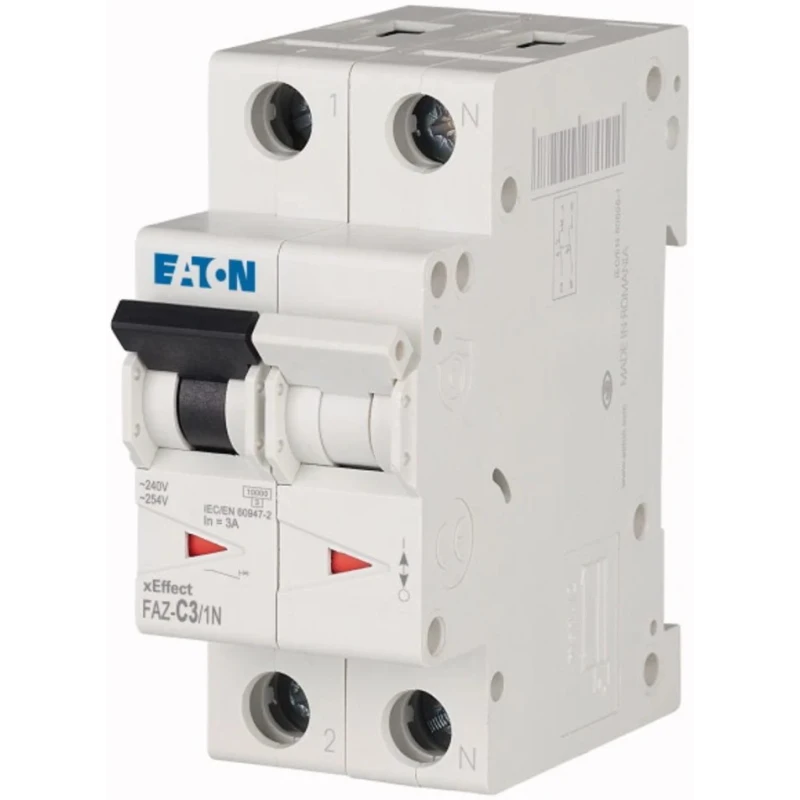

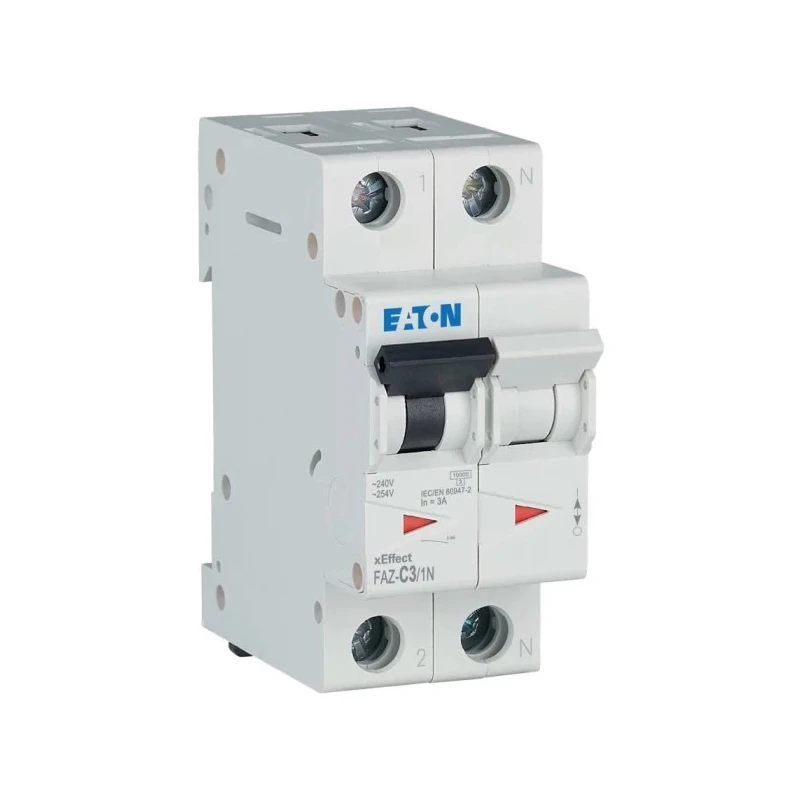

Eaton xEffect Miniature Circuit Breaker, 1-Pole, 3A Current, Type C Tripping, 240V AC, 48V DC, 10 kA 278664 FAZ-C3/1N

Eaton 278664 FAZ-C3/1N Miniature Circuit Breaker is a 1-Pole protective device rated at 3 amperes, designed for effective circuit protection in both industrial and commercial electrical systems. It operates with 240V AC and 48V DC voltages, making it suitable for a broad range of applications requiring reliable tripping and breaking capability.

The breaker features a thermal-magnetic tripping mechanism that responds instantly to overcurrent conditions. The thermal element reacts to temperature increases caused by prolonged overloads, while the magnetic element provides immediate response to sudden current surges. This dual tripping action ensures fast and accurate protection of electrical circuits, preventing damage and downtime.

Engineered for ease of installation, the FAZ series breaker mounts on standard DIN rails and utilizes screw terminals for secure electrical connections. Its compact form factor, measuring 66 mm in width and 80 mm in depth, enables integration in tight electrical cabinets and control panels without space compromise.

The device supports a high breaking capacity of 10 kA, allowing it to safely interrupt large surge currents typical in industrial environments. The front-mounted toggle switch facilitates easy resetting of the breaker after tripping, enhancing operational convenience.

Its IP20 ingress protection rating offers basic safety against accidental contact and solid foreign bodies, fitting typical requirements in electrical distribution boards. Weighing approximately 200 grams, the breaker imposes minimal additional mechanical load on installations.

This Eaton miniature circuit breaker is widely used for protecting branch circuits in packaging plants, data centers, manufacturing facilities, and other commercial or industrial installations requiring robust electrical safety solutions.

Equipped with thermal-magnetic tripping mechanism for accurate current interruption. Supports both AC and DC voltage ratings for versatile use. Compact and lightweight design for easy mounting and panel integration. High breaking capacity ensures safe interruption of surge currents.

Simple toggle switch reset enhances operational convenience. Front-mounted screw terminals enable secure wiring connections. Durable housing with IP20 rating for basic protection. Suitable for industrial, commercial, and data center electrical systems.

Mounts easily on standard DIN rails for fast installation. Discover the full range of Eaton Miniature Circuit Breakers and other circuit protection solutions on EnvMart for your industrial and commercial electrical safety needs.
