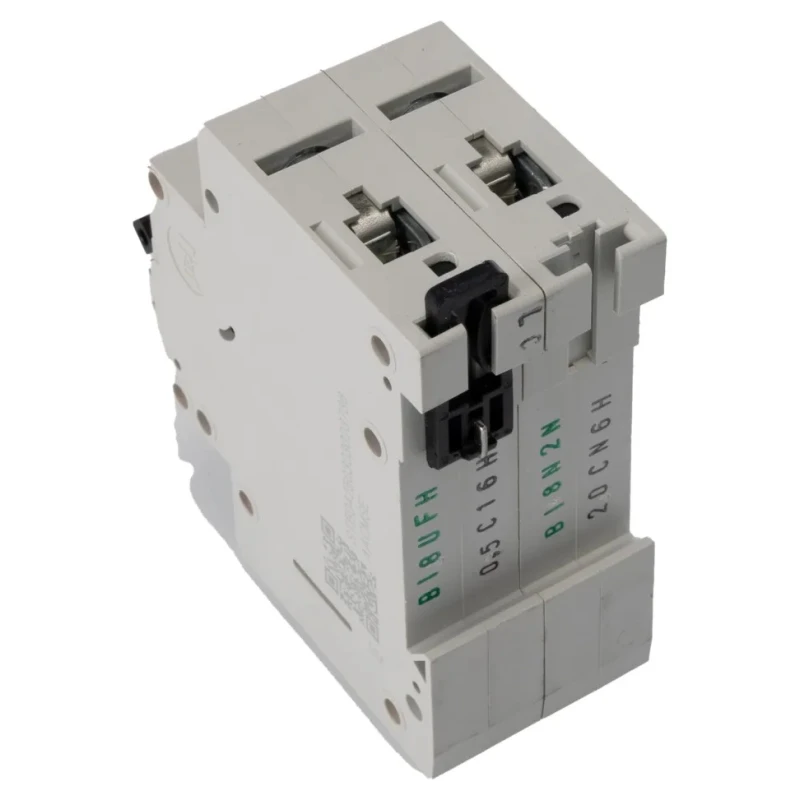

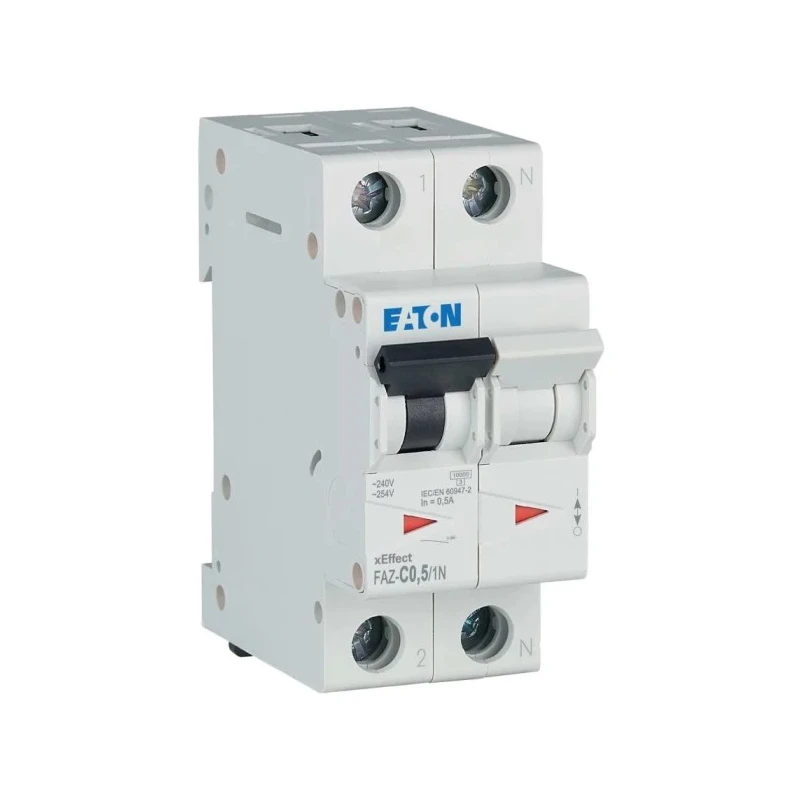

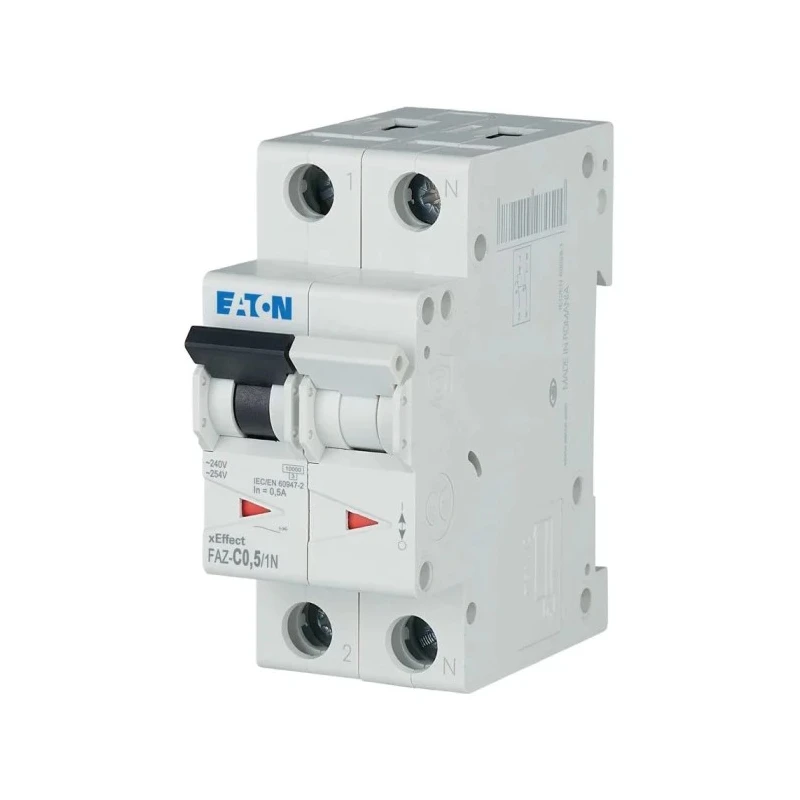

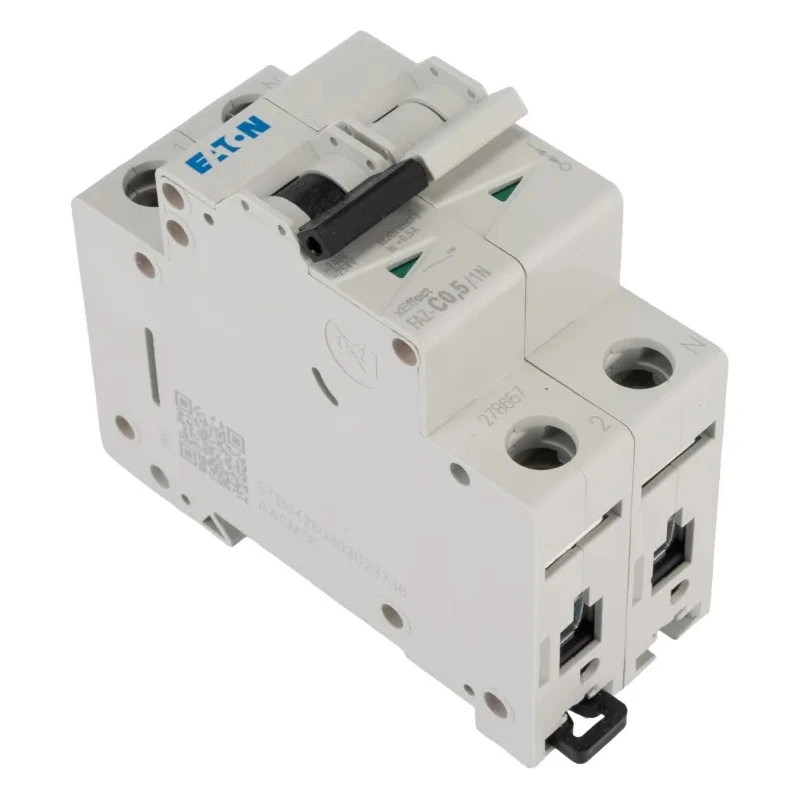

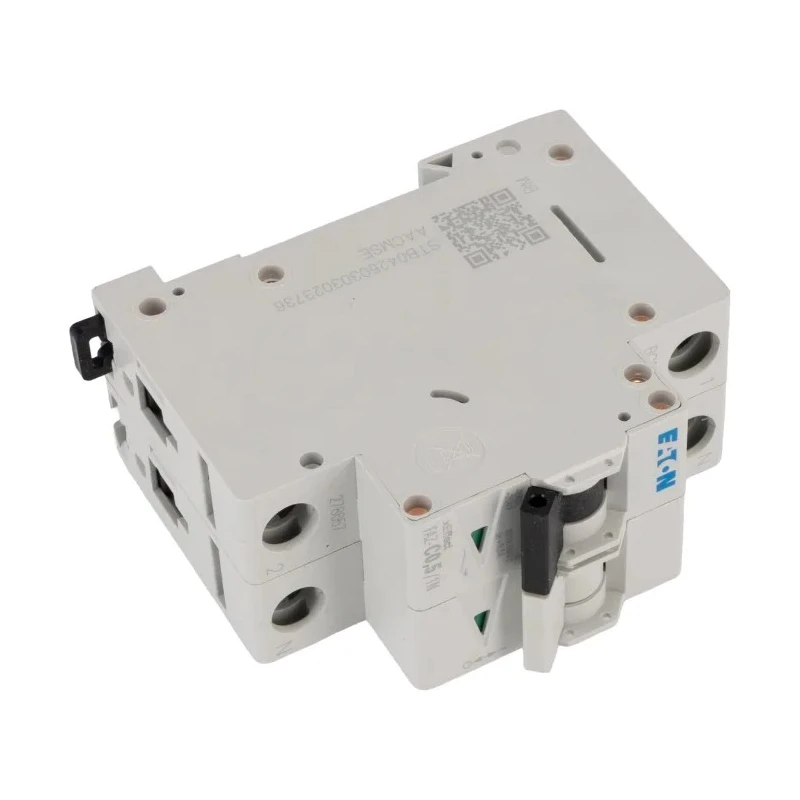

Eaton xEffect Miniature Circuit Breaker 1-Pole 500mA Type C 240V AC 48V DC 10kA Breaking Capacity 278657 FAZ-C0,5/1N

Eaton 278657 FAZ-C0,5/1N miniature circuit breaker is a high-quality, single-pole electrical protection device designed for both AC and DC applications requiring precise and robust current interruption. Rated at 500mA, it features a Type C tripping characteristic suitable for a broad spectrum of industrial and commercial applications.

This circuit breaker is engineered to mount on standard DIN rails, facilitating quick and reliable installation while optimizing panel layout. Its screw terminal design ensures secure wiring connections, enhancing the reliability of the system.

The thermal-magnetic trip mechanism combines thermal overload protection with a magnetic instantaneous trip for short-circuit events. This allows the breaker to react quickly to dangerous overcurrent conditions with an instantaneous break time, minimizing risk to electrical circuits and equipment.

With a breaking capacity of 10 kiloamperes, it can safely interrupt high fault currents, making it suitable for demanding industrial environments including automated systems, electronic manufacturing, and electrical distribution panels.

The device is housed in a compact casing with an IP20 ingress protection rating, providing basic protection against finger contact and solid objects. Measuring 36 mm in width and 80 mm in depth, it efficiently fits into electrical control panels where space is critical.

Designed for easy DIN rail mounting and space-saving installation. Durable screw terminals provide secure electrical connections. Reliable thermal-magnetic trip mechanism with instantaneous break time. Type C tripping ensures suitable response for various applications.

High breaking capacity of 10 kA for fault current interruption. Compact dimensions for efficient panel integration. Toggle switch actuator for straightforward manual operation. Suitable for industrial automation and machinery control panels.

Single pole configuration supports versatile electrical setups. IP20 rated for basic ingress protection.

This Miniature Circuit Breaker is ideal for industrial, construction, commercial electrical systems, and manufacturing environments requiring reliable and compact circuit protection solutions. Eaton's respected xEffect FAZ series ensures consistent performance to protect circuits against overloads and short circuits.
