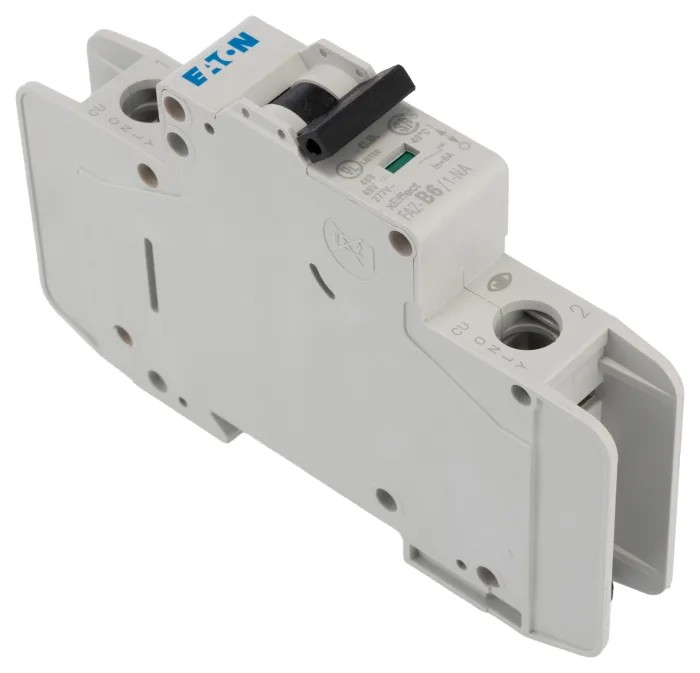

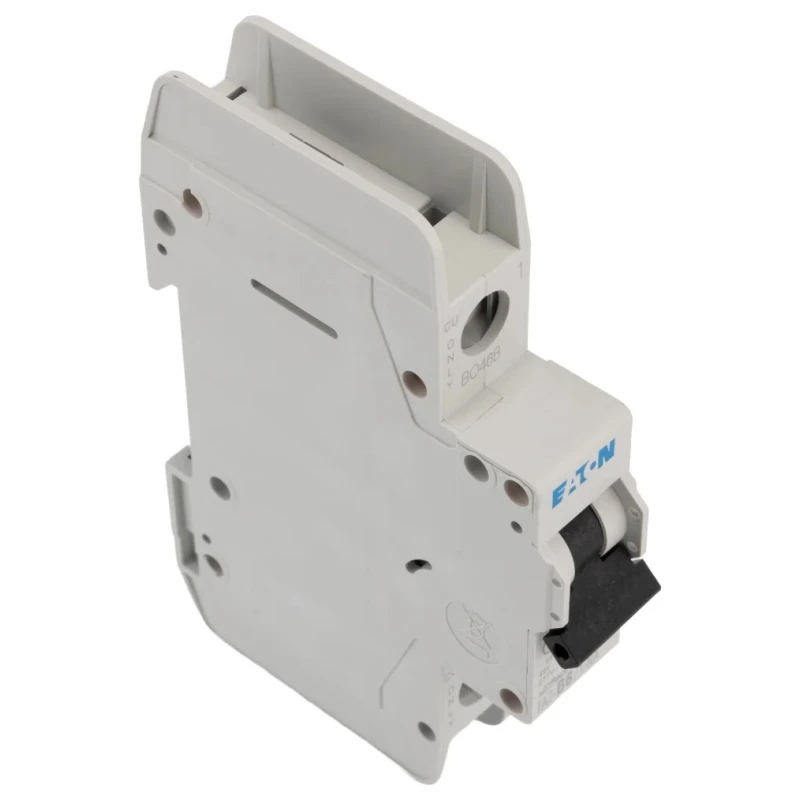

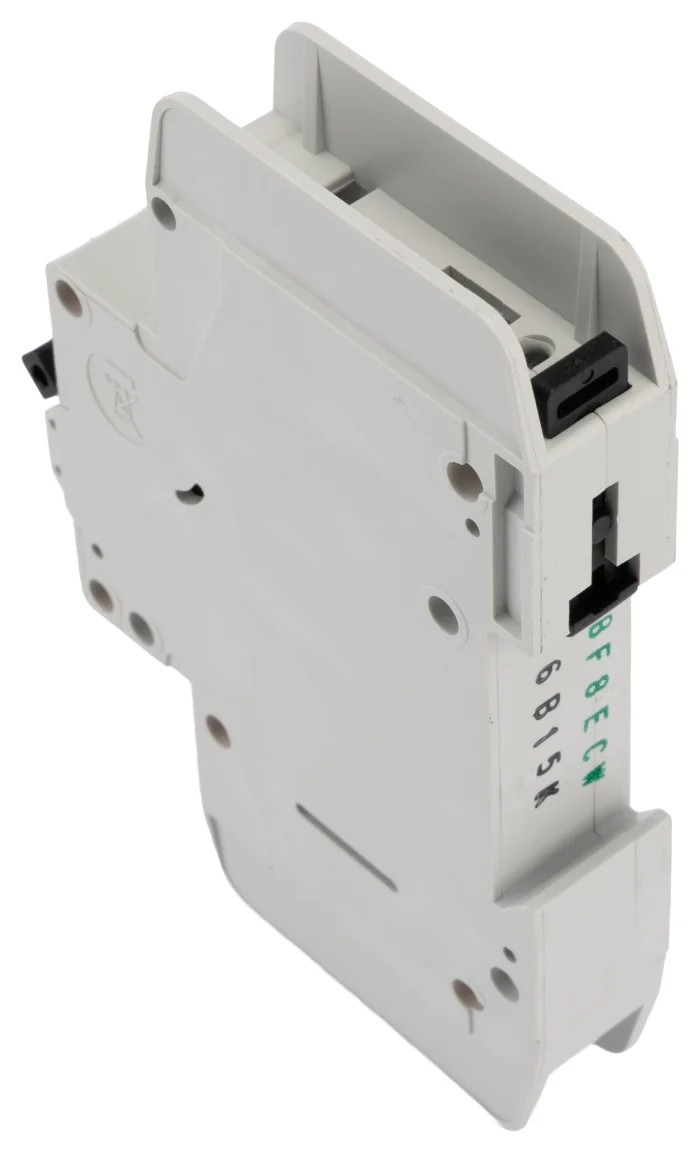

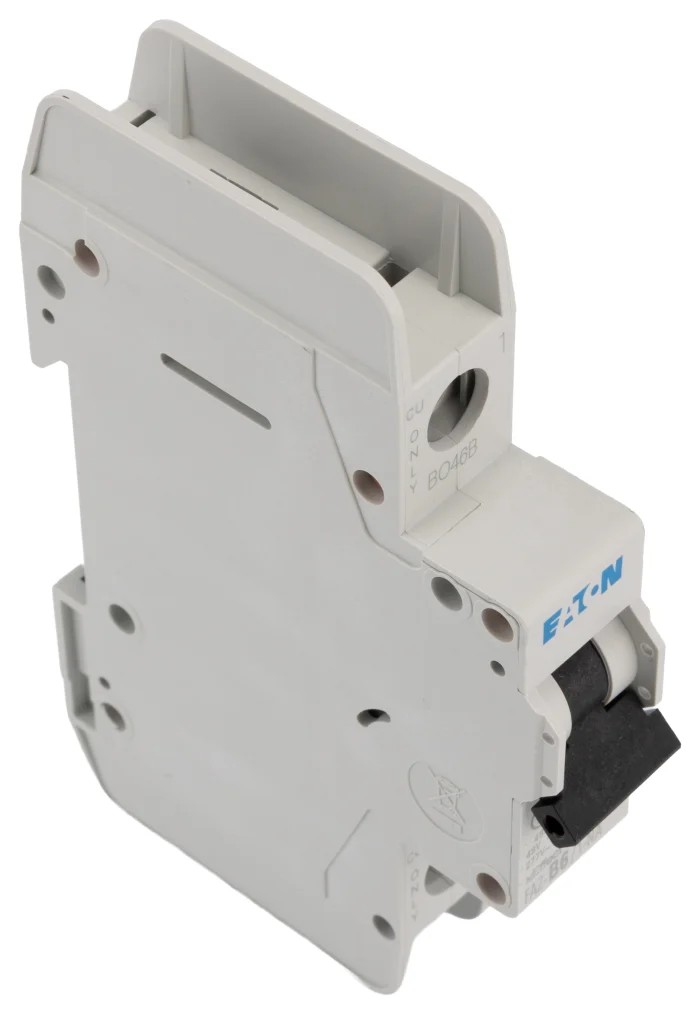

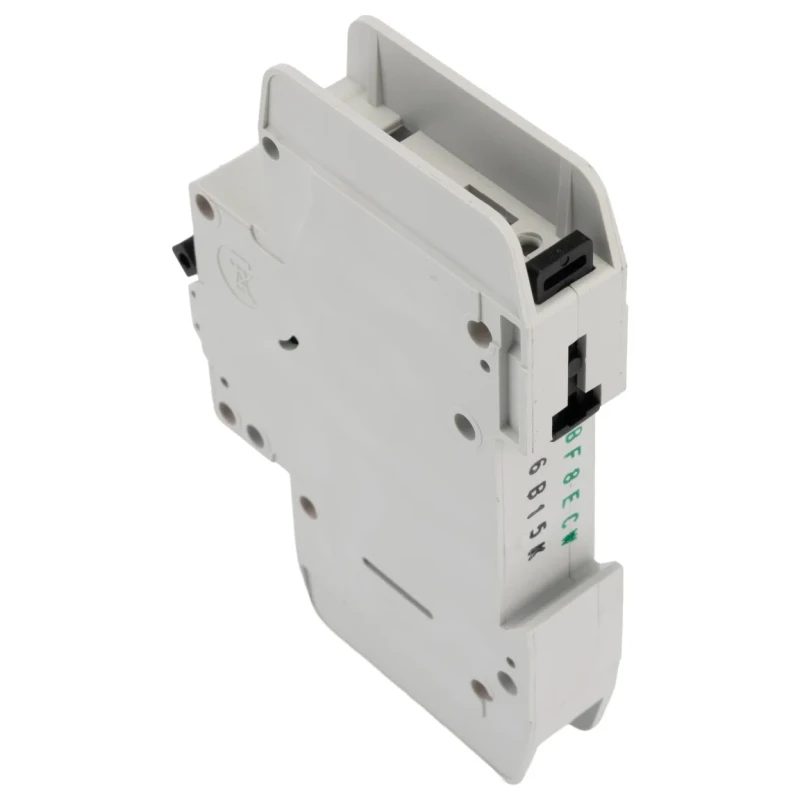

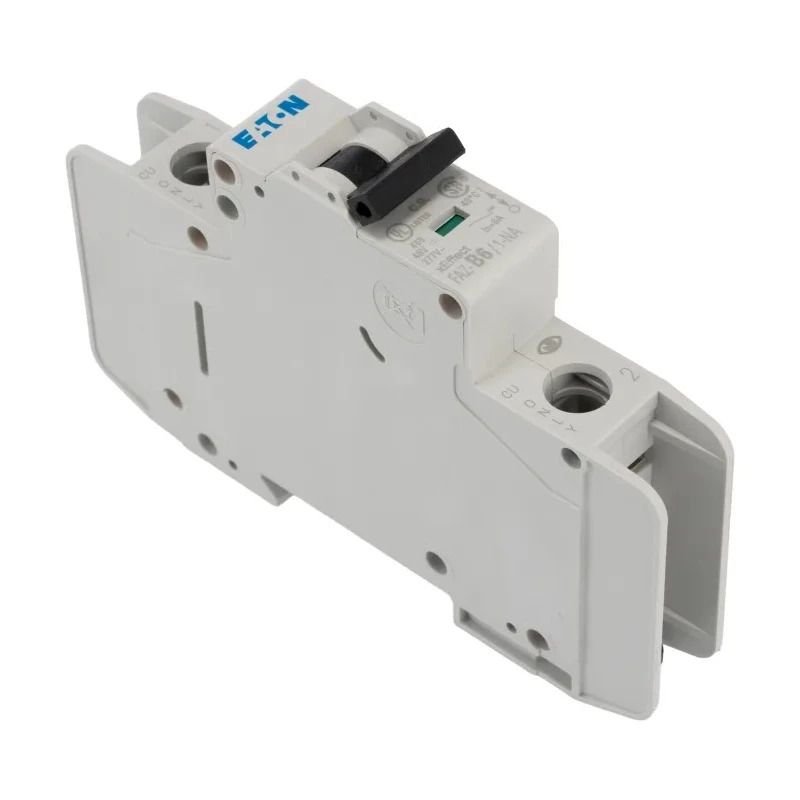

Eaton xEffect FAZ Miniature Circuit Breaker 1 Pole 6A Type B Thermal Magnetic 415V AC 48V DC 10kA 132680 FAZ-B6/1-NA
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | Eaton |
| Model | 132680 FAZ-B6/1-NA |
| Depth | 80mm |
| IP Rating | IP20 |
| Width | 66mm |
| Mount Type | DIN Rail |
| Current Rating | 6A |
| Series | FAZ |
| Terminal type | Screw |
| Breaking Capacity | 10kA |
| Number of Poles | 1 |
| Rated AC Voltage | 415V ac |
| Rated DC Voltage | 48V dc |
| Tripping Characteristics | Type B |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
Key Features
- Designed for 415V AC and 48V DC electrical systems.
- Thermal magnetic tripping mechanism ensures fast response to overloads and short circuits.
- High breaking capacity of 10 kA for enhanced safety.
- Type B tripping characteristics prevent nuisance tripping in sensitive circuits.
- Standard DIN rail mounting enables easy installation.
- Toggle switch actuator allows simple and quick manual reset.
- Compact dimensions fit efficiently in control panels.
- Rated for low voltage distribution in residential, commercial, and industrial applications.
Product Description
Eaton 132680 FAZ-B6/1-NA Miniature Circuit Breaker is a single pole device rated at 6 amps with Type B thermal magnetic tripping characteristics, suitable for safe and reliable protection of electrical circuits.
This circuit breaker operates at 415 volts AC and 48 volts DC, boasting a 10 kA breaking capacity to handle high fault currents without failure, making it ideal for demanding environments. Designed for DIN rail mounting, it offers a compact form factor with an 80mm depth and 66mm width to fit standard electrical enclosures.
The thermal magnetic tripping mechanism rapidly responds to overloads and short circuits, which is essential for automation systems and control panels where fast disconnection is critical to protect sensitive equipment. The toggle switch reset actuator allows easy manual resetting after tripping events.
This device complies with IEC 898, BS EN 60898, and EN 50 022/DIN 46277-3 standards, ensuring adherence to rigorous safety and performance requirements.
Applications include low voltage distribution systems in residential, commercial, and industrial settings, as well as use in automation and control panels requiring precise and reliable circuit protection.
Designed for 415V AC and 48V DC electrical systems. Thermal magnetic tripping mechanism provides fast and reliable circuit protection. High breaking capacity of 10 kA enhances safety under fault conditions. Type B tripping characteristics reduce nuisance trips in sensitive circuits.
DIN rail mounting enables straightforward installation and replacement. Compact size suits space-constrained electrical enclosures. Toggle switch actuator allows quick manual reset after trips. Complies with international safety standards for miniature circuit breakers.
This Eaton Miniature Circuit Breaker is a trusted choice for electrical installations demanding high performance and safety. Discover more circuit protection products and solutions from Eaton and other leading brands on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton xEffect FAZ Miniature Circuit Breaker has a rated current of 6A.
This model features a breaking capacity of 10 kA, allowing it to handle high fault currents effectively.
It is rated for 415V AC and 48V DC electrical systems.
This circuit breaker employs a thermal magnetic tripping mechanism for rapid response to overloads and short circuits.
It is designed for DIN rail mounting, which facilitates straightforward installation in electrical enclosures.
The dimensions are 80mm in depth and 66mm in width, making it compact for various applications.
The Eaton xEffect FAZ Miniature Circuit Breaker features Type B tripping characteristics, which help reduce nuisance tripping in sensitive circuits.
It includes a toggle switch actuator for easy manual resetting after a trip event.
It complies with IEC 898, BS EN 60898, and EN 50 022/DIN 46277-3 standards, ensuring safety and performance.
The IP rating for this device is IP20, indicating its level of protection against solid objects and moisture.
It is suitable for low voltage distribution in residential, commercial, and industrial applications, as well as in automation and control panels.
It features screw-type terminals for secure connections.
