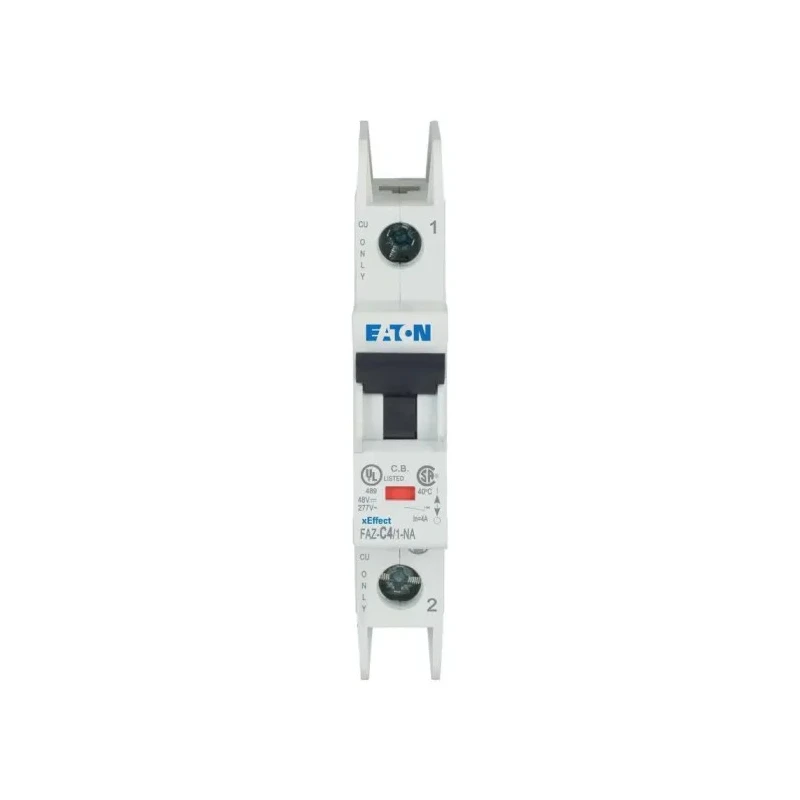

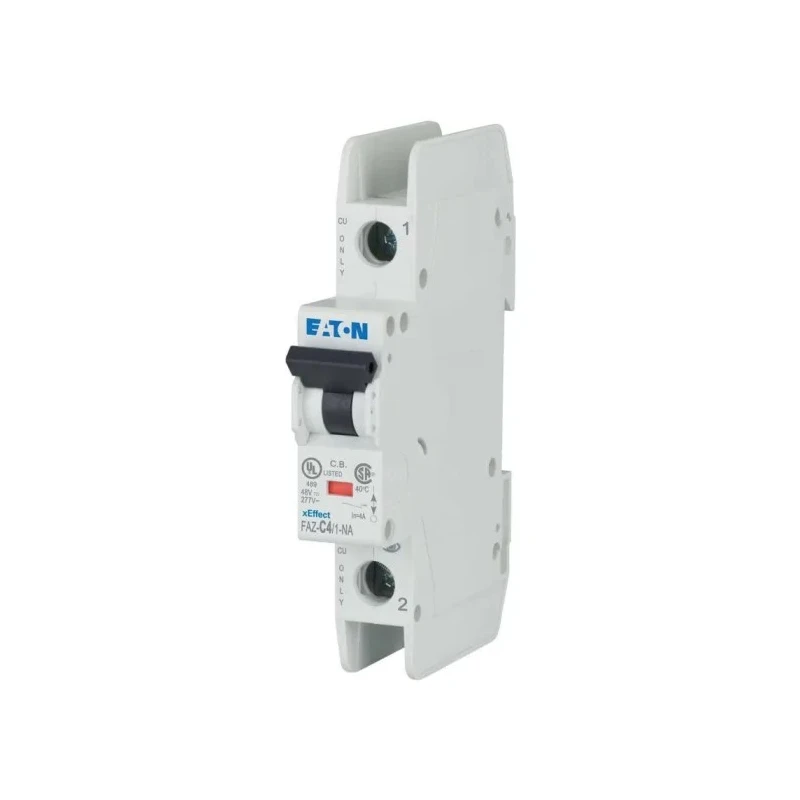

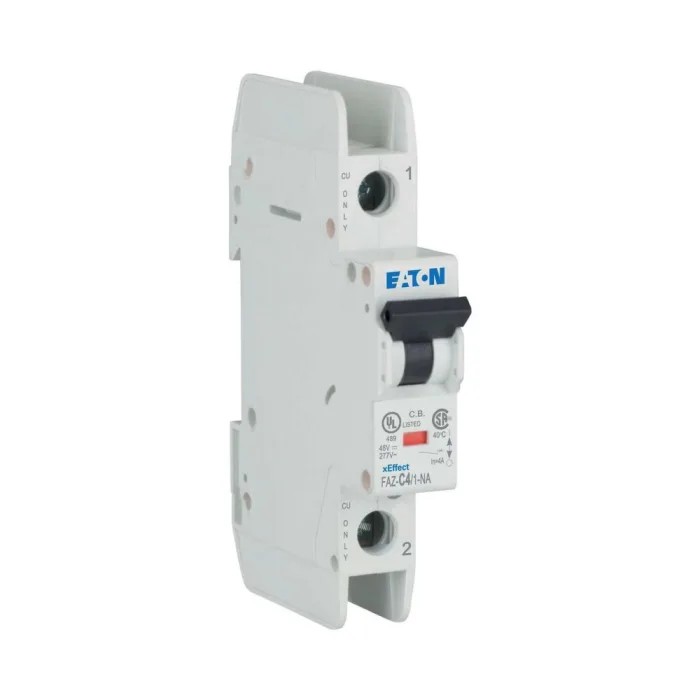

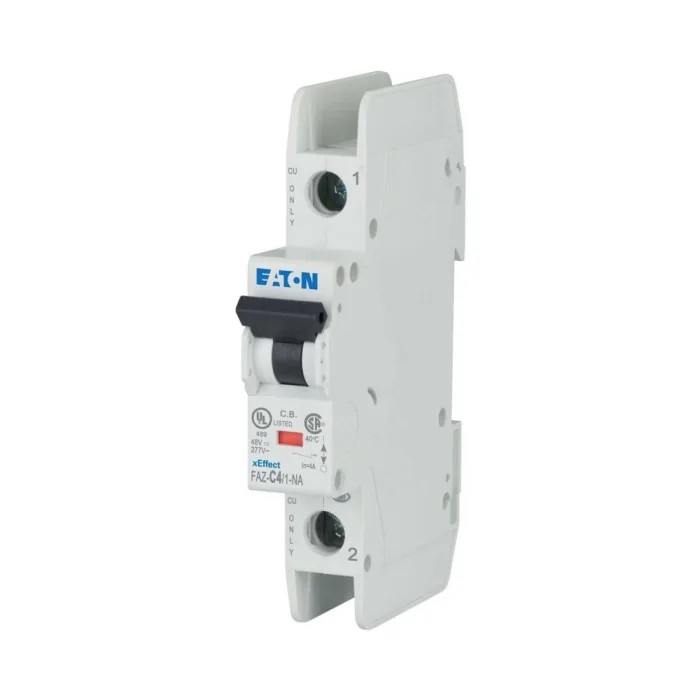

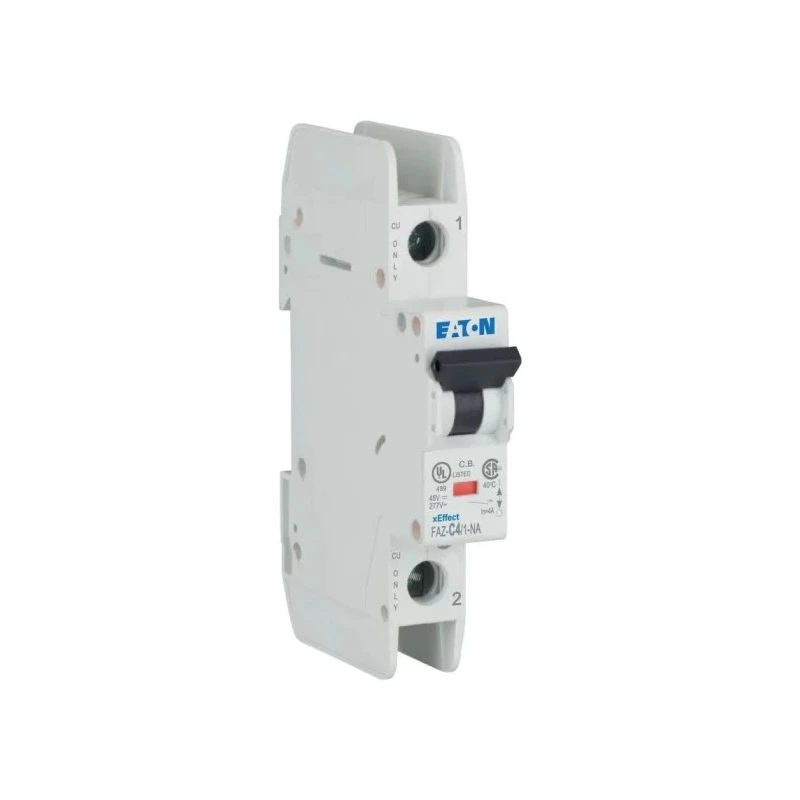

Eaton Miniature Circuit Breaker 1-Pole 4A Type C Thermal Magnetic Tripping 415V AC 48V DC 10kA Breaking 102082 FAZ-C4/1-NA

Eaton 102082 FAZ-C4/1-NA Miniature Circuit Breaker is a compact, single-pole device engineered to provide high-performance electrical protection in industrial, commercial, and residential installations. Rated at 4 amperes and featuring Type C tripping characteristics, this breaker efficiently manages overloads and short circuits, especially in applications with moderate inrush currents such as motors and transformers.

Designed for DIN rail mounting, it has dimensions of 66mm width, 80mm height, and 80mm depth, optimizing space usage within electrical panels. The thermal magnetic trip mechanism offers dependable tripping for both overload and short-circuit conditions with instantaneous response, ensuring circuit safety.

The breaker supports rated voltages of 415V AC and 48V DC, making it suitable for a wide range of electrical systems. Its screw terminal connections provide sturdy and secure wiring, enhancing installation reliability. The toggle switch-type reset actuator simplifies circuit restoration following trips.

With an IP20 rating, the device ensures protection against solid foreign objects. The 10 kA breaking capacity indicates its capability to interrupt fault currents up to 10,000 amps safely, suitable for demanding power environments.

Typical applications include use in commercial and industrial distribution boards, automation and control systems, and residential electrical protections. Its Type C tripping class makes it ideal for circuits with motors or transformers that exhibit high starting currents without nuisance trips.

This miniature circuit breaker supports 1-pole configuration for effective single-phase protection. Rated current of 4 amperes offers precise overload and short circuit current handling. Type C tripping characteristics are suitable for protecting circuits with moderate inrush currents.

Supports operation at 415V AC and 48V DC voltages for versatile use. Designed for DIN rail mounting with compact dimensions of 66mm width, 80mm height, and 80mm depth. Features a robust thermal magnetic trip mechanism for reliable circuit interruption.

Screw terminal type enables secure and easy wiring connections. Instantaneous break time ensures fast fault response to enhance electrical safety. Protection rating of IP20 and toggle switch reset actuator are included for user convenience.

Breaking capacity of 10 kA makes it suitable for industrial, commercial, and residential circuit protection.

This Eaton miniature circuit breaker combines compact design, robust safety features, and versatile electrical parameters to offer dependable protection in various electrical installations. Explore more Miniature Circuit Breakers and related electrical protection devices in our Electronics & Electricals category at EnvMart.
