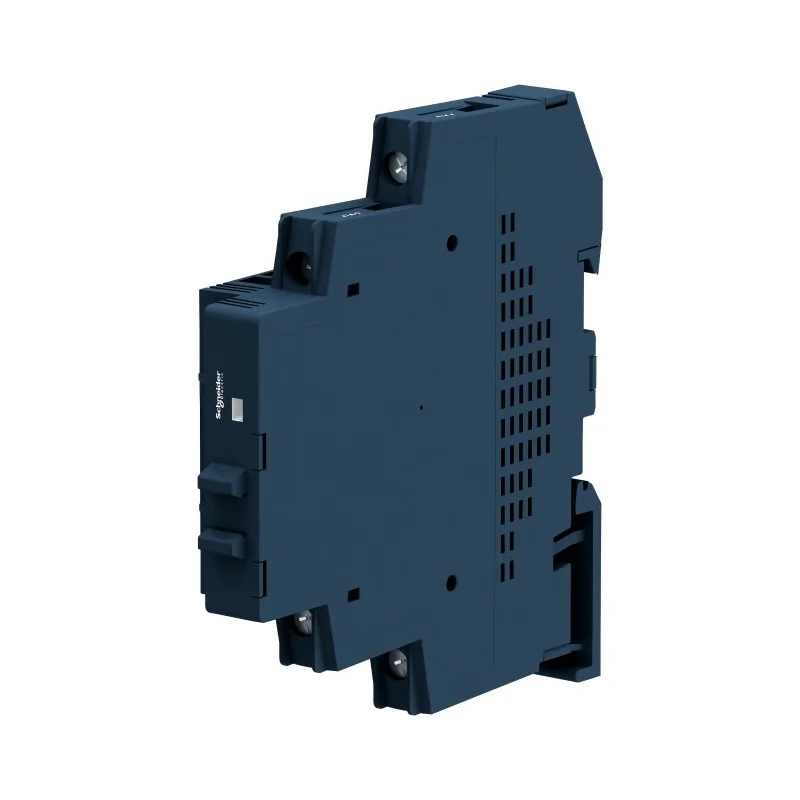

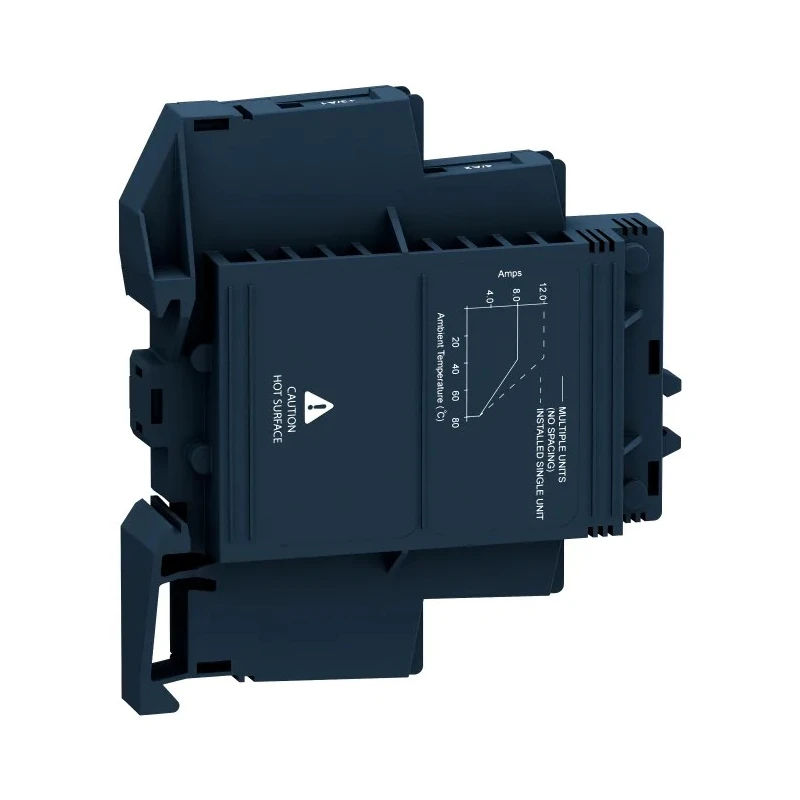

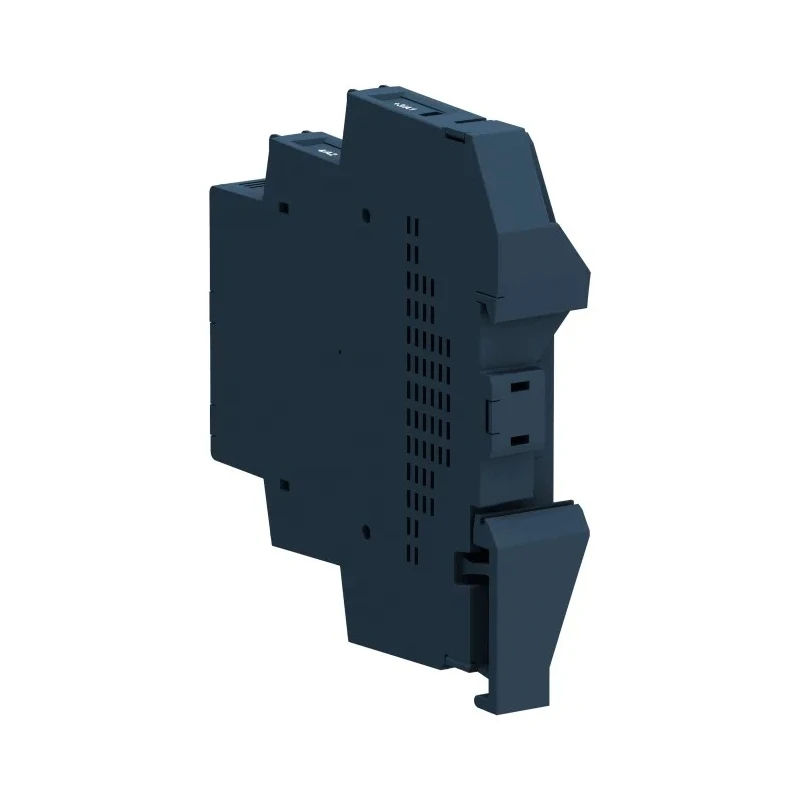

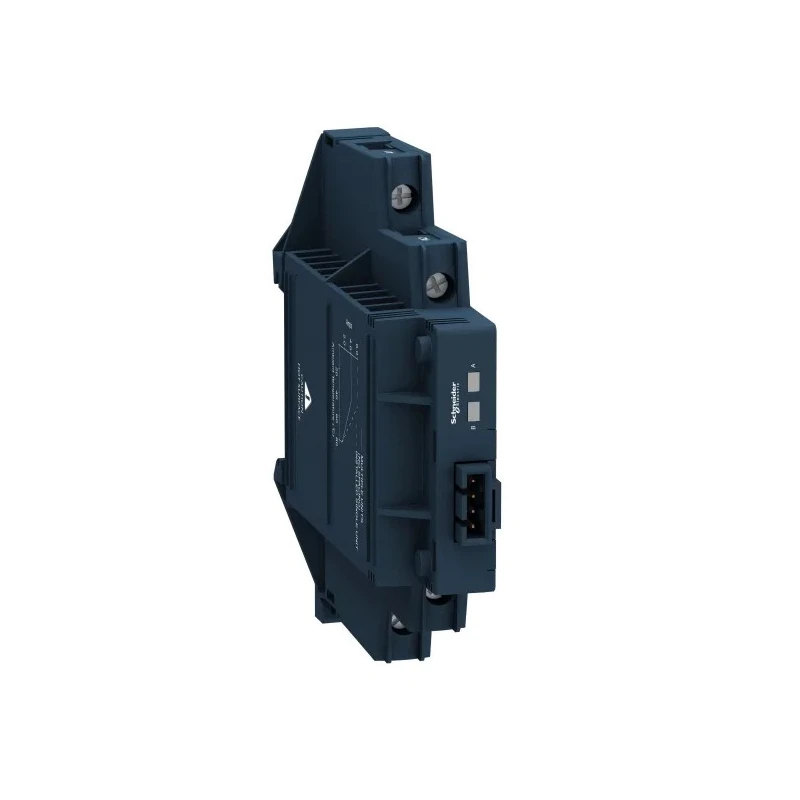

Schneider Electric Harmony Relay Series Solid State Relay 6 A Load DIN Rail Mount 600 V AC Load 32V DC Control SSM2A16BDR
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Schneider Electric |
| Height | 87.6mm |
| Length | 18.3mm |
| Model | SSM2A16BDR |
| IP Rating | IP20 |
| Width | 83.7mm |
| Mount Type | DIN Rail |
| Output type | SCR |
| Series | Harmony Relay |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 10pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Screw |
| Switching Function | Zero Cross |
| Maximum Load Current | 6A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 600V ac |
| Minimum Load Voltage | 48V ac |
| Minimum Control Voltage | 4V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 0.2mA |
Key Features
- Supports a maximum load voltage of 600 V AC for versatile usage.
- Operates with control voltages ranging from 4V to 32V DC.
- Designed for DIN rail mounting to optimize installation space.
- Features an SPST contact configuration with zero cross switching function.
- Incorporates a built-in heatsink for enhanced performance and durability.
- Equipped with a visual LED indicator for simplified troubleshooting and commissioning.
- IP20 rated housing suitable for protection against solid objects above 12mm.
- Wide temperature operability from -30°C to 80°C for harsh environments.
Product Description
Schneider Electric SSM2A16BDR Harmony Relay Series Solid State Relay is designed for industrial and automation control requiring reliable switching of inductive and resistive loads.
This Solid State Relay supports a maximum load current of 6 A and a load voltage range up to 600 V AC, controlled with DC input voltages from 4V to 32V. Its DIN rail mounting feature simplifies integration into electrical panels while saving space.
The relay uses an SPST contact configuration and includes a zero cross switching function to reduce electrical noise and stress during switching. The built-in heatsink improves thermal management for consistent long-term operation.
With IP20 protection and a wide operating temperature range from -30°C to 80°C, the SSM2A16BDR is capable of withstanding typical industrial and commercial environments. The compact size of 87.6mm height, 83.7mm width, and 18.3mm length allows for efficient installation.
This module uses a Silicon Controlled Rectifier output type which provides silent switching without mechanical wear, significantly increasing reliability and reducing maintenance requirements.
The clearly marked side schematic facilitates easy wiring and maintenance, while the LED status indicators enable quick diagnostics and commissioning. Supports up to 6A load current with 600V AC max load voltage. Operates with 4-32V DC control voltage ensuring compatibility with diverse control systems.
Rugged design with IP20 protection and operational temperature range from -30°C to 80°C. DIN rail mounting style with screw terminal connections for secure installation. Includes built-in heatsink and visual status LED for superior performance and troubleshooting.
This product is ideal for electrical automation, manufacturing processes, HVAC systems, and other industrial applications requiring stable, noise-free switching. Explore the extensive range of Schneider Electric products and industrial relays available on EnvMart for your automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This solid state relay supports a maximum load voltage of 600 V AC.
It operates with control voltages ranging from 4 V to 32 V DC.
The maximum load current supported by this relay is 6 A.
This model features an SPST contact configuration.
It has a wide operating temperature range from -30°C to 80°C.
This relay is designed for DIN rail mounting, facilitating easy installation in electrical panels.
Yes, it incorporates a built-in heatsink for enhanced thermal management and performance.
This model uses a Silicon Controlled Rectifier (SCR) output type, allowing for silent switching.
It has an IP20 rating, providing protection against solid objects larger than 12 mm.
The dimensions are 87.6 mm in height, 83.7 mm in width, and 18.3 mm in length.
It is suitable for electrical automation, manufacturing processes, HVAC systems, and other industrial applications requiring stable switching.
This model complies with RoHS standards.
