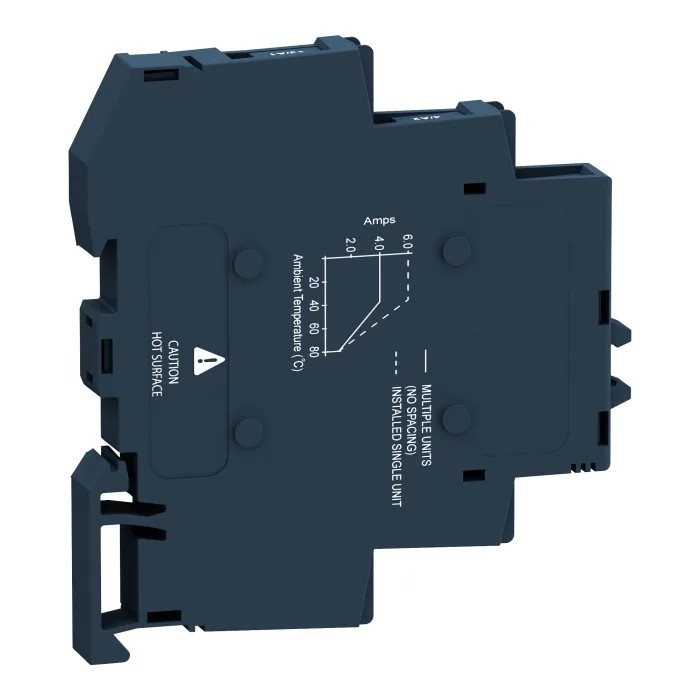

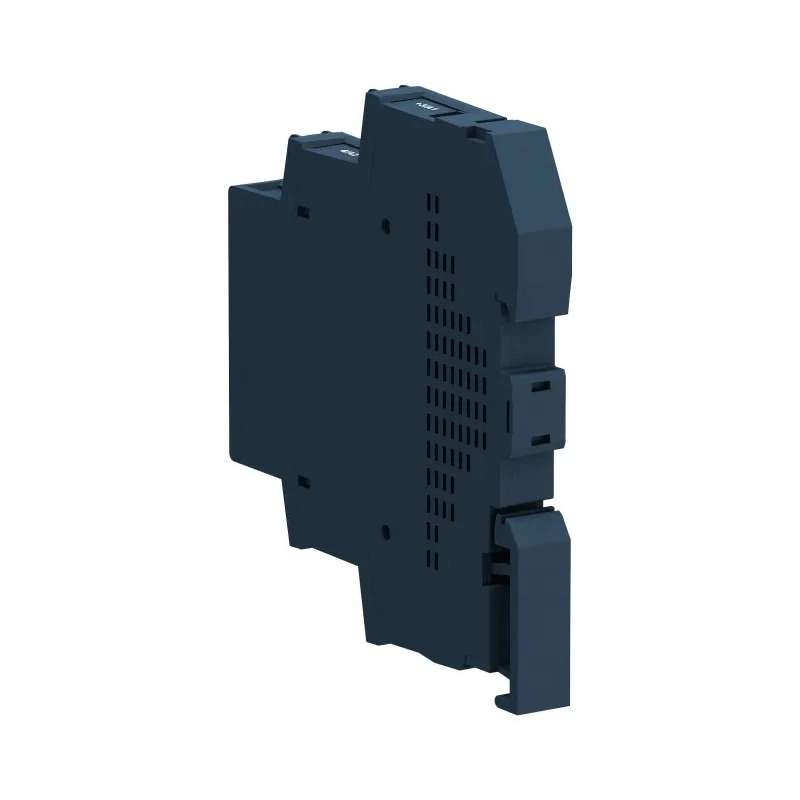

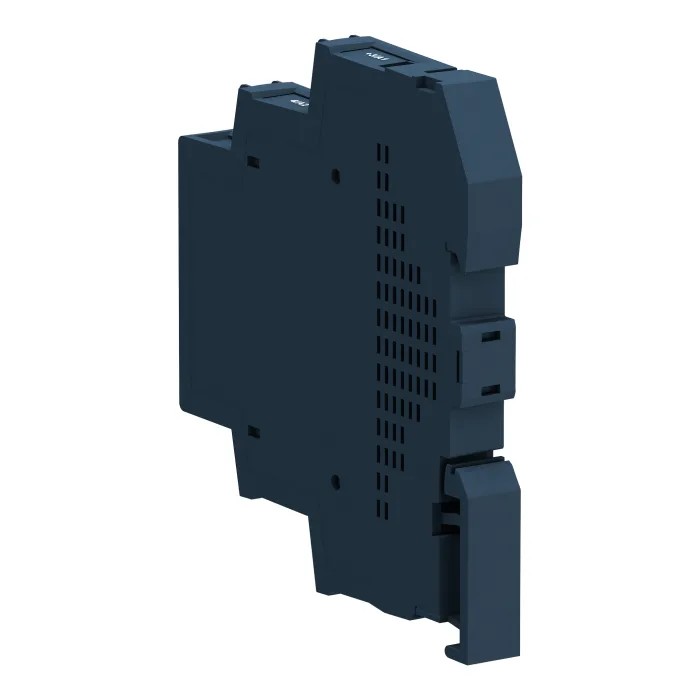

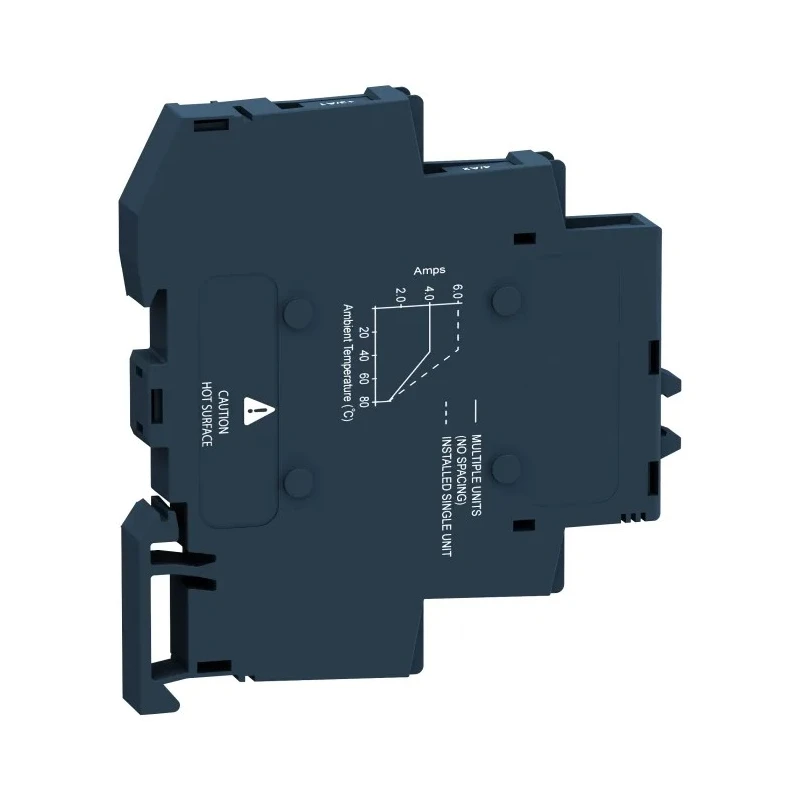

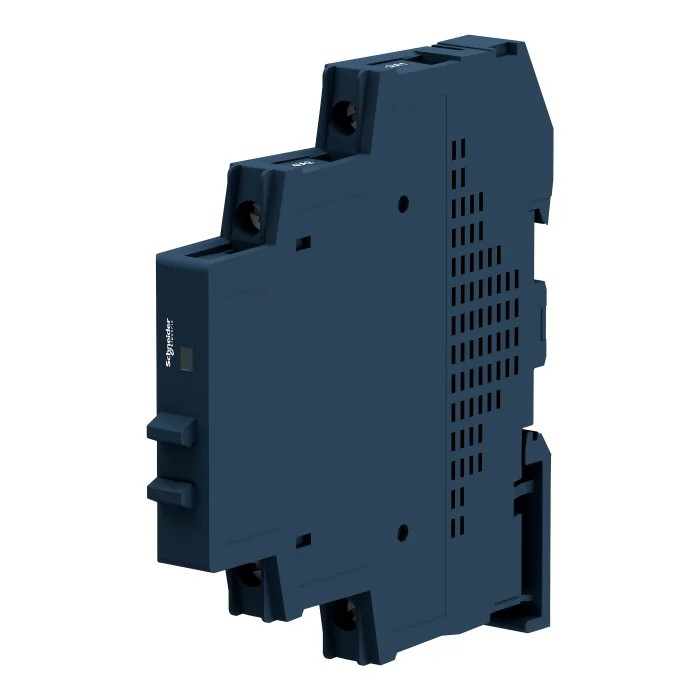

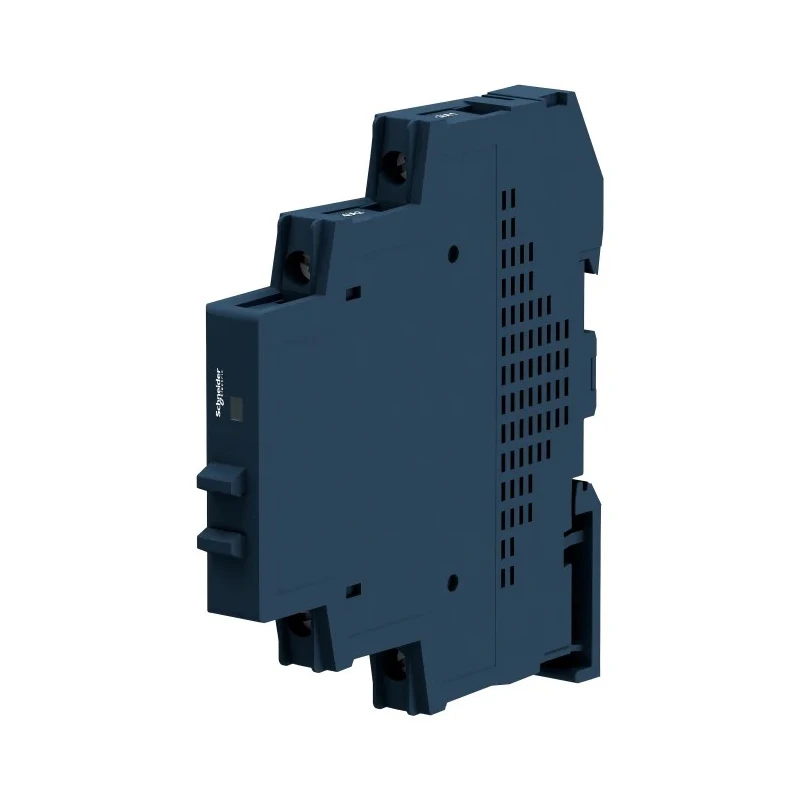

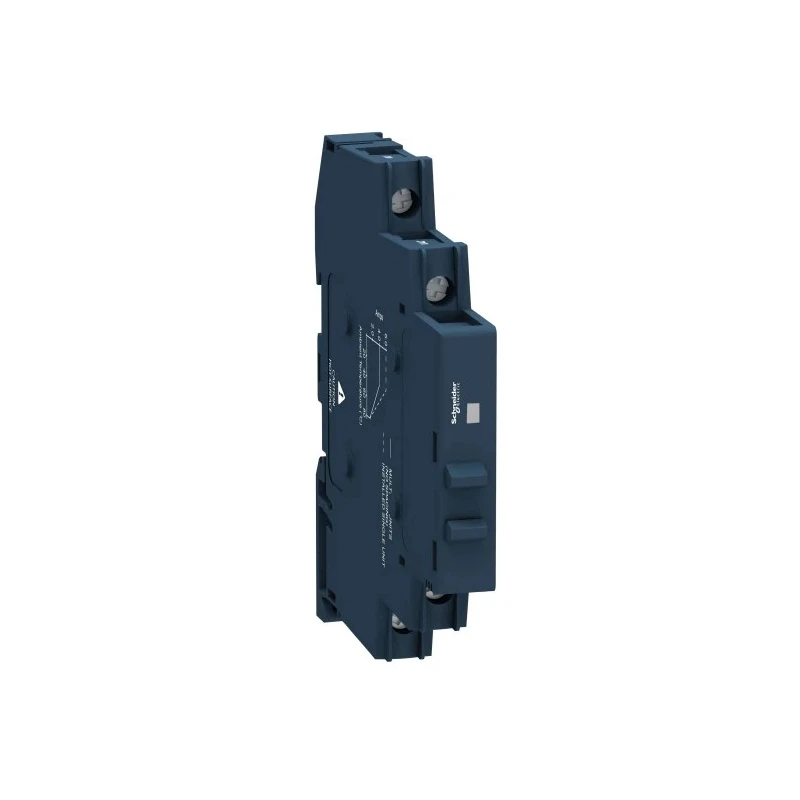

Schneider Electric Harmony Series Solid State Relay, 6 A Load, DIN Rail Mount, 100 V DC Load, 32 V DC Control SSM1D36BD

Schneider Electric SSM1D36BD Harmony Series Solid State Relay is designed for industrial, automation, and electrical signal conditioning applications requiring compact, durable, and high-performance switching devices. It supports a maximum load current of 6 A and load voltage up to 100 V DC, making it suitable for controlling DC loads efficiently.

This relay is mounted on DIN rails for straightforward integration into distribution boards and control cabinets. Its modular IP20 housing includes a built-in heatsink, optimizing operating conditions and ensuring long product life. The relay is designed to endure harsh industrial environments, resisting shock, vibration, and contamination.

Operational temperature range from -30°C to 80°C allows usage in different ambient conditions. Screw terminals provide easy and secure wiring. The single-pole single-throw (SPST) contact configuration is ideal for common switching needs. The off-state leakage current is as low as 0.1 mA, further enhancing energy efficiency in control circuits.

The relay employs low capacitance of 10 pF and supports a control voltage range from 4 V to 32 V DC, allowing compatibility with diverse control signals. This product is RoHS compliant and manufactured in Mexico to high-quality standards.

Applications include use in automation systems, manufacturing processes, electrical panels, and industrial control systems where compact DIN rail mounting Solid State Relays are preferred for silent and maintenance-free operation.

Supports maximum load current of 6 A for efficient switching operation. Mountable on standard DIN rail for easy installation in control panels. Capable of handling up to 100 V DC load voltage ensuring versatile usage. Control voltage range from 4 V to 32 V DC providing design flexibility.

SPST contact configuration for single-pole single-throw control. Features IP20 protection class ensuring safe operation in industrial environments. Operates within temperature range from -30°C to 80°C for reliability in harsh conditions.

Equipped with screw terminals for secure electrical connections. Compact dimensions with height 87.7mm, width 83.7mm, length 11.02mm enabling space-saving installation. Off state leakage current is minimal at 0.1 mA enhancing energy efficiency.
