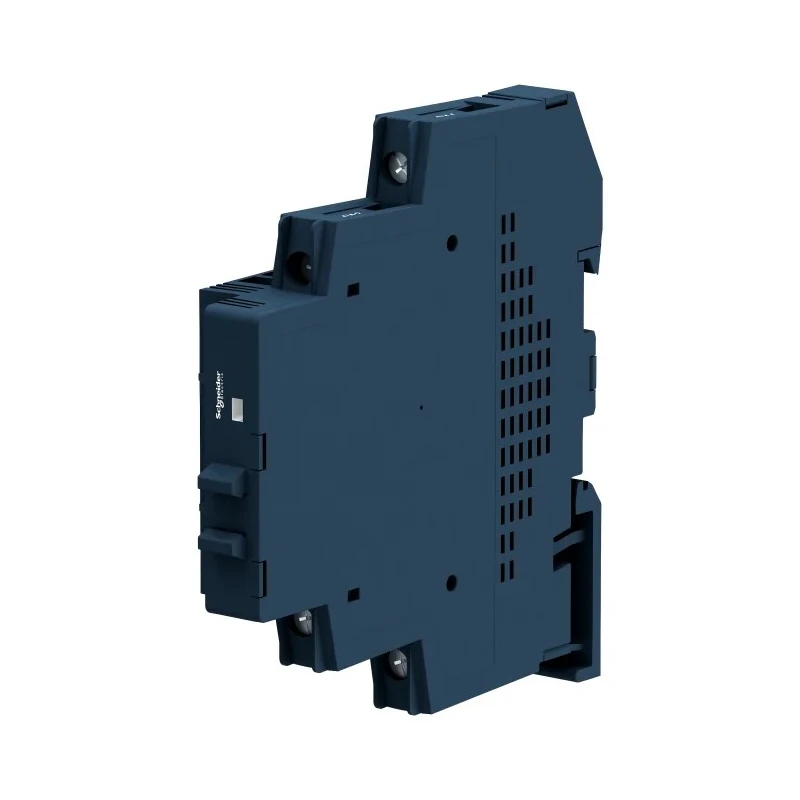

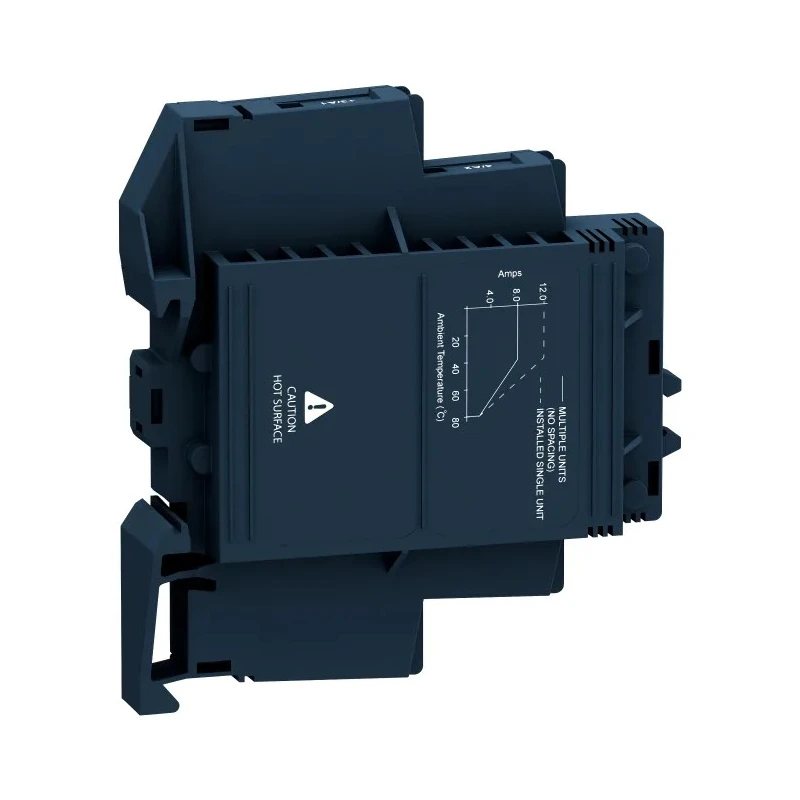

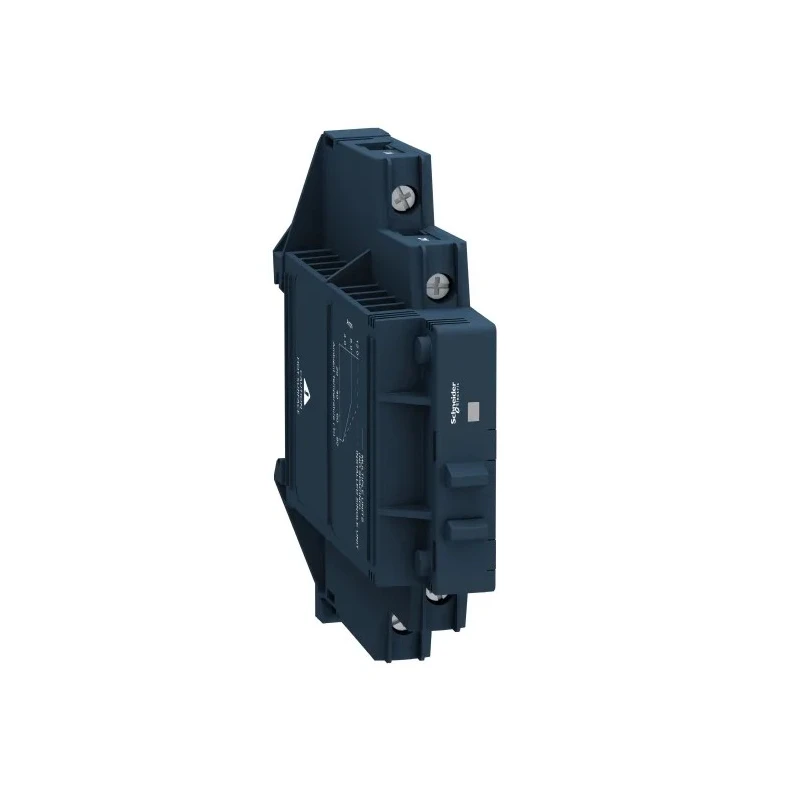

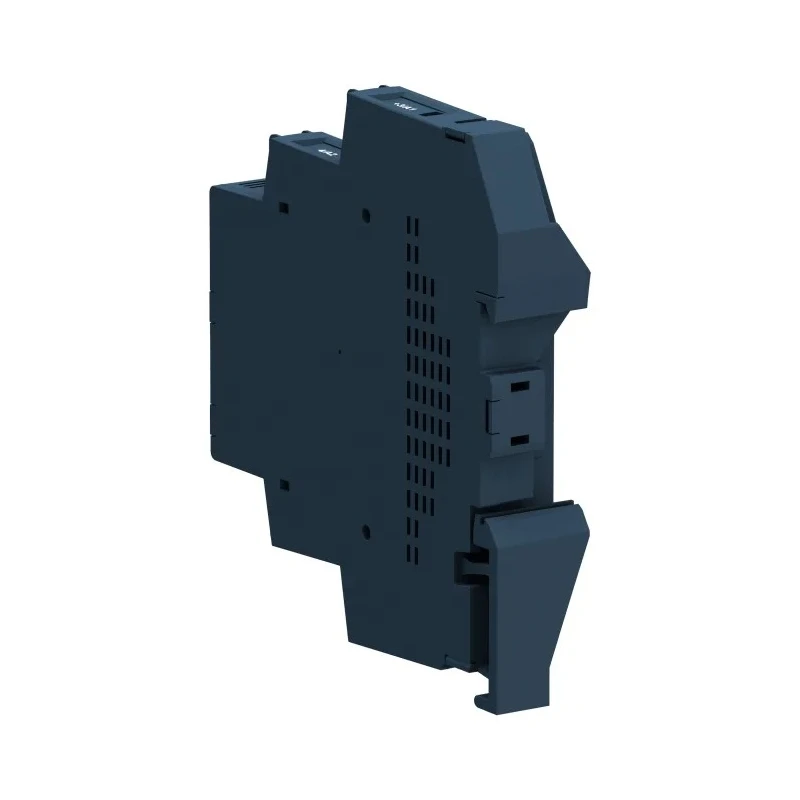

Schneider Electric Harmony Relay Series Solid State Relay, 12 A Load, DIN Rail Mount, 280 V AC Load, 32 V DC SSM1A112BDR

Schneider Electric SSM1A112BDR Solid State Relay offers a reliable and efficient solution for AC load switching applications in industrial and automation environments. Rated for a maximum load current of 12A and capable of handling load voltages from 24V to 280V AC with random switching, it is ideal for controlling inductive loads silently and without mechanical wear.

This relay is designed for DIN rail mounting with a modular IP20 housing and features an integrated heatsink to ensure optimal thermal management, enhancing device longevity and performance. The screw terminal design allows secure and stable electrical connections, facilitating ease of installation and maintenance.

With a control voltage range from 4V to 32V DC and a visual indicator for input status, operators can efficiently monitor device conditions. Its compact dimensions of Height 87.7 mm, Length 18.3 mm, and Width 83.69 mm allow space-efficient integration within control panels.

Additional specifications include a low off state leakage current of 0.1 mA, capacitance of 10 pF, and an SCR output type, enabling reliable switching. The relay operates comfortably within a broad temperature range from -30°C up to 80°C, ensuring suitability across various industrial applications.

Manufactured in Mexico under strict RoHS standards, this relay complies with environmental regulations, providing a sustainable choice for industrial electrical control systems. Modular DIN rail mount solid state relay designed for inductive load control.

12A maximum load current with load voltage range from 24V to 280V AC. Control voltage input from 4V to 32V DC with visual status indicator. Integrated heatsink for thermal efficiency and longevity. IP20 protection rating and screw terminal connections.

RoHS compliant product suitable for industrial automation use. Compact dimensions facilitate panel space optimization. Low leakage current and high switching frequency capability. Robust operation in temperatures ranging from -30°C to 80°C.

SCR output type ensuring silent and reliable switching.
