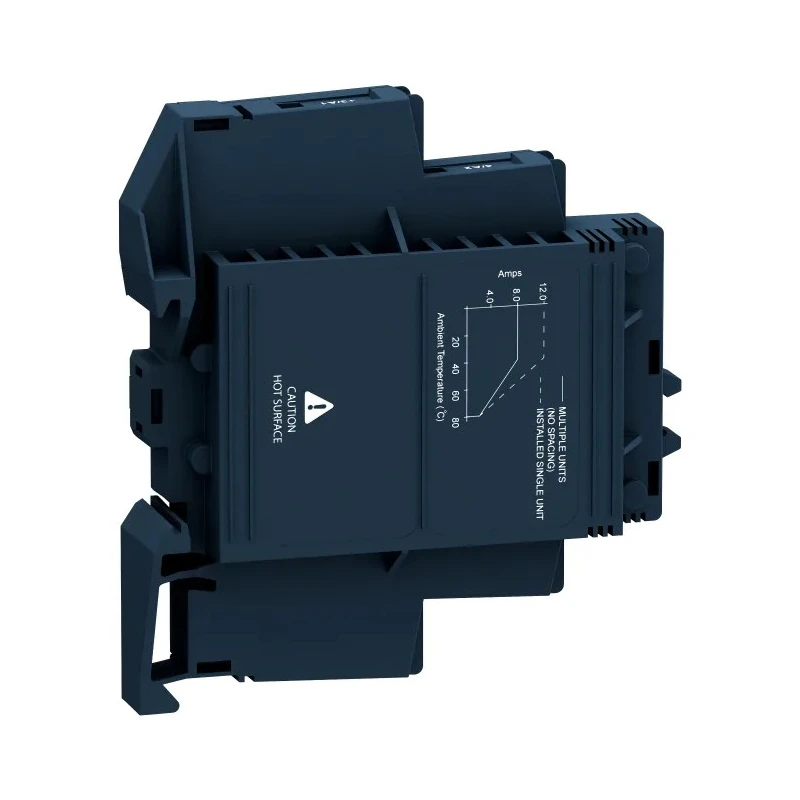

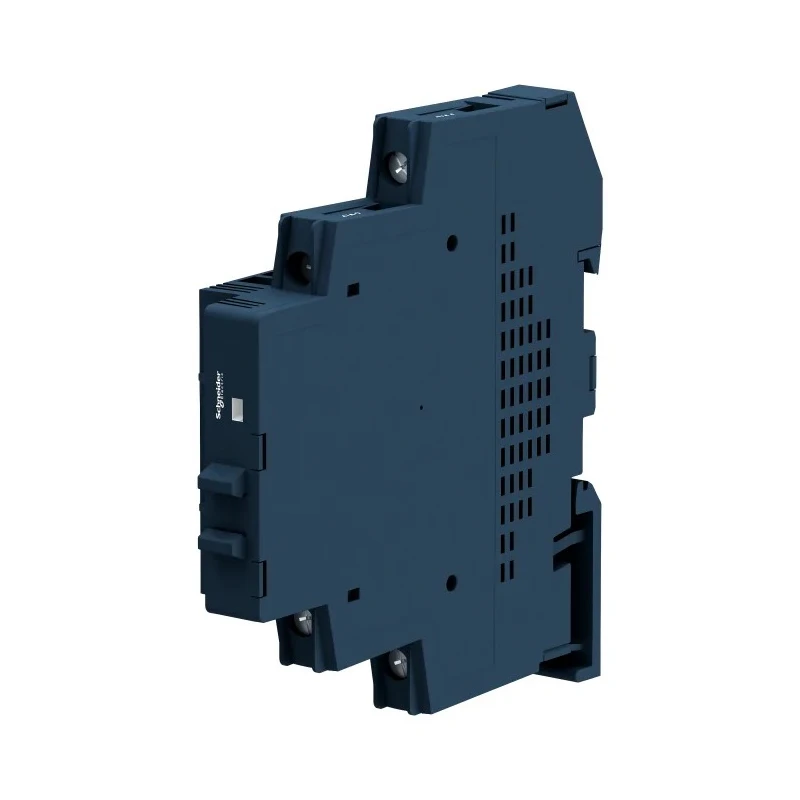

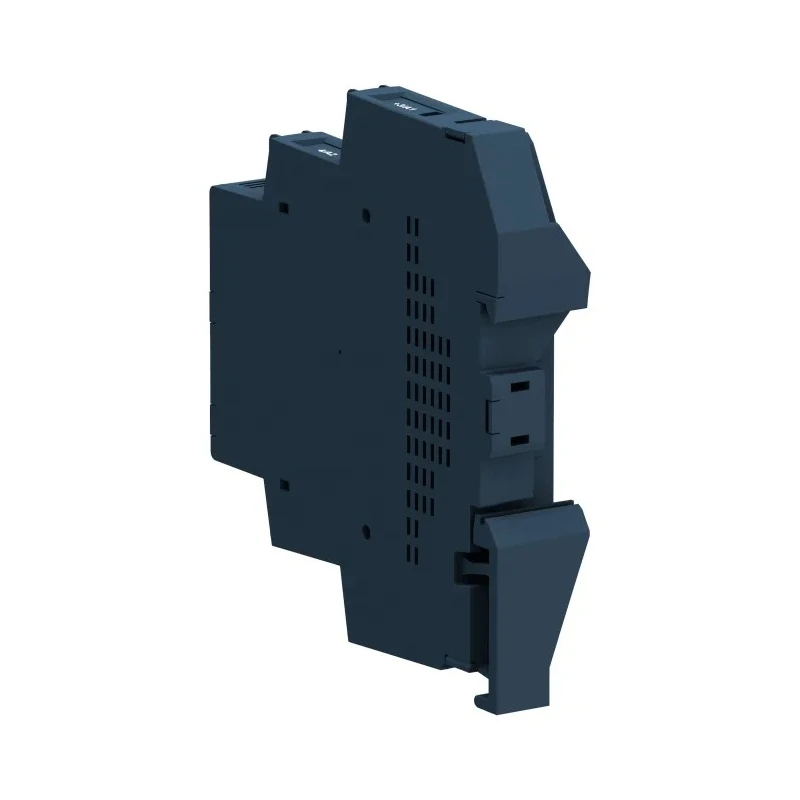

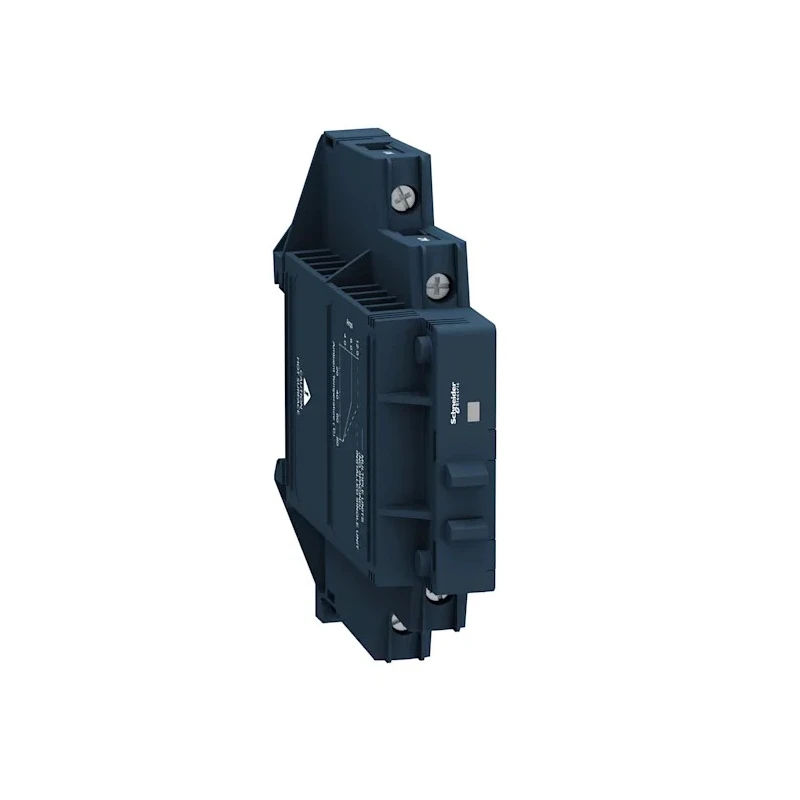

Schneider Electric Harmony Relay Series Solid State Relay 12A Load DIN Rail Mount 280V AC Load 265V AC Control SSM1A112P7
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Schneider Electric |
| Height | 87.7mm |
| Length | 18.3mm |
| Model | SSM1A112P7 |
| IP Rating | IP20 |
| Width | 83.69mm |
| Mount Type | DIN Rail |
| Output type | SCR |
| Series | Harmony Relay |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 10pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Screw |
| Switching Function | AC |
| Maximum Load Current | 12A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 280V ac |
| Minimum Load Voltage | 24V ac |
| Minimum Control Voltage | 200V ac |
| Maximum Control Voltage | 265V ac |
| Off State Leakage Current | 0.1mA |
Key Features
- Compact modular design with built-in heatsink for improved thermal performance.
- Zero voltage switching ideal for resistive load applications.
- Visual LED indicator for input status monitoring.
- High switching frequency with resistance to shock and vibration.
- Silent operation with no mechanical contacts, ensuring long life.
- Screw terminal type for secure and easy wiring connections.
- IP20 enclosure rating suitable for indoor industrial environments.
- Wide operating temperature range from -30°C to 80°C.
Product Description
Schneider Electric SSM1A112P7 is a Harmony Relay Series solid state relay designed for reliable control of AC loads up to 12 amps with a load voltage range of 24V to 280V AC and control voltage from 200V to 265V AC. Its DIN rail mount configuration facilitates easy integration in industrial automation panels.
This relay features zero voltage switching, making it suitable for resistive loads by minimizing electrical noise and extending equipment lifetime. The built-in heatsink optimizes thermal management, reducing the need for additional cooling components.
The device operates silently without moving contacts, which significantly enhances reliability and durability in demanding electrical and industrial applications. A clear LED input indicator provides visual feedback on relay status for easy troubleshooting and maintenance.
The modular IP20 housing offers protection against solid objects, while the screw terminal design ensures robust electrical connections. Designed to withstand vibrations and shocks, this relay is suited for automation, electrical control systems, manufacturing, and HVAC applications requiring precise load switching.
Compact modular design with built-in heatsink for improved thermal performance. Zero voltage switching ideal for resistive load applications. Visual LED indicator for input status monitoring. High switching frequency with resistance to shock and vibration.
Silent operation with no mechanical contacts, ensuring long life. Screw terminal type for secure and easy wiring connections. IP20 enclosure rating suitable for indoor industrial environments. Wide operating temperature range from -30°C to 80°C.
Complies with RoHS standards for environmental safety.
This Solid State Relay is manufactured in Mexico, ensuring high quality and performance standards. It is an excellent choice for industrial automation, electrical control panels, and other commercial applications requiring efficient and safe load switching solutions.
Explore the range of Schneider Electric automation products on EnvMart for comprehensive industrial control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this relay is 12A.
This model operates within a temperature range of -30°C to 80°C.
It is designed for DIN rail mounting, facilitating easy integration into industrial panels.
The relay has an IP20 enclosure rating, suitable for indoor industrial environments.
The minimum load voltage is 24V AC, and the maximum load voltage is 280V AC.
It accepts a control voltage range from 200V AC to 265V AC.
This model provides an SCR output type.
Yes, it includes a visual LED indicator for input status monitoring.
The contact configuration is SPST (Single Pole Single Throw).
The dimensions are 87.7mm in height, 18.3mm in length, and 83.69mm in width.
It uses a screw terminal type for secure and easy wiring connections.
Yes, it complies with RoHS standards for environmental safety.
