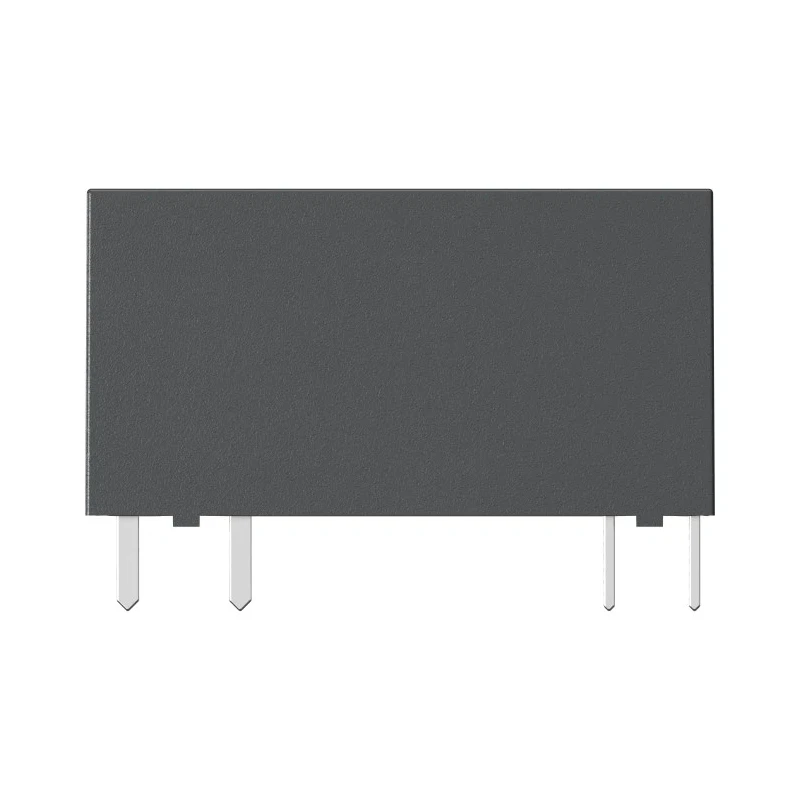

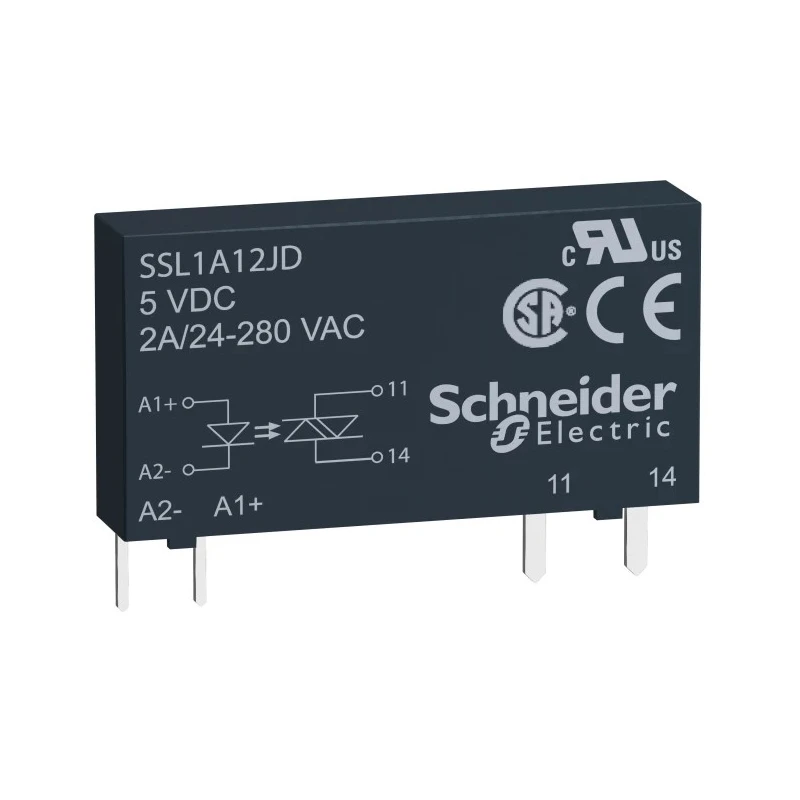

Schneider Electric Harmony Relay Series Solid State Relay 2A Load 280V AC Load 12V DC Control SSL1A12JD
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Schneider Electric |
| Height | 15mm |
| Length | 28mm |
| Model | SSL1A12JD |
| Width | 5mm |
| Output type | SCR |
| Series | Harmony Relay |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 1.5pF |
| Minimum Operating Temperature | -20°C |
| Terminal type | PCB Terminal |
| Switching Function | Zero Voltage Switching |
| Maximum Load Current | 2A |
| Standards/Approvals | CSA, UL, CE |
| Maximum Load Voltage | 280V ac |
| Minimum Load Voltage | 24V ac |
| Minimum Control Voltage | 3V dc |
| Maximum Control Voltage | 12V dc |
| Off State Leakage Current | 4mA |
Key Features
- Compact and slim plug-in relay with 6mm width including socket saves space in control cabinets.
- Rated load voltage range from 24V to 280V AC with zero voltage switching for efficient load control.
- Operates silently with long life due to absence of moving contacts, ideal for industrial control.
- Shock, vibration, and pollution resistant with IP67 rating, suitable for harsh industrial environments.
- PCB terminal type with SPST contact configuration for simple integration into circuits.
- Controls resistive loads reliably with SCR output type, supporting high switching frequency.
- Operating temperature range from -20°C to 80°C ensuring durability in varied conditions.
- Certified to CSA, UL, and CE standards assuring quality and safety compliance.
Product Description
Schneider Electric SSL1A12JD Harmony Relay Series Solid State Relay is engineered for robust load switching and control in industrial applications. This solid state relay features a maximum load current of 2A and a maximum load voltage of 280V AC, while being controlled through a DC input voltage ranging from 3V to 12V. Its zero voltage switching function ensures minimal electrical noise, making it suitable for resistive load applications.
The relay's compact dimensions (15mm height, 28mm length, and 5mm width) contribute to space savings in dense control panel layouts. The PCB terminal design allows direct mounting on printed circuit boards, facilitating easy installation. This slim relay is part of the Harmony Relay series, guaranteeing reliable operation in challenging environments due to its IP67 rating that protects against dust, vibrations, and shock.
Featuring a single-pole single-throw (SPST) contact configuration and SCR output type, the SSL1A12JD is optimized for silent, maintenance-free operation with a long lifecycle. It operates within a wide temperature range of -20°C to 80°C, making it well-suited for various industrial, manufacturing, automation, and electrical control system applications.
Certifications including CSA, UL, and CE demonstrate that this relay meets stringent safety and quality standards. Manufactured in Mexico, the product embodies Schneider Electric's commitment to innovation and quality in electrical automation components.
Compact 6mm width plug-in solid state relay for space efficiency. Zero voltage switching function reduces electrical noise. High resistance to shock, vibration, and dust with IP67 protection. Long life span with maintenance-free operation due to no moving parts.
Supports resistive load control with 2A maximum current rating. PCB terminal with SPST contact configuration for easy circuit integration. Wide operating temperature range from -20°C to 80°C. Certified to CSA, UL, and CE standards for safety and reliability.
This Schneider Electric SSL1A12JD Solid State Relay is ideal for applications in industrial automation, manufacturing plants, HVAC systems, and electrical control equipment requiring reliable, silent operation with compact footprint. Browse more relay options from Schneider Electric in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 2A.
It supports a load voltage range from 24V to 280V AC.
This relay requires a control voltage ranging from 3V to 12V DC.
It features a single-pole single-throw (SPST) contact configuration.
The operating temperature range is from -20°C to 80°C.
The dimensions of this relay are 15mm in height, 28mm in length, and 5mm in width.
It uses an SCR output type for load control.
Yes, it has an IP67 rating, making it resistant to dust, shock, and vibration, suitable for harsh industrial environments.
It is certified to CSA, UL, and CE standards, ensuring safety and quality compliance.
It features a zero voltage switching function, which helps to minimize electrical noise during operation.
It has a PCB terminal type, allowing for direct mounting on printed circuit boards for easy installation.
This relay is suitable for various industrial applications, including automation, manufacturing, HVAC systems, and electrical control equipment.
