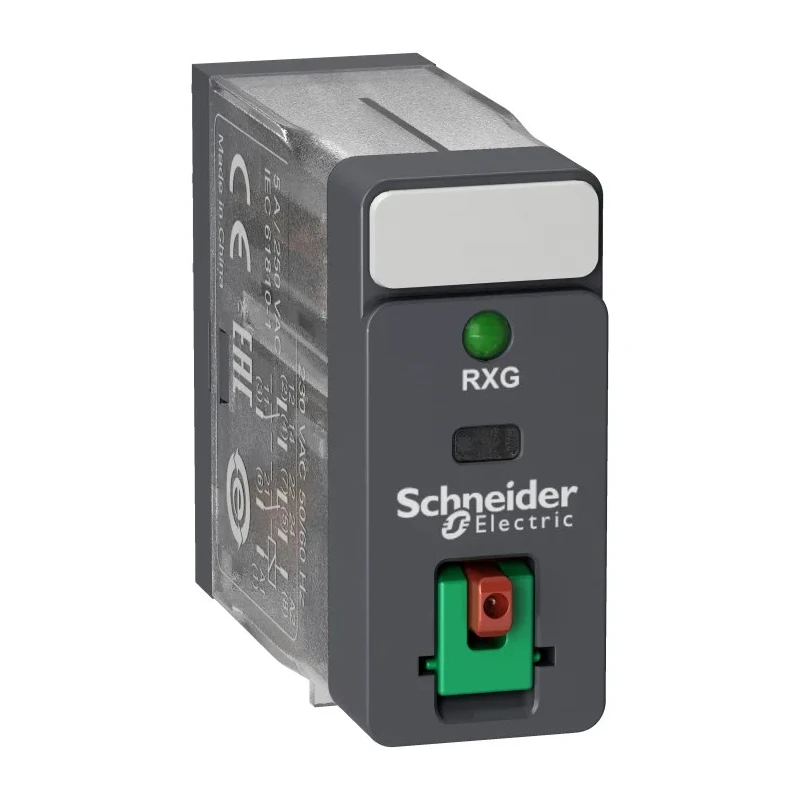

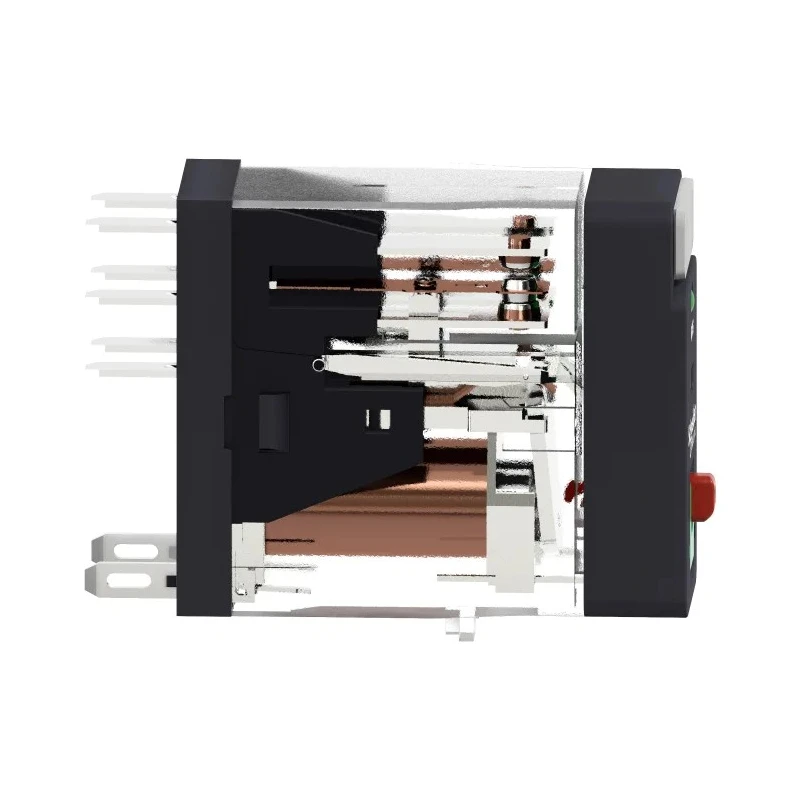

Schneider Electric Power Relay 48V AC Coil 5A Switching Current 2 CO Harmony Relay RXG RXG22E7

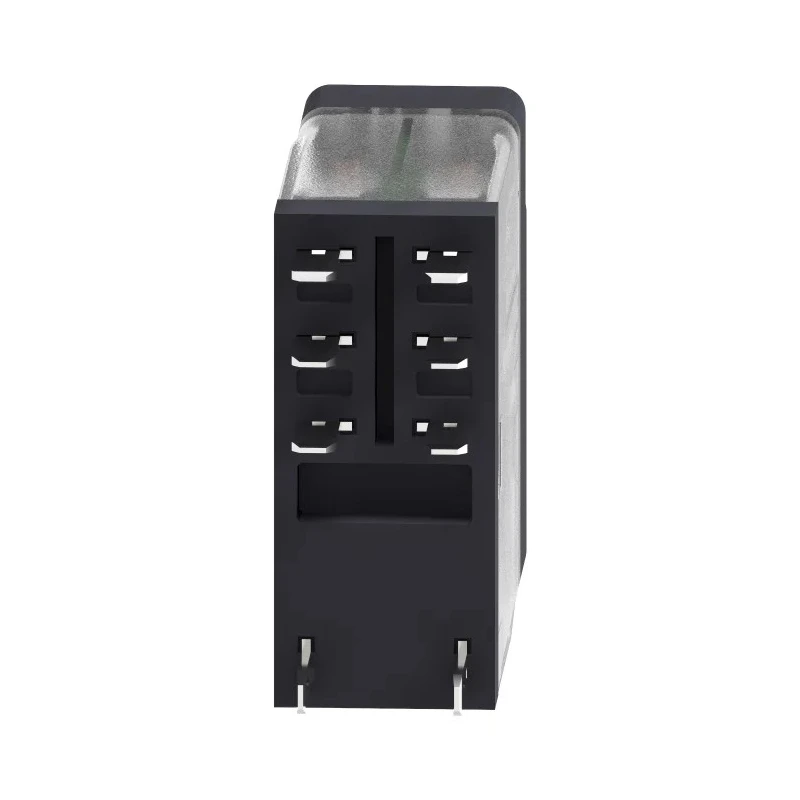

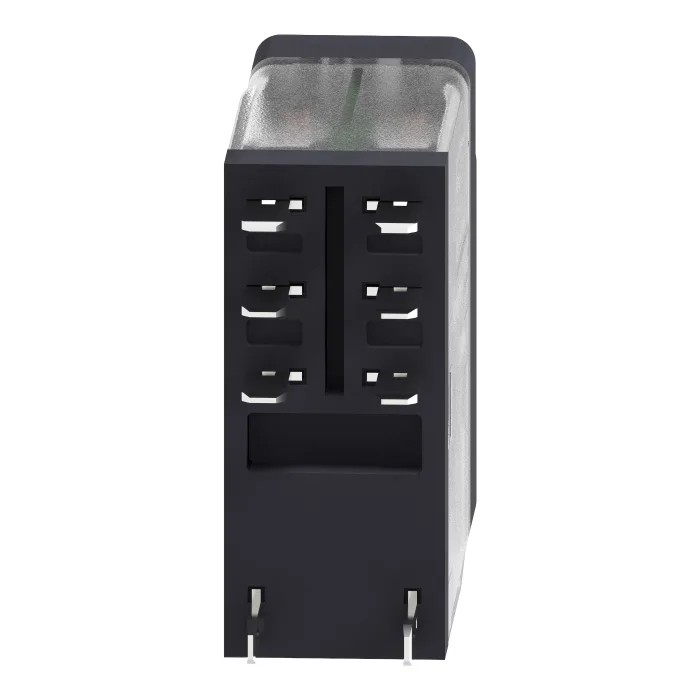

Schneider Electric RXG22E7 Power Relay features a 48V AC coil and 2 changeover contacts (DPDT) rated at 5A switching current, providing reliable performance for electrical and automation systems. This Harmony Relay RXG series device offers compact design and space-saving benefits with dimensions of 13 mm length, 37.1 mm width, and 30.6 mm height. Its plug-in terminal type ensures quick mounting and secure connections for PLC interface and control applications.

Built with silver alloy contact material and a contact resistance of 100 mΩ, the RXG22E7 relay ensures efficient electrical conduction and signal integrity. Operating temperature range from -40°C to 70°C suits harsh industrial environments, and the coil power consumption is 820 mW with a coil resistance of 1.1 kΩ. It supports switching AC voltage up to 250V and DC voltage up to 30V, making it versatile for various system requirements.

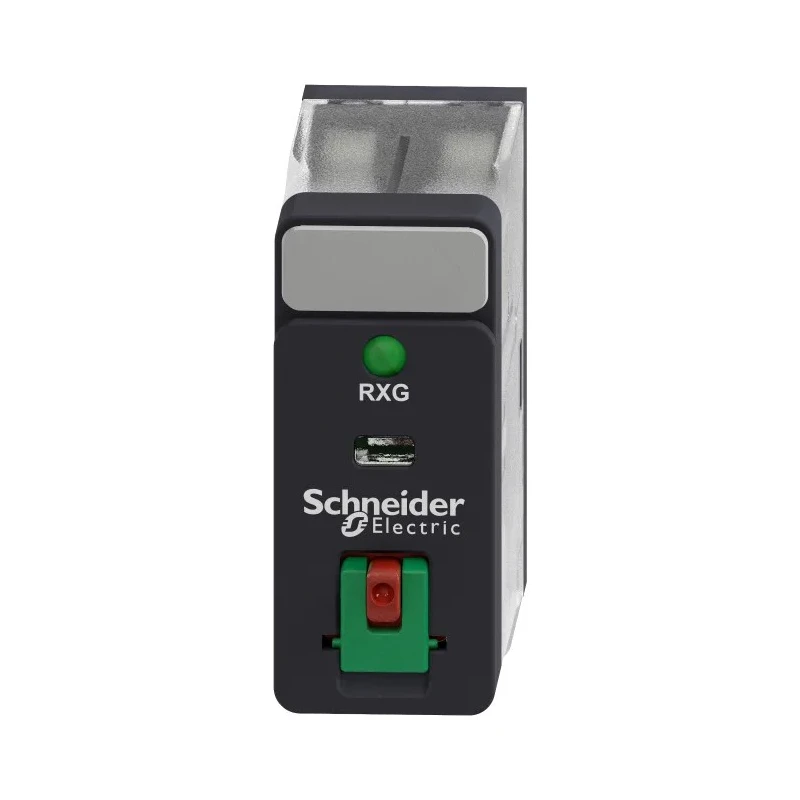

The relay includes user-friendly features such as a lockable test button and LED indicator for clear status display day or night. Certified to CSA and CE standards, this product guarantees compliance with safety and quality norms. Originating from China, the relay is designed for disassembly, contributing to sustainable practices.

This RXG22E7 model is widely used in industrial, electrical automation, PLC interface, manufacturing, and control systems for enhancing machine reliability and reducing enclosure sizes. It supports hard-wired logic automated systems and complements programmable logic controllers effectively.

Operates with 48V AC coil voltage and 5A switching current. Double pole double throw contact configuration (2 CO) for versatile control. Compact plug-in terminal design supports easy installation. Lockable test button and LED indicator for operational monitoring.

Meets CSA and CE approvals ensuring safety and quality standards. Designed for industrial automation, electrical, manufacturing, and PLC interface use cases. Explore more industrial relays and power control devices in the Electronics & Electricals > Relays & Contactors category on EnvMart for optimized electrical system solutions.
