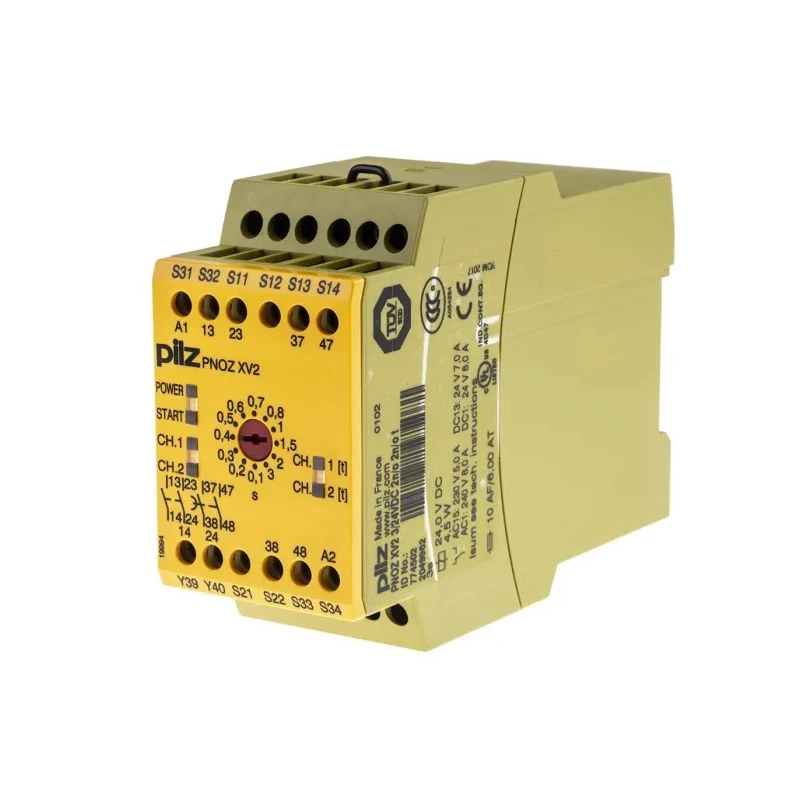

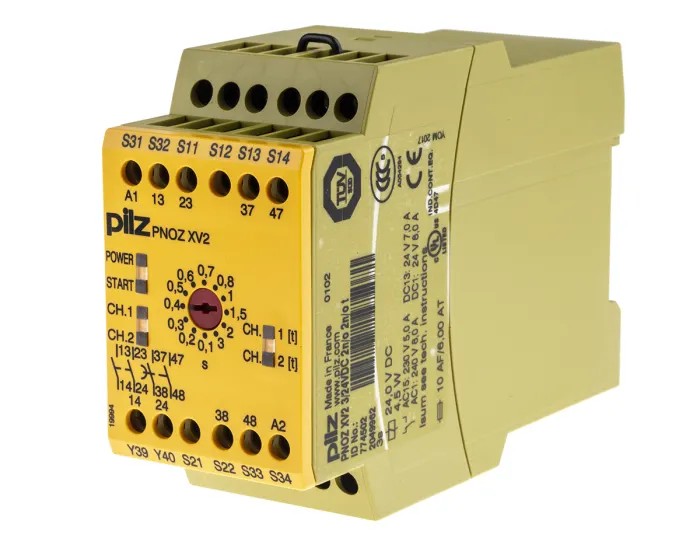

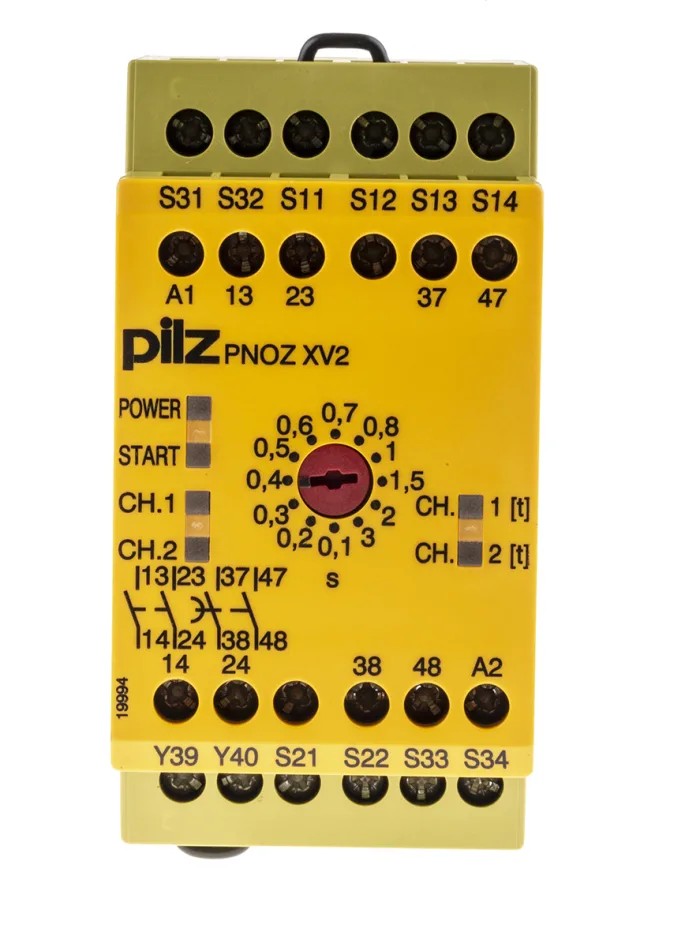

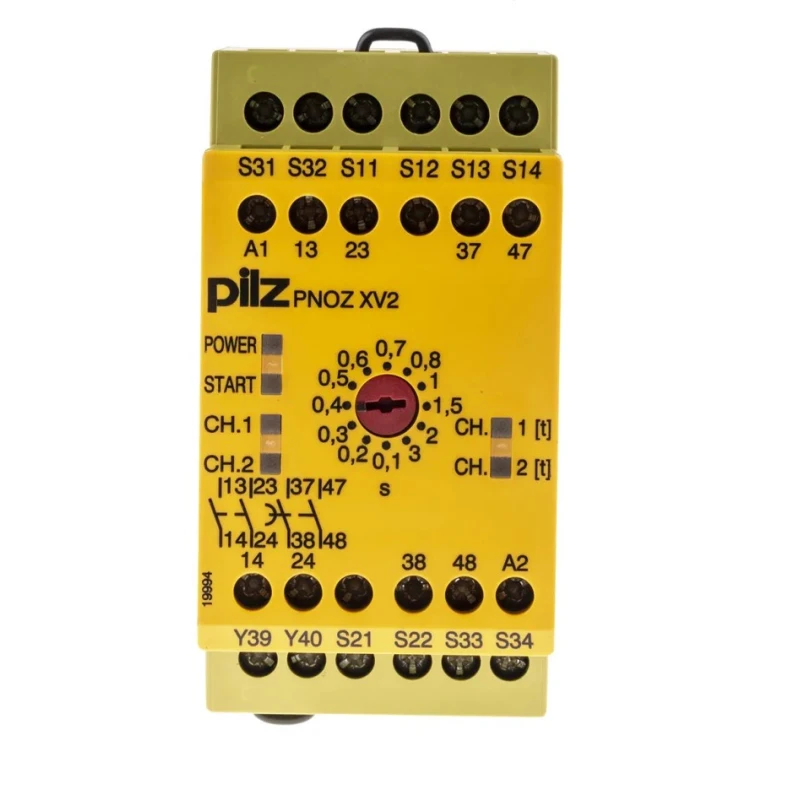

Pilz PNOZ XV2 24V DC Safety Relay with 2 Safety Contacts and 2 Auxiliary Contacts 4.5W Power Consumption 121mm Height 774502

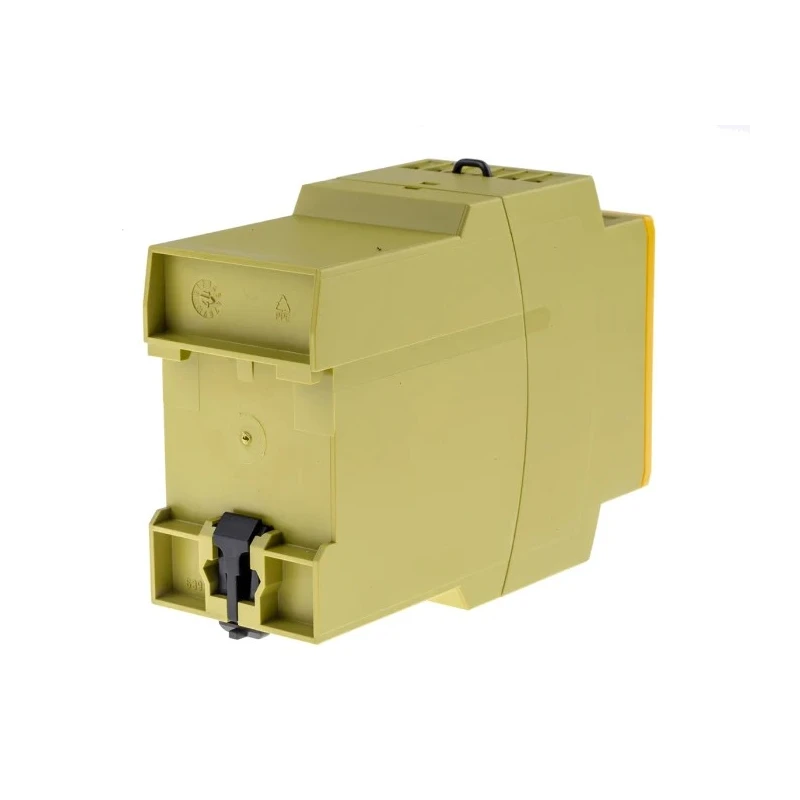

Pilz 774502 Safety Relay PNOZ XV2 24V DC features a robust design with 2 safety contacts and 2 auxiliary contacts, delivering reliable safety performance in industrial and automation settings. This relay is DIN rail mounted with screw terminal connections, ensuring quick and secure installation.

The device supports both automatic and manual reset methods and includes LED indicators for operating voltage and switching positions, enhancing diagnostic capabilities. The relay integrates connections for safety limit switches, emergency stop buttons, and reset functions, making it suitable for numerous safety-critical applications.

Its redundant circuit topology with self-monitoring guarantees the safety function remains active even if a component failure occurs. Each on-off cycle automatically tests the correct opening and closing of the safety function relays to ensure maximum operational safety.

This Pilz safety relay complies with key international standards including EN 60204-1, EN 62061, EN ISO 13849-1, and EN 60947-5-1, and holds approvals from CE, cULus Listed, TÜV, KOSHA, and CCC. It operates efficiently over a temperature range of -10°C to 55°C, making it suitable for various industrial environments.

The device's compact dimensions are 121mm height, 87mm length, and 45mm width, while consuming just 4.5W of power. Additionally, its IP20 rating protects it against solid objects, making it ideal for indoor control cabinet applications.

Equipped with 2 instantaneous delay-on re-energised safety contacts. Automatic and manual reset capabilities for versatile operation. DIN rail mounting with screw terminal connections. Built-in LED indicators for diagnostics and monitoring.

Compatible with E-STOP pushbuttons, safety gate limit switches, and reset buttons. Redundant circuit design with automatic safety function tests. Meets stringent international safety standards and certifications. Compact size supports space-saving panel designs.

Operates within -10°C to 55°C ambient conditions. Low power consumption at 4.5W for energy efficiency.

This Safety Relay is well-suited for industrial automation, manufacturing, and machinery safety systems requiring reliable safety switching with comprehensive diagnostic features. Explore EnvMart for complete Pilz automation solutions and compatible accessories for your safety control needs.
