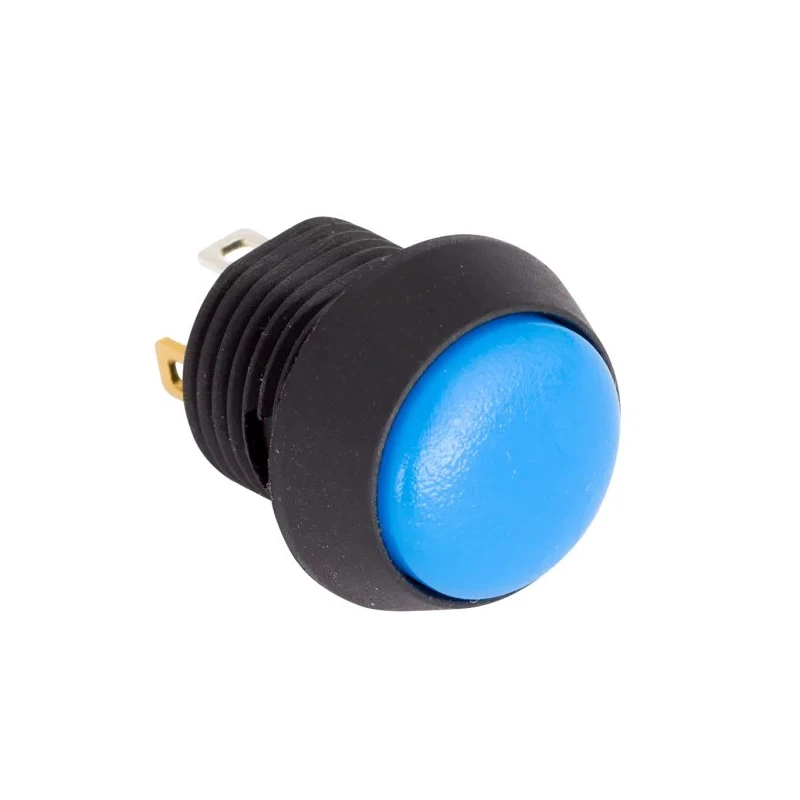

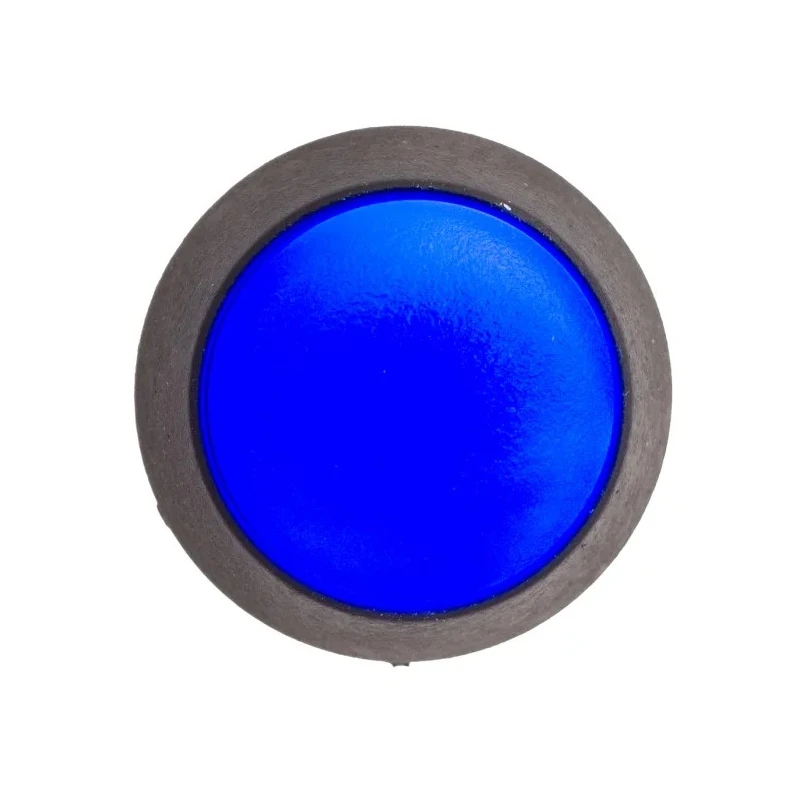

EOZ FL Series Illuminated Push Button Switch, Momentary, Panel Mount, 13.5 mm Cutout, SPST, Blue LED, IP67, 2.5 kV ac FL13LB5
Specifications
| Country of Origin | France |
|---|---|
| Brand | EOZ |
| Operating Temperature Range | -40 to +85°C |
| Model | FL13LB5 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Panel Thickness | 1 mm to 6 mm |
| Ingress Protection | IP67 |
| Series | FL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | 1 NO |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 13.5 mm |
| Terminal type | Plug-In |
| Standards/Approvals | RoHS |
| LED Colour | Blue |
| Switch Operation | Momentary |
| Actuator Colour | Blue |
| Actuator Style | Cap |
| Switch Contact Current | 65mA |
| Contact AC Voltage | 2.5kV ac |
| Contact terminals | Gold plated nickel |
| LED terminals | Silver plated nickel |
Key Features
- The switch offers vandal-resistant design with full face illumination from pre-installed 5 V blue LEDs.
- Panel cutout size of 13.5 mm supports standard installation dimensions.
- Momentary switch operation with SPST contact for simple ON/OFF control.
- Cap-style actuator with blue LED, providing clear status indication.
- IP67 rating ensures complete protection against dust and water ingress.
- Operating temperature range from -40°C to +85°C supports demanding environments.
- Contact terminals are gold plated nickel for enhanced conductivity and corrosion resistance.
- LED terminals have silver plated nickel for durability and reliable illumination.
Product Description
EOZ FL13LB5 FL Series Illuminated Push Button Switch is designed for reliable operation in industrial, automation, and electrical applications. It is a momentary switch with a panel mounting type, featuring a 13.5 mm panel cutout size suitable for standardized installations.
This push button switch includes a blue LED illumination that fully lights the front cap, enhancing visibility and user interface feedback, especially in low-light or control panel environments. Its SPST contact configuration offers simple ON/OFF switching capability.
The switch is rated IP67 for ingress protection, making it dust-tight and protected against water immersion. This rating, together with its vandal-resistant design and gold plated nickel contact terminals, ensures long-lasting performance and resistance to harsh conditions.
Operating temperature ranges from -40°C to +85°C, allowing use in extreme environments without performance degradation. The silver plated nickel LED terminals further contribute to the robustness and reliability of the illumination system.
The switch features momentary operation for momentary electrical contact. Full face illumination with pre-installed 5 V blue LEDs is included. Panel mounting supports 1 mm to 6 mm panel thickness. Gold plated nickel contacts and silver plated nickel LED terminals improve durability.
Tested and compliant with RoHS standards for environmental safety.
Common industrial use cases include electrical control panels, automation machinery, HVAC systems, manufacturing equipment, and safety signaling devices. This product helps provide reliable manual control inputs with clear visual status indicators.
EOZ push button switches from the FL series are favored for their ruggedness, ease of installation, and high IP rating, making them suitable for challenging commercial and industrial environments.
Explore other Push Button Switches and related components in the Electronics & Electricals category on EnvMart for comprehensive solutions in control and automation.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The panel cutout size for this model is 13.5 mm, which supports standardized installation dimensions.
This push button switch has an IP67 rating, ensuring it is dust-tight and protected against water immersion.
The operating temperature range for this unit is from -40°C to +85°C, allowing it to function in extreme environments.
It features a SPST (Single Pole Single Throw) contact configuration, allowing for simple ON/OFF control.
The contact terminals are made of gold plated nickel, which enhances conductivity and corrosion resistance.
It includes pre-installed 5 V blue LEDs that provide full face illumination for clear status indication.
The actuator style is a cap, and it is colored blue to match the LED illumination.
The maximum contact AC voltage for this switch is 2.5 kV ac.
This model can accommodate panel thicknesses ranging from 1 mm to 6 mm.
Yes, it is tested and compliant with RoHS standards for environmental safety.
Common applications include electrical control panels, automation machinery, HVAC systems, manufacturing equipment, and safety signaling devices.
The LED terminals are made of silver plated nickel, contributing to durability and reliable illumination.
