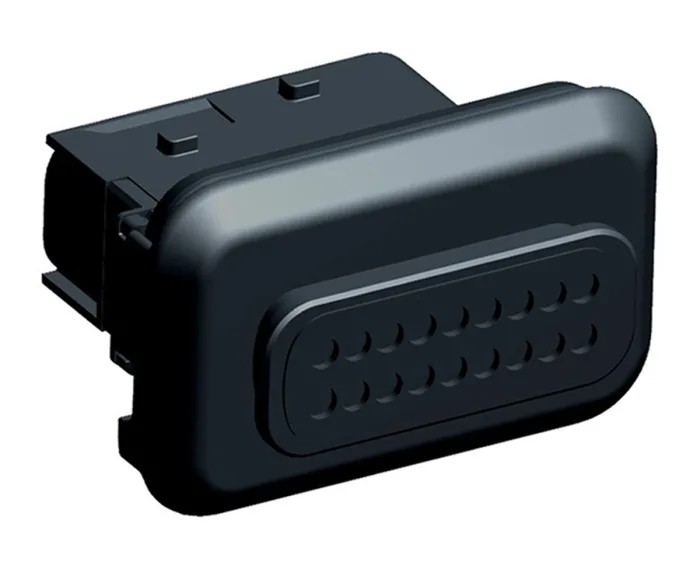

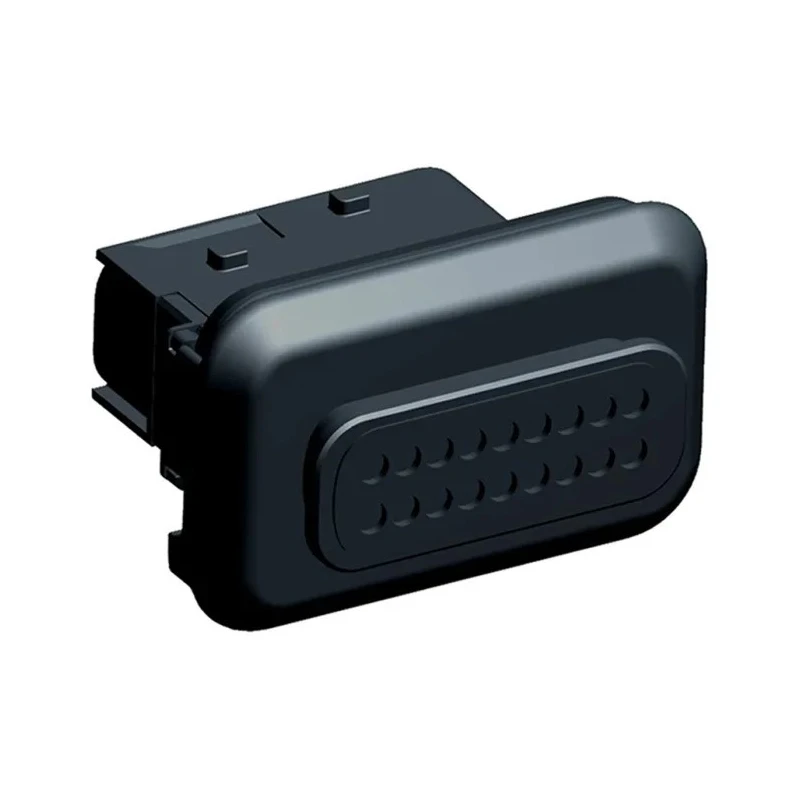

TE Connectivity HDSCS Automotive Connector Male Black Plug-in 18 Way Crimp Termination 40A 1-1564526-1
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Current | 40A |
| Height | 31.3mm |
| Depth | 67.2mm |
| IP Rating | IP67, IP6K9K |
| Width | 25.7mm |
| Gender | Male |
| Mount Type | Plug-in |
| Housing Material | Polybutylene Terephthalate |
| Series | HDSCS |
| Termination Type | Crimp |
| Maximum Operating Temperature | 140°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Standards/Approvals | EU ELV, EU RoHS |
| Number of Contacts | 18 |
| • Operating Temperature | -40°C to +140°C |
| • Connector Style | Housing for male terminals |
| • Connector System | Wire-to-Wire |
| • Housing Features | Centreline (Pitch): 4 mm |
Key Features
- Designed for heavy-duty, environmentally sealed automotive connections.
- Features a male black plastic housing with 18 contact positions.
- Supports high current rating up to 40 amps for robust electrical performance.
- Utilizes a plug-in mount type with crimp termination style.
- Operating temperature range from -40°C up to 140°C for harsh environments.
- Sealing rated to IP67 and IP6K9K for dust and water resistance.
- Constructed from durable polybutylene terephthalate housing material.
- Compatible with AMP MCP 1.5K tab contacts ensuring reliable connections.
Product Description
TE Connectivity 1-1564526-1 HDSCS Automotive Connector male plug-in 18 way with crimp termination is designed for heavy-duty automotive electrical applications requiring a rugged and environmentally sealed connector. The black polybutylene terephthalate housing offers high durability and resistance to tough operating conditions with an operating temperature range of -40°C to 140°C. It supports a current rating of 40 amps and features an 18-contact arrangement in 2 rows with a 4 mm pitch centreline.
This connector features a plug-in mount type and is designed to interface with AMP MCP 1.5K tab contacts, offering reliable wire-to-wire connection in commercial and off-road vehicles. Its sealing capabilities meet IP67 and IP6K9K standards, ensuring protection against dust and powerful water jets, which is critical in harsh environments.
The HDSCS series connector incorporates integral secondary locking mechanisms, various polarization keyrings, and a slide locking system to provide secure and low mating force connections. Its robust thermoplastic housing withstands vibration, mechanical stress, and environmental challenges typically encountered in automotive and industrial applications.
Typical applications include heavy-duty automotive and commercial vehicles requiring high-reliability connectors capable of withstanding vibration, temperature extremes, and environmental hazards. The connector's design helps reduce manufacturing and servicing costs while maintaining quality and performance standards.
Designed for heavy-duty automotive and off-road vehicles. Environmentally sealed to IP67 and IP6K9K standards for dust and water protection. Supports wire-to-wire connection with crimp termination style. Compatible with AMP MCP 1.5K tab contacts and similar systems.
Robust polybutylene terephthalate housing for durability. Operates reliably across -40°C to +140°C temperature range. 18 contact positions arranged in 2 rows with a 4 mm pitch. Integral secondary locking and polarization features for secure connectivity.
Reduces quality problems and manufacturing/service costs. Complies with EU ELV and RoHS standards for safety and environmental compliance.
This TE Connectivity automotive connector is an ideal choice for applications demanding reliable, durable, and environmentally protected connectivity within the automotive industry. Explore EnvMart for more professional-grade Automotive Connectors and industrial electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This automotive connector supports a current rating of 40 amps, making it suitable for heavy-duty applications.
It operates reliably across a temperature range of -40°C to +140°C, allowing it to function in harsh environments.
The connector has a height of 31.3 mm, a width of 25.7 mm, and a depth of 67.2 mm.
It utilizes a crimp termination style, which ensures secure connections in automotive applications.
Yes, it is sealed to IP67 and IP6K9K standards, providing protection against dust and water.
The housing is constructed from polybutylene terephthalate, which offers durability and resistance to tough conditions.
This model features 18 contact positions arranged in 2 rows with a 4 mm pitch centreline.
It supports a wire-to-wire connection system, making it suitable for various automotive applications.
It complies with EU ELV and EU RoHS standards, ensuring safety and environmental compliance.
This connector is a male type, designed to interface with compatible female connectors.
It is designed for heavy-duty automotive and commercial vehicles requiring reliable, environmentally protected connectivity.
It incorporates integral secondary locking mechanisms and polarization features for secure connectivity.
