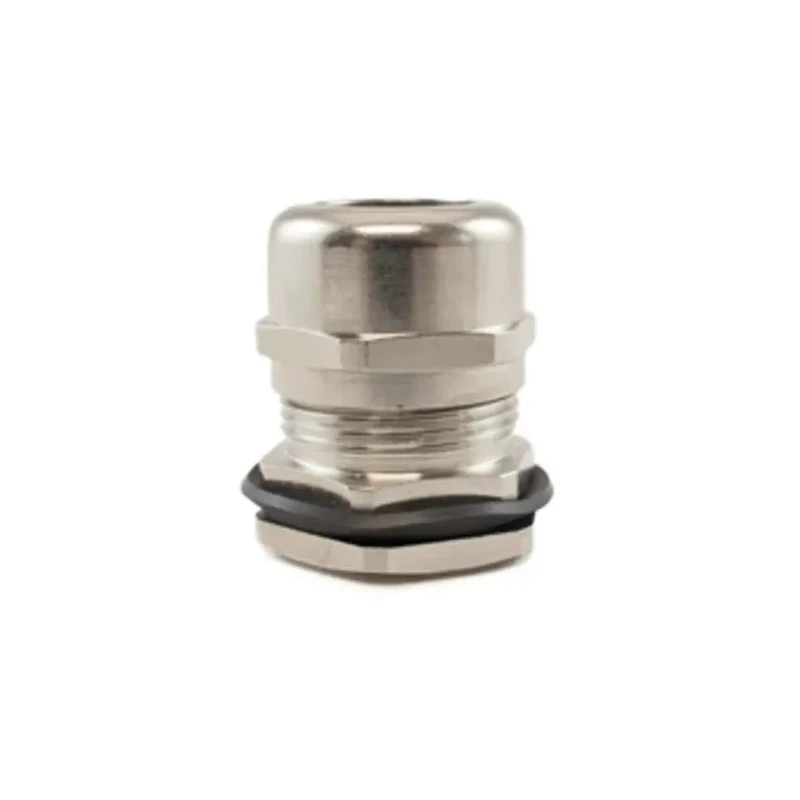

Alpha Wire FIT Wire Management Series Metallic Metal Cable Gland, PG16 Thread, 10 mm Min., 14 mm Max., IP68, IP66 MPG16 NC080

Alpha Wire MPG16 NC080 is a high-quality metallic metal cable gland from the FIT Wire Management series designed for professional industrial and electrical applications. This cable gland features a PG16 thread size, accommodating cable diameters from 10 mm minimum to 14 mm maximum. It provides exceptional strain relief and protection for cable installations.

Constructed with a brass nickel-plated body and cap, along with a Chloroprene rubber seal and NBR O-ring, the gland ensures a superior, durable airtight and watertight seal. The thread diameter is 22.5 mm with a 6.5 mm thread length, providing a robust fit in appropriate enclosures and fittings.

The gland supports an extensive temperature range from -30°C to 150°C, with permanent operation rated between -20°C and +100°C and intermittent tolerance up to +150°C. Its IP68 and IP66 ratings certify that it is dust-tight and can withstand submersion under fresh water pressures up to 5 bar for 30 minutes, making it ideal for harsh industrial environments.

Featuring UL compliance and V2 flammability rating according to UL94, it ensures safety in flammable environments. The gland is fitted with a locknut to secure the cable and provide strain relief, making it suitable for telecommunications, control, instrumentation, data, and electrical power cable systems. Its metallic finish and durable materials contribute to long-lasting performance in demanding applications.

Constructed with brass nickel-plated body and cap. Includes Chloroprene rubber seal and NBR O-ring for superior sealing. PG16 thread with 22.5 mm diameter and 6.5 mm length. Operates reliably from -30°C to 150°C maximum temperature.

Certified IP68 and IP66 for dust and water resistance. UL compliant with V2 flammability rating (UL94). Includes locknut for secure fitting and strain relief. Ideal for telecommunications, control, instrumentation, and power cable applications.

This Alpha Wire cable gland is an essential component for wiring systems requiring strain relief and environmental protection. Its metallic design and rugged build provide reliability in industrial, automation, telecommunications, and electrical installations. Browse EnvMart's curated selection for related cable glands and fittings for your professional needs.
