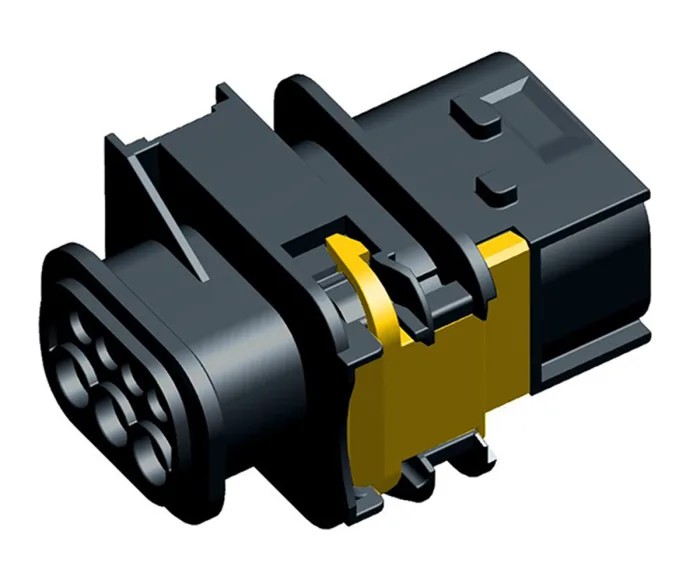

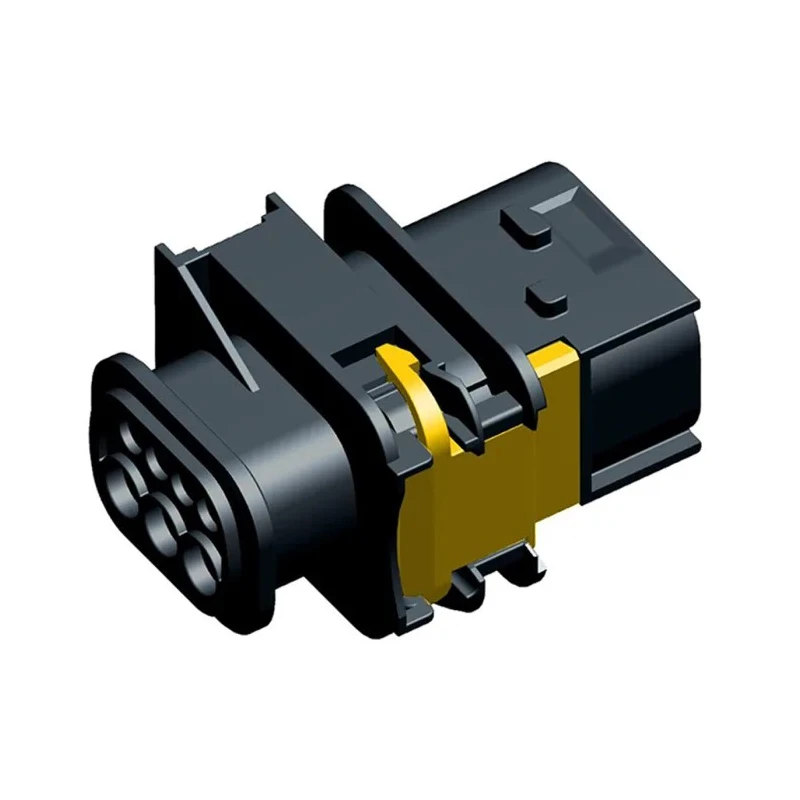

TE Connectivity HDSCS Automotive Connector Male Black Plug-in 7 Way Crimp Termination 1-1703648-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity HDSCS Automotive Connector Male Black Plug-in 7 Way Crimp Termination 1-1703648-1

Name: TE Connectivity HDSCS Automotive Connector Male Black Plug-in 7 Way Crimp Termination 1-1703648-1
Brand: TE Connectivity
SKU: 387617
Price: 3.57 USD
Availability: InStock



Category Automotive Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Colour	Black
Current	40A
Height	31.3mm
Depth	44mm
IP Rating	IP67
Width	25.7mm
Gender	Male
Mount Type	Plug-in
Housing Material	Polybutylene Terephthalate
Series	HDSCS
Termination Type	Crimp
Maximum Operating Temperature	140°C
Sub Type	Automotive Connector Housing
Minimum Operating Temperature	-40°C
Number of Rows	2
Standards/Approvals	EU ELV, EU RoHS
Number of Contacts	7

Key Features

Constructed with black polybutylene terephthalate housing for durability.
Plug-in mount type facilitating easy connection.
Operates safely within temperature range from -40°C to 140°C.
Features IP67 rating ensuring dust tight and water ingress protection.
Suitable for commercial and off-road vehicle applications requiring robust connectors.
Designed to accommodate a mixture of 1.5 and 2.8 male terminals.
Supports current rating up to 40A for reliable power transmission.
Guarantees high vibration resistance with rugged thermoplastic housing.

Product Description

TE Connectivity 1-1703648-1 is a heavy duty sealed HDSCS automotive connector designed for male plug-in applications with 7 contact points and crimp termination. This connector is manufactured with a robust black polybutylene terephthalate housing which ensures excellent durability and withstands harsh environmental conditions.

This connector operates reliably within a temperature range of -40°C to 140°C and is rated IP67, providing superior protection against dust ingress and water immersion, making it ideal for use in commercial vehicles and off-road machinery where exposure to tough environments and high vibration is common.

The HDSCS series connectors are engineered to accommodate a mixture of 1.5 and 2.8 male terminals. It supports a high current rating of 40A, suitable for demanding power transmission in automotive electrical systems. The plug-in mount type enables straightforward installation and secure mechanical locking for wire-to-wire or wire-to-device connections.

Dimensions of this connector include a height of 31.3 mm, width of 25.7 mm, and depth of 44 mm, ensuring compatibility within constrained assembly spaces. Compliant with EU ELV and EU RoHS directives, this connector complies with environmental and safety standards.

Applications for this TE Connectivity HDSCS automotive connector span industrial, heavy machinery, automotive manufacturing, and repair services. It is designed to deliver high performance, reliability, and long-term operational stability in challenging use-cases typical to automotive connectors.

Constructed with black polybutylene terephthalate housing for durability. Plug-in mount type facilitating easy connection. Operates safely within temperature range from -40°C to 140°C. Features IP67 rating ensuring dust tight and water ingress protection.

Suitable for commercial and off-road vehicle applications requiring robust connectors. Designed to accommodate a mixture of 1.5 and 2.8 male terminals. Supports current rating up to 40A for reliable power transmission. Guarantees high vibration resistance with rugged thermoplastic housing.

Complies with EU ELV and EU RoHS standards for safety and environmental requirements. Dimensions include height 31.3 mm, width 25.7 mm, and depth 44 mm.

Explore the comprehensive range of Automotive Connectors and related TE Connectivity products available on EnvMart and discover reliable solutions for your industrial and automotive electrical needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This automotive connector supports a current rating of up to 40A, suitable for reliable power transmission in automotive electrical systems.

It operates safely within a temperature range from -40°C to 140°C, making it suitable for various environmental conditions.

The connector features an IP67 rating, ensuring it is dust tight and provides protection against water ingress.

It is constructed with a black polybutylene terephthalate housing, which provides durability and resistance to harsh environmental conditions.

This model has 7 contact points, designed for male plug-in applications with crimp termination.

The dimensions of this connector are a height of 31.3 mm, a width of 25.7 mm, and a depth of 44 mm.

It utilizes a plug-in mount type, which facilitates easy connection and secure mechanical locking for wire-to-wire or wire-to-device connections.

It complies with EU ELV and EU RoHS directives, ensuring adherence to environmental and safety standards.

This model is designed to accommodate a mixture of 1.5 and 2.8 male terminals, allowing for versatile applications.

It is suitable for use in commercial vehicles and off-road machinery, particularly in industrial, heavy machinery, and automotive manufacturing contexts.

This connector is a male type, designed for plug-in applications.

It guarantees high vibration resistance due to its rugged thermoplastic housing, making it suitable for challenging use cases in automotive applications.
