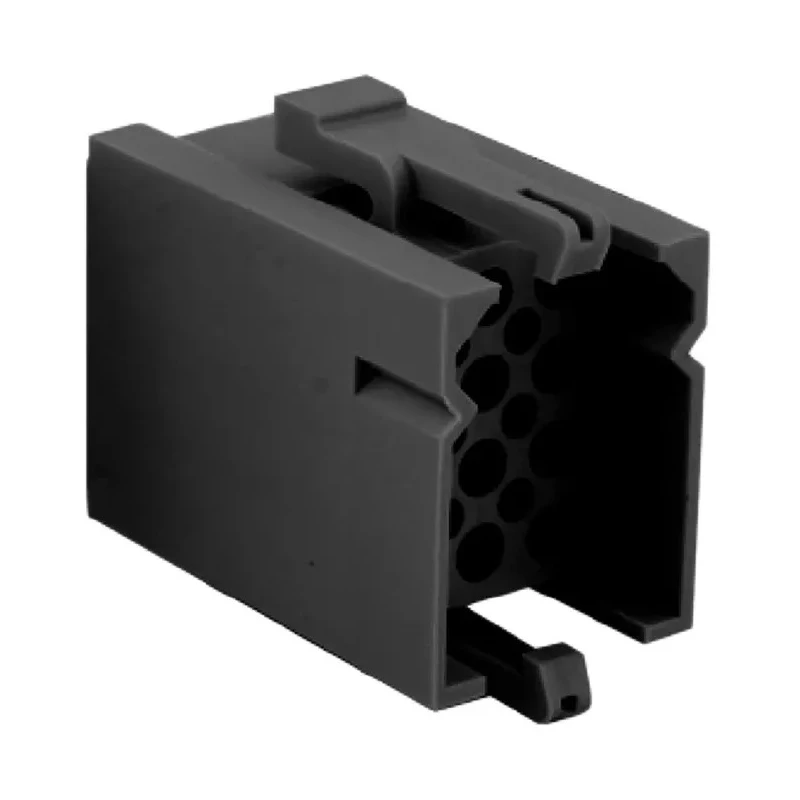

Souriau Sunbank by Eaton SMS Male Connector Housing, 5.08 mm Pitch, 15 Way, 5 Row Straight SMS15P1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Souriau Sunbank by Eaton |
| Orientation | Straight |
| Length | 18.6mm |
| Model | SMS15P1 |
| Width | 32.9mm |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Series | SMS |
| Number of Rows | 5 |
| Pitch | 5.08mm |
| For Use With | Quick Mating PCB Connector |
| Number of Contacts | 15 |
| Connector Gender | Male |
Key Features
- The connector housing features a compact design with push to mate and press & release to unmate functionality for easy assembly.
- It includes retaining latches for positive locking and pin protection skirts to prevent contact damage.
- The housing is made of durable polyamide material ensuring reliable use in demanding electrical environments.
- Compatible with quick mating PCB connectors using size 16 TRIM TRIO 1.6 mm diameter snap-lock contacts.
- The straight cable mount type design has dimensions of 18.6 mm length and 32.9 mm width.
- The connector is designed to prevent mismating through positive polarization keys.
- It does not include a strain relief hood or discrimination cavities in this version.
- Ideal for electronic, power connector and industrial applications requiring quick, secure cable to PCB connections.
Product Description
Souriau Sunbank by Eaton SMS15P1 is a high-quality male connector housing designed with 15 contacts arranged in 5 rows, featuring a 5.08 mm pitch. This quick mating cable mount plug housing is part of the SMS series known for its compact design and efficient push to mate and press & release to unmate functionality, enabling fast and secure assembly without additional hardware.
The housing material is polyamide, providing durability and resistance to environmental factors common in industrial and electronic applications. The design incorporates retaining latches for a positive locking mechanism, pin protection skirts to safeguard the contacts from damage, and positive polarization keys to prevent mismating, ensuring reliable performance even in demanding conditions.
The connector is oriented straight with a cable mount type, measuring 18.6 mm in length and 32.9 mm in width. It is compatible with quick mating PCB connectors and uses size 16 TRIM TRIO 1.6 mm diameter snap-lock pin and socket contacts (sold separately). This housing version does not include an integrated strain relief hood or discrimination cavities between contact cavities.
This connector is widely used in electronic components, power connector systems, and industrial equipment requiring robust and quick connections. It is suitable for applications in manufacturing, automation control, power distribution, and general electronics assembly.
The compact SMS series design enables quick and easy mate/unmate operations without tools. Durable polyamide housing ensures longevity and resistance to operational stresses. Retaining latches maintain secure connections preventing unintentional disconnection.
Pin protection skirts help avoid contact damage during handling or installation. Positive polarization keys eliminate the risk of mismating connectors. Compatible with a wide range of quick mating PCB connectors using standard snap-lock contacts.
This product is new, made in India by Souriau Sunbank by Eaton and is a trusted choice for customers needing dependable electrical connector solutions. Explore EnvMart's wide selection of electronic Connector Housings and accessories for your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the SMS15P1 connector housing is 5.08 mm.
This model features 15 contacts arranged in 5 rows.
The orientation of this connector housing is straight.
The housing is made of durable polyamide material.
This unit measures 18.6 mm in length and 32.9 mm in width.
This model features push to mate and press & release to unmate functionality for easy assembly.
It is suitable for electronic components, power connector systems, and industrial equipment requiring quick connections.
The design incorporates retaining latches for positive locking and pin protection skirts to prevent contact damage.
This product is made in India.
