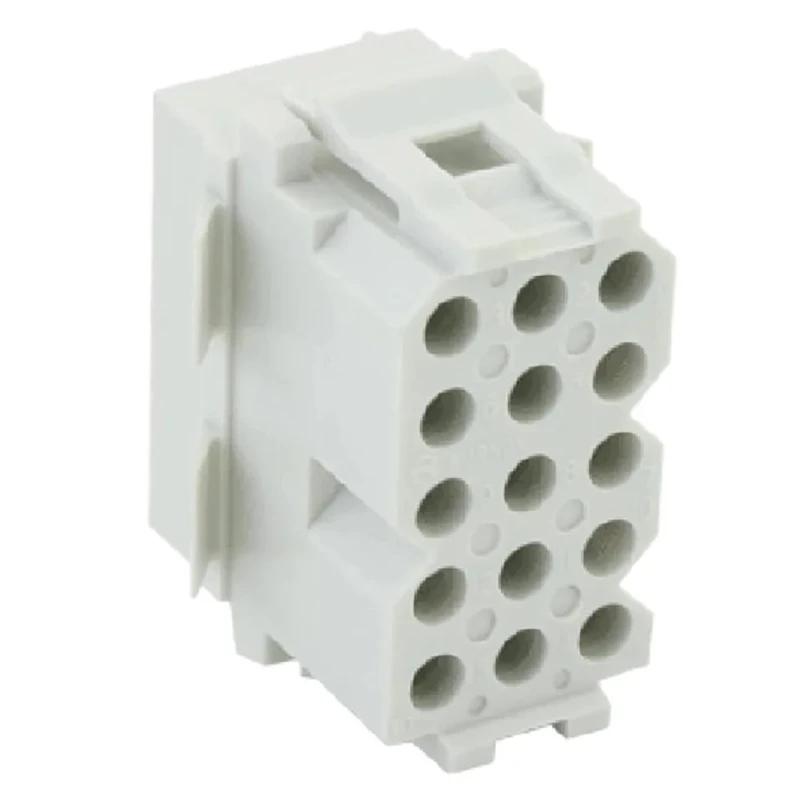

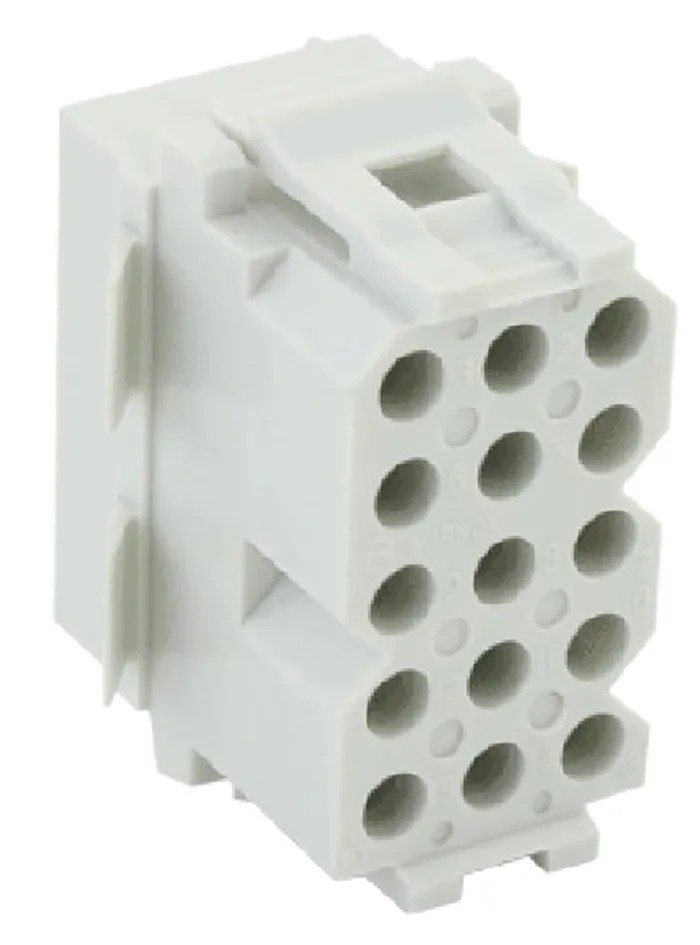

Souriau Sunbank by Eaton SMS Female Connector Housing Panel Mount 15 Contacts 5 Row 5.08mm Pitch SMS15R3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Souriau Sunbank by Eaton |
| Orientation | Straight |
| Length | 16.2mm |
| Model | SMS15R3 |
| Width | 25mm |
| Mount Type | Panel |
| Housing Material | Polyamide |
| Series | SMS |
| Number of Rows | 5 |
| Pitch | 5.08mm |
| For Use With | Quick Mating PCB Connector |
| Number of Contacts | 15 |
| Connector Gender | Female |
Key Features
- The housing is made of polyamide material offering flame retardant properties compliant with railway fire and smoke standards.
- The connector is designed for quick mating with PCB connectors enabling easy assembly and installation.
- It features positive retention latches and polarization keys to prevent mismating during use.
- The orientation of the connector is straight, suitable for panel mount applications.
- This SMS series housing is compatible with size 16 TRIM TRIO 1.6 mm snap-lock contacts sold separately.
- It is compliant with French rail fire and smoke standards NFF16101, NFF16102, and European EN45545 HL3/R23 standards.
- The compact design allows snapping and locking into panel cut-outs without additional hardware.
Product Description
Souriau Sunbank by Eaton SMS15R3 female connector housing is a panel mount connector designed for quick mating PCB applications. It offers 15 contacts arranged in 5 rows with a 5.08 mm pitch, ensuring reliable connection performance in demanding conditions.
The housing is constructed from polyamide PA 6 UL94-V0 material, which is fire and smoke resistant, making it suitable for railway indoor applications. It is compliant with fire and smoke standards I3/F2 under NFF16101 and NFF16102 and meets HL3/R23 requirements in accordance with EN45545 (2009), ensuring enhanced safety in critical environments.
This connector housing features a straight orientation and incorporates positive housing retention latches and polarization keys, which prevent mismating and ensure secure mechanical and electrical connections.
The SMS series connectors use size 16 TRIM TRIO 1.6 mm diameter snap-lock pin and socket contacts, which must be purchased separately. The compact housing design allows for snap and lock installation into panel cut-outs without requiring additional hardware, speeding up assembly processes.
Ideal for industrial, railway, and other commercial applications where safety, reliability, and quick assembly are essential, this connector housing supports robust wire-to-board connection solutions.
The housing is flame retardant and complies with relevant rail industry fire and smoke standards. It supports 15 contacts in a 5 row configuration suitable for complex wiring requirements. The panel mount installation design ensures easy, secure, and hardware-free assembly.
Positive retention and polarization features enhance connection reliability and prevent mismatching. Compatible with quick mating SMS series cable mount plug housings for complete connection systems. Explore EnvMart's extensive range of high-quality Connector Housings and specialty electrical components designed for complex industrial and electronic assemblies.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The orientation of this connector housing is straight, making it suitable for panel mount applications.
It supports 15 contacts arranged in a 5 row configuration.
The pitch size of the contacts is 5.08 mm.
The dimensions are 16.2 mm in length and 25 mm in width.
It incorporates positive retention latches and polarization keys to prevent mismating during use.
It supports panel mount installation, allowing for snap and lock into panel cut-outs without additional hardware.
It is suitable for industrial, railway, and other commercial applications where safety and reliability are essential.
The connector housing features 5 rows for contact arrangement.
It is compatible with size 16 TRIM TRIO 1.6 mm snap-lock contacts, which must be purchased separately.
