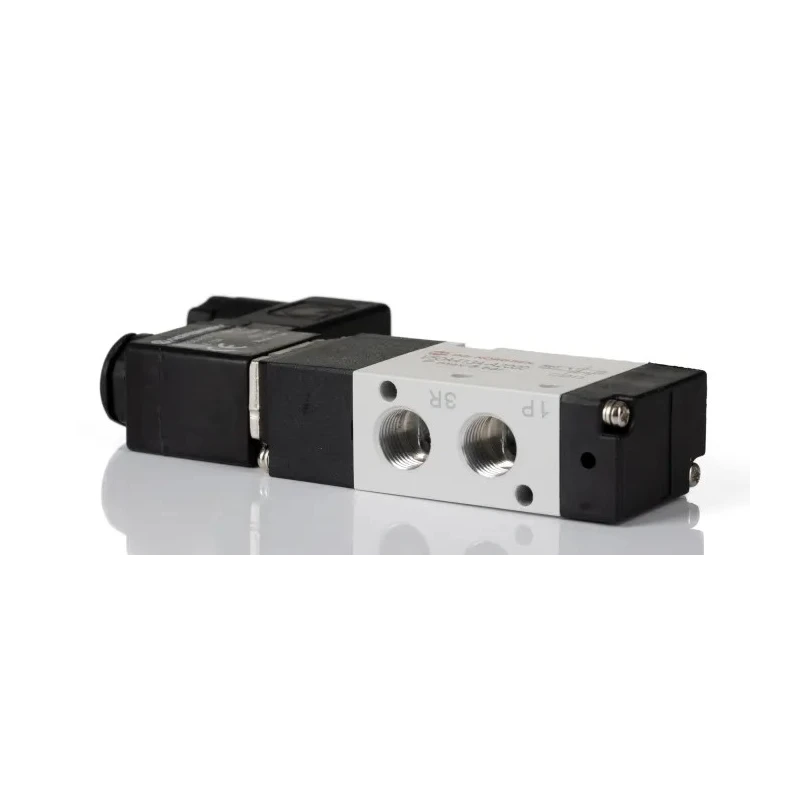

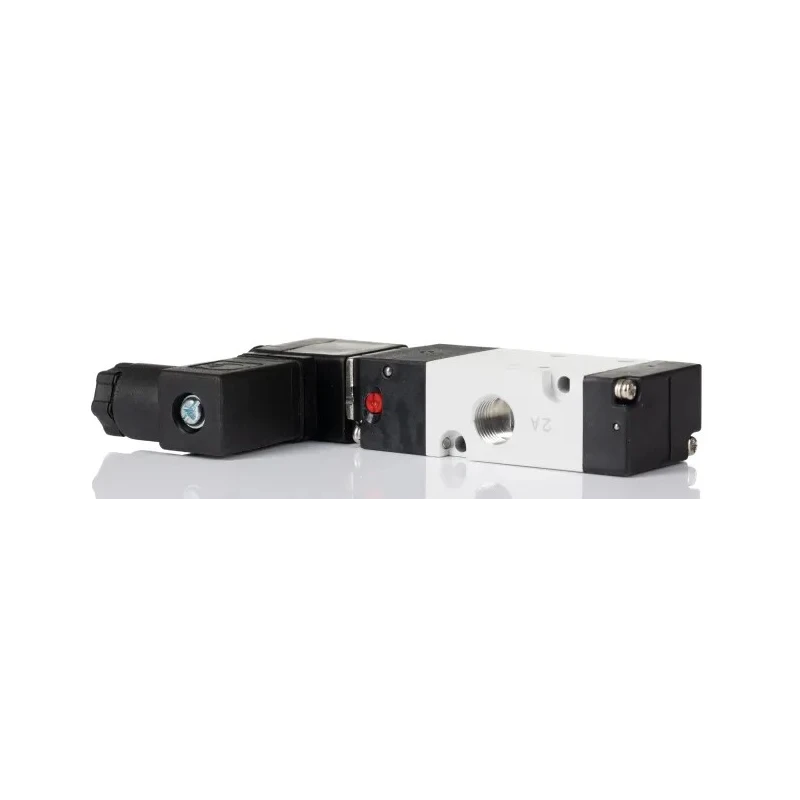

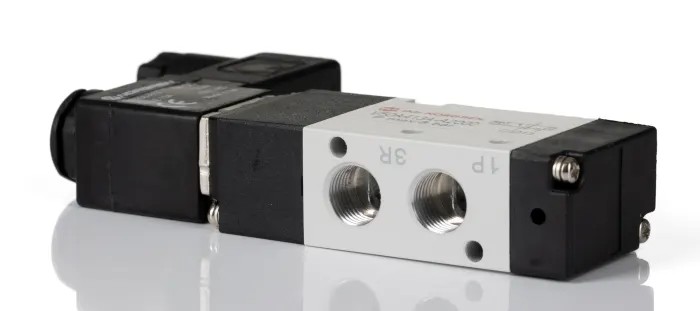

RS PRO Pneumatic Solenoid Valve 3/2 Function G 1/8 Port 24V DC 2.9W Die Cast Aluminium Body 907-6384
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 24V dc |
| Brand | RS PRO |
| Body Material | Die Cast Aluminium |
| Maximum Operating Pressure | 8 bar |
| Height | 55.5mm |
| Length | 99.5mm |
| Model | 907-6384 |
| Width | 18mm |
| Mount Type | In-Line, Manifold |
| Series | RS PRO |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 50°C |
| Number of Positions | 2 |
| Port Size | 1/8 in |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -5°C |
| Actuation Type | Solenoid/Air |
| Maximum Flow Rate | 480L/min |
| Standards/Approvals | RoHS |
| Connection Thread Standard | G 1/8 |
| Minimum Pilot Pressure | 2bar |
| Valve Function | 3/2 |
| Electrical Connection Type | Plug Socket |
| Solenoid Type | Single |
| Port Gender | Female |
| Solenoid Power Consumption | 2.9W |
Key Features
- Compact and robust solenoid valve designed for precise pneumatic control.
- Die cast aluminium body offers durability and resistance to wear.
- Operates efficiently with a maximum flow rate of 480 L/min at a max pressure of 8 bar.
- Suitable for use with both lubricated and non-lubricated air supplies.
- Mountable inline or on manifold for flexible installation.
- Seal material is nitrile rubber (NBR) providing leak-proof operation.
- Designed for an operating temperature range from -5°C to 50°C.
- Electrical connection by plug socket ensuring easy wiring.
Product Description
RS PRO 907-6384 Pneumatic Solenoid Valve is a 3/2 function solenoid valve with G 1/8 connection ports, operating at 24 V DC with low power consumption of 2.9 W. Its die cast aluminium body ensures high durability for industrial, commercial, and laboratory pneumatic system applications.
This valve is engineered for precise control of gas or air flow, supporting both lubricated and non-lubricated air media. It features a robust soft-seal spool that ensures minimal leakage and reliable long-term operation. The compact design facilitates easy integration in tight spaces.
The valve supports a maximum flow rate of 480 liters per minute and operates under a maximum pressure of 8 bar, with a minimum pilot pressure of 2 bar. It can be installed inline or manifold-mounted depending on system design requirements, providing flexibility in pneumatic circuit configurations.
Operating temperatures range from -5°C to 50°C, making it suitable for a broad spectrum of industrial environments. The nitrile rubber seal enhances durability and chemical resistance. Its electrical connection via plug socket simplifies installation and maintenance.
Ideal for applications in industrial automation, manufacturing facilities, HVAC systems, water treatment plants, and laboratory setups requiring efficient air or gas flow control. Compact and robust solenoid valve designed for precise pneumatic control.
Die cast aluminium body offers durability and resistance to wear. Operates efficiently with a maximum flow rate of 480 L/min at a max pressure of 8 bar. Suitable for use with both lubricated and non-lubricated air supplies.
Mountable inline or on manifold for flexible installation. Seal material is nitrile rubber (NBR) providing leak-proof operation. Designed for an operating temperature range from -5°C to 50°C. Electrical connection by plug socket ensuring easy wiring.
Two positions with three ports for effective 3/2 valve function. Explore more Pneumatic Solenoid Valves by RS PRO on EnvMart for reliable and efficient pneumatic control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum flow rate of this model is 480 liters per minute.
It operates under a maximum pressure of 8 bar and requires a minimum pilot pressure of 2 bar.
This pneumatic solenoid valve operates at a voltage of 24V DC.
The body is made of die cast aluminium, and the seal material is nitrile rubber (NBR).
It is designed to operate within a temperature range of -5°C to 50°C.
The electrical connection is made via a plug socket, ensuring easy wiring.
The dimensions are 99.5mm in length, 18mm in width, and 55.5mm in height.
This valve functions as a 3/2 valve, featuring two positions and three ports.
Yes, it is suitable for use with both lubricated and non-lubricated air supplies.
It can be mounted inline or on a manifold, providing flexibility in installation.
This model complies with RoHS standards.
The solenoid power consumption for this valve is 2.9W.
