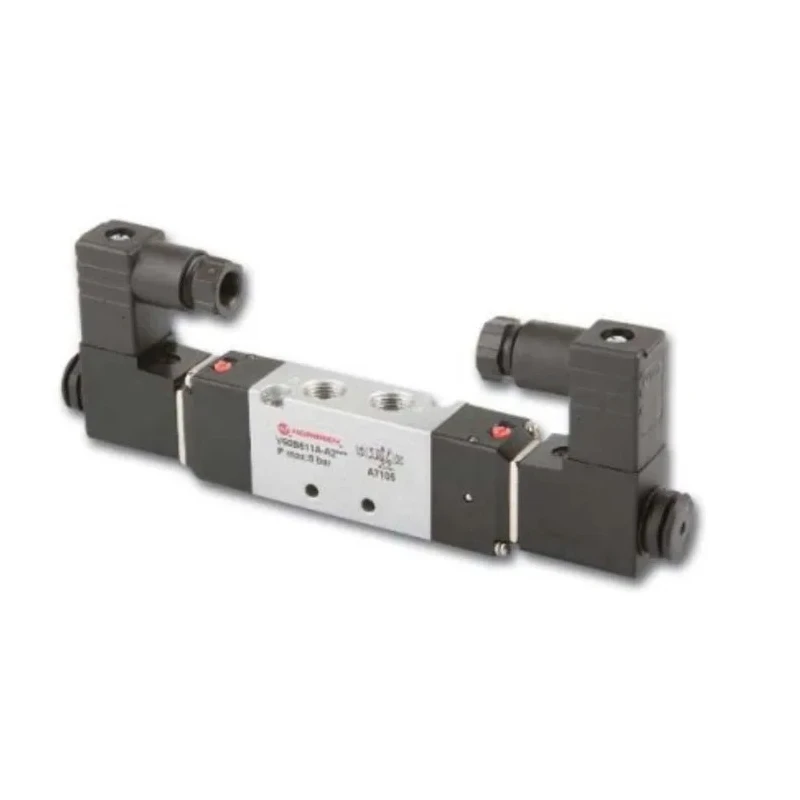

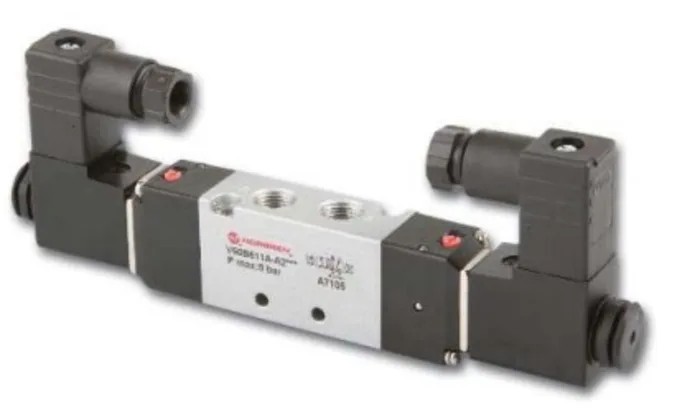

RS PRO Pneumatic Solenoid Valve 5/2 Function G 1/8 Port Size 24V DC 2.9W Solenoid Power 480 L/min Flow 8 bar 907-6378
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 24V dc |
| Brand | RS PRO |
| Body Material | Die Cast Aluminium |
| Maximum Operating Pressure | 8 bar |
| Height | 55mm |
| Length | 155mm |
| Model | 907-6378 |
| Width | 18mm |
| Mount Type | Manifold, In-Line |
| Series | RS PRO |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 50°C |
| Number of Positions | 2 |
| Port Size | 1/8 in |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -5°C |
| Actuation Type | Solenoid |
| Maximum Flow Rate | 480L/min |
| Standards/Approvals | RoHS |
| Connection Thread Standard | G 1/8 |
| Minimum Pilot Pressure | 2bar |
| Valve Function | 5/2 |
| Electrical Connection Type | Plug Socket |
| Solenoid Type | Single |
| Port Gender | Female |
| Solenoid Power Consumption | 2.9W |
Key Features
- Features a 5-port, 2-position valve function for precise pneumatic control.
- Constructed with a robust die cast aluminium body for durability.
- Seal material is Nitrile Rubber (NBR) resistant for reliable sealing performance.
- Designed for manifold and in-line mounting with plug socket electrical connection.
- Operates under a maximum pressure of 8 bar with a maximum flow rate of 480 L/min.
- Suitable for operating temperatures from -5°C to 50°C.
- Compact dimensions with length 155mm, width 18mm, and height 55mm.
- Single solenoid actuation type ensures effective valve actuation.
Product Description
RS PRO 907-6378 Pneumatic Solenoid Valve is a 5/2 function valve with a G 1/8 thread port size, designed for robust and reliable pneumatic control. Operating at 24V DC and consuming 2.9 watts of power, this single solenoid valve is ideal for controlling air flow in pneumatic systems.
The valve’s die cast aluminium body offers excellent durability and resistance against mechanical stress, while the Nitrile Rubber (NBR) seal ensures tight sealing and longevity in both lubricated and non-lubricated air supply environments. Suitable for manifold and in-line mounting, it allows flexible installation options. Its plug socket electrical connection facilitates easy and secure connection to control circuits.
This valve supports a maximum operating pressure of 8 bar and can handle flow rates up to 480 L/min, making it suitable for varied industrial applications including automation, manufacturing, and fluid power systems. It is rated for operation within temperatures ranging from -5°C to 50°C, providing versatility across different working conditions.
With compact dimensions of 155mm length, 18mm width, and 55mm height, it is designed for ease of integration in systems with space constraints. The valve is manufactured in Germany under strict quality standards and complies with RoHS directives, ensuring environmental and safety compliance.
Features a 5-port, 2-position valve function. Body material: Die cast aluminium. Seal material: Nitrile Rubber (NBR). Voltage: 24V DC with 2.9W solenoid power consumption. Maximum operating pressure: 8 bar. Maximum flow rate: 480 L/min.
Operating temperature range: -5°C to 50°C. Mount type: Manifold, in-line. Electrical connection type: Plug socket. Manufactured in Germany.
This valve is suitable for pneumatic control applications in industrial automation, manufacturing plants, HVAC systems, and any setup requiring reliable pneumatic directional control. Explore more pneumatic valves and components in EnvMart's Industrial Valves & Valve Fittings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this pneumatic solenoid valve is 8 bar.
This model can handle a maximum flow rate of 480 L/min.
It operates at 24V DC with a solenoid power consumption of 2.9 watts.
The dimensions of this valve are 155mm in length, 18mm in width, and 55mm in height.
The body is made of die cast aluminium, and the seal material is Nitrile Rubber (NBR).
It is suitable for operating temperatures from -5°C to 50°C.
The valve features a plug socket electrical connection for easy and secure integration.
This model uses single solenoid actuation for effective valve operation.
It features a 5-port, 2-position valve function for precise pneumatic control.
It is designed for manifold and in-line mounting, providing flexible installation options.
This valve complies with RoHS directives, ensuring environmental and safety compliance.
The port size is G 1/8, with a female port gender.
