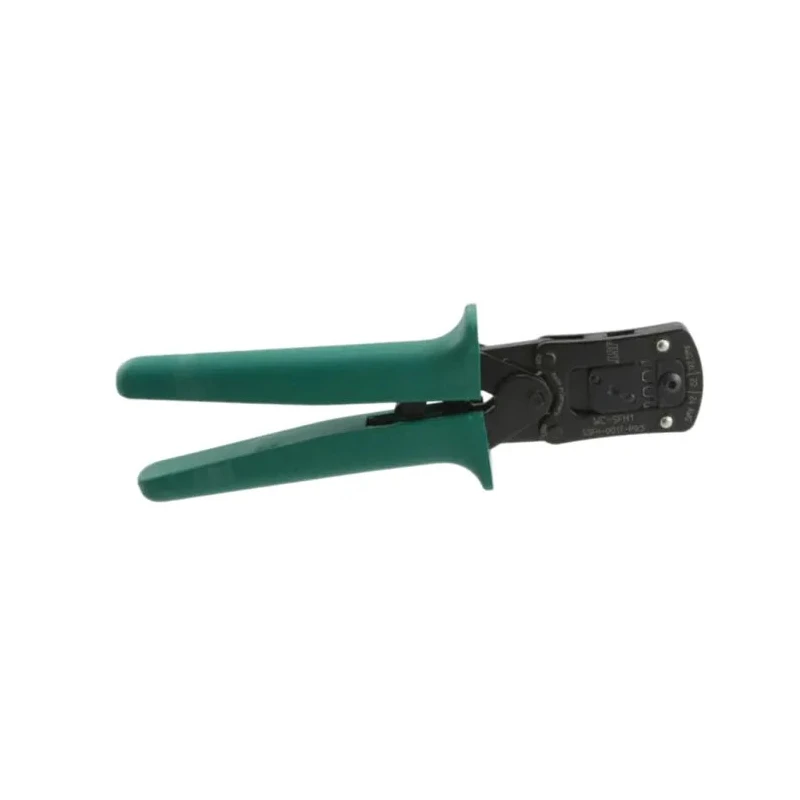

JST LEX CONNECTOR Crimp Tool Low Profile Bottom Type Connector for SSFH Contacts WC-SFH1



Category Crimp Tool Brand JST Condition New

Specifications

Country of Origin	Germany
Brand	JST
Model	WC-SFH1
Handle Type	Plain
Series	LEX CONNECTOR
Sub Type	Low Profile Bottom Type Connector
For Use With	SSFH Contacts
Standards/Approvals	LR20812, E60389, UL94V-0, RoHS

Key Features

This tool is specifically made for crimping size 26-30 AWG contacts.
It features a plain handle type for reliable grip and ease of use.
The crimp tool has a low profile bottom type connector design for accessibility in tight spaces.
It does not have an adjustable ratchet, making it suitable for consistent crimping.
Complies with industry standards including LR20812, E60389, UL94V-0, and RoHS for safety and quality assurance.
Manufactured in Germany ensuring high-quality engineering and durability.
Ideal for electrical and electronics assembly requiring reliable wire-to-board connections.

Product Description

JST WC-SFH1 Crimp Tool Low Profile Bottom Type Connector for SSFH Contacts is a precision hand crimp tool tailored for crimping SSFH crimp socket contacts into LEX series 2.5mm crimp socket housings. This crimp tool is designed with a low profile bottom type connector, providing excellent access in compact or constrained areas common in electrical and electronic assemblies.

The WC-SFH1 model accommodates wire sizes ranging from 26 to 30 AWG, making it ideal for fine gauge connectors in circuit board applications. Its plain handle design offers a comfortable and secure grip, ensuring operator efficiency during repeated use. Without an adjustable ratchet, this tool provides consistent crimp force suitable for SSFH contacts, maintaining reliable electrical connections.

This tool meets several rigorous industry standards, including LR20812, E60389, UL94V-0 flame retardant rating, and RoHS compliance, guaranteeing safety, quality, and environmental responsibility in manufacturing and usage.

Crafted in Germany, it brings robust engineering quality synonymous with German industrial products. The JST WC-SFH1 crimp tool is well-suited for industrial, manufacturing, laboratory, and electronics repair settings where precision wire-to-board connections are essential.

Specifically engineered for JST LEX series 2.5mm wire-to-board connectors. Fits SSFH crimp socket contacts with size 26-30 AWG wiring. Low profile bottom type connector design enables use in restricted spaces. Plain handle type offers straightforward, ergonomic operation.

Conforms to LR20812, E60389, UL94V-0, and RoHS standards for reliability and safety. Manufactured in Germany to ensure high durability and performance. Suitable for professional electrical assembly and maintenance tasks.
