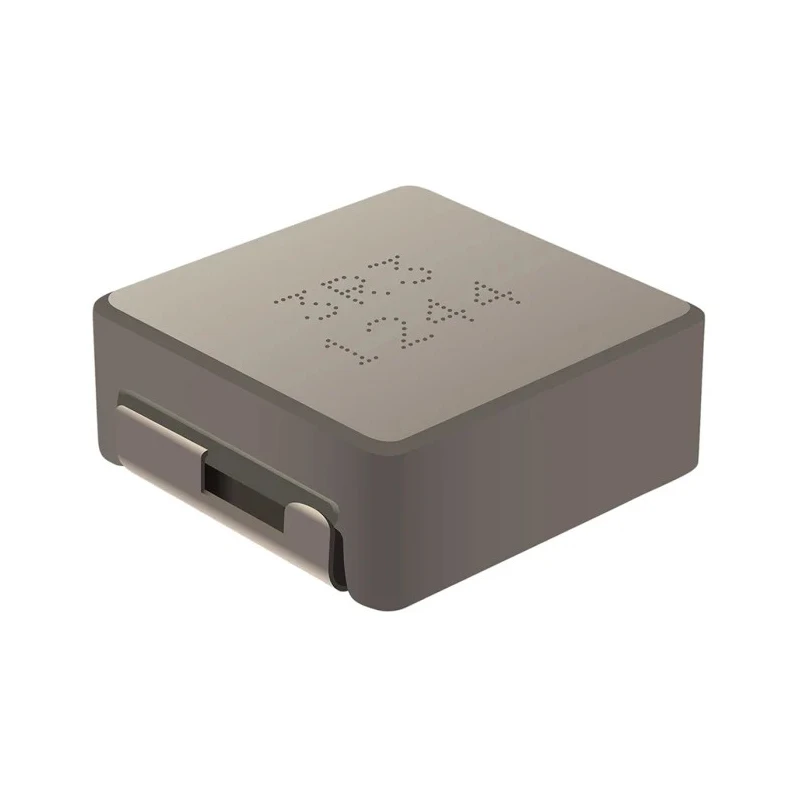

Bourns Shielded Wirewound Surface Mount Inductor 68 μH ±20% 7A IDC Carbonyl Powder Core SRP1770TA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 16.9mm |
| Length | 17.3mm |
| Model | SRP1770TA |
| Depth | 6.7mm |
| Packaging | Reel |
| Series | SRP1770TA |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Carbonyl Powder |
| Inductance | 68μH |
| Standards/Approvals | RoHS |
| Package/Case | 1770 |
| Maximum DC Current | 7A |
| Pin Count | 2 |
| Maximum DC Resistance | 80mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 2MHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a carbonyl powder core ensuring high saturation current.
- Shielded design reduces magnetic radiation effectively.
- Rated for a maximum DC current of 7A to handle high loads.
- Package size 1770, suitable for surface mount technology.
- Operates within temperature range from -40°C to 150°C.
- Complies with AEC-Q200 automotive standards.
- Offers a minimum quality factor of 20 for efficient performance.
- Termination style is solder, compatible with PCB assembly.
Product Description
Bourns SRP1770TA shielded wirewound surface mount inductor delivers 68 μH inductance with a ±20% tolerance, optimized for demanding electronic circuitry requiring high current and low magnetic interference.
This inductor features a carbonyl powder core construction, which provides excellent saturation current handling and stability, making it ideal for power conversion and DC/DC converter applications in automotive and industrial environments.
Its shielded design significantly reduces magnetic interference and emission, ensuring compliance with stringent EMC requirements for automotive systems including driver assistance, lighting control, and infotainment modules.
The component is rated to operate reliably over a broad temperature range from -40°C to 150°C and is qualified under the AEC-Q200 standard for automotive grade performance and reliability. It is supplied in a 1770 package size, with a height of 16.9mm, length of 17.3mm, and depth of 6.7mm suited for surface mount assembly techniques.
With a maximum DC current rating of 7A and maximum DC resistance of just 80mΩ, this inductor supports efficient power management and reduced losses. Its minimum quality factor of 20 and maximum self-resonant frequency of 2 MHz further augment performance in high-frequency switching applications.
Constructed with a carbonyl powder core and enamelled copper wire. Shielded casing for minimal magnetic radiation. Suitable for automotive and industrial electronic systems. Compliance with RoHS directives ensures environmental safety.
Moulded design enhances durability and longevity.
This Bourns inductor is ideal for engineers and designers seeking reliable, high-performance inductors for compact, surface mount configurations in automated manufacturing processes. It is commonly used in automotive power supplies, industrial control circuits, and high-frequency filter networks.
Explore more high-quality Surface Mount Inductors and power inductors at EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has an inductance value of 68 μH with a tolerance of ±20%.
The maximum DC current rating is 7A, allowing it to handle high loads effectively.
It operates within a temperature range from -40°C to 150°C.
The dimensions are 16.9mm in height, 17.3mm in length, and 6.7mm in depth.
It is constructed with a carbonyl powder core, which provides excellent saturation current handling.
The minimum quality factor is 20, which supports efficient performance.
Yes, it complies with the AEC-Q200 automotive standards for performance and reliability.
The termination style is solder, making it compatible with PCB assembly.
The maximum self-resonant frequency is 2 MHz, suitable for high-frequency applications.
It is supplied in a reel packaging, suitable for automated manufacturing processes.
The maximum DC resistance is 80 mΩ, which helps in efficient power management.
The country of origin for this product is India.
