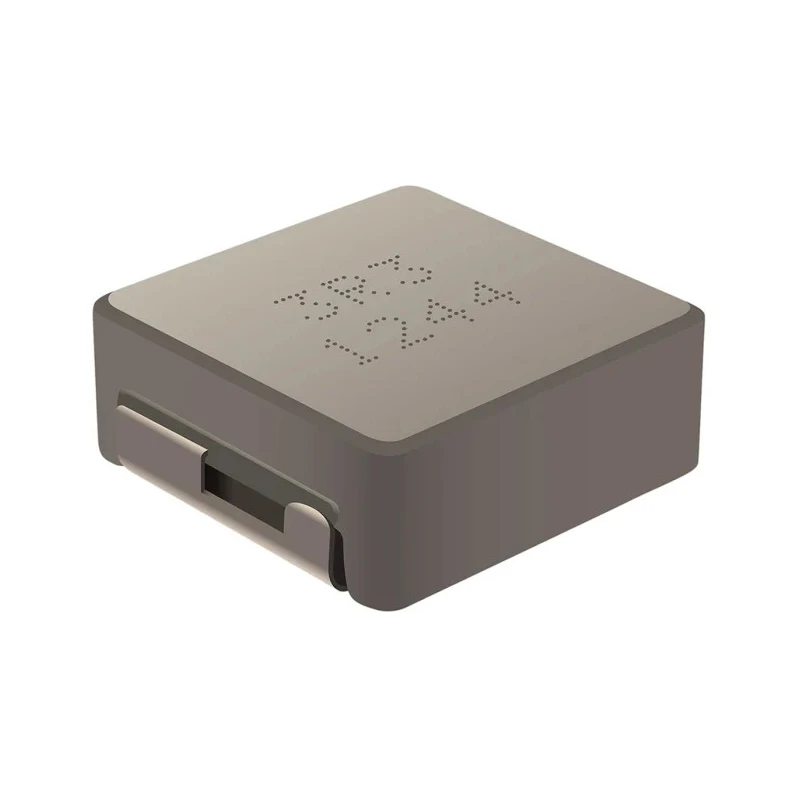

Bourns 1770 Shielded Wirewound Surface Mount Inductor Carbonyl Powder Core 15μH ±20% 12.5A SRP1770TA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 16.9mm |
| Length | 17.3mm |
| Model | SRP1770TA |
| Depth | 6.7mm |
| Packaging | Reel |
| Series | SRP1770TA |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Carbonyl Powder |
| Inductance | 15μH |
| Standards/Approvals | RoHS |
| Package/Case | 1770 |
| Maximum DC Current | 12.5A |
| Pin Count | 2 |
| Maximum DC Resistance | 20.5mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 7MHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with carbonyl powder core for high saturation current performance.
- Shielded design minimizes magnetic radiation for improved circuit integrity.
- Suitable for automotive systems with AEC-Q200 qualification.
- Operates reliably in temperatures from -40°C to 150°C.
- Compact 1770 package size with solder termination style for surface mounting.
- Maximum DC resistance of 20.5mΩ ensures low power loss.
- Rated for a maximum self-resonant frequency of 7MHz.
- Moulded wirewound construction enhances durability and stability.
Product Description
Bourns SRP1770TA Shielded Wirewound Surface Mount Inductor is designed with a carbonyl powder core that supports a high saturation current and stable inductance of 15μH with ±20% tolerance. The shielded construction effectively reduces magnetic radiation, making it highly suitable for sensitive electronic applications. This inductor series meets AEC-Q200 automotive standards, ensuring reliability in automotive driver assistant devices, lighting systems, and infotainment electronics.
This surface mount inductor operates efficiently within a broad temperature range from -40°C to 150°C and features a low maximum DC resistance of 20.5mΩ to reduce power dissipation. The component's construction uses enamelled copper wire wound on a carbonyl powder core, with a moulded body enhancing mechanical robustness.
The product comes in a compact 1770 package with dimensions of 17.3mm length, 16.9mm height, and 6.7mm depth, and it is terminated with solder pins compatible with surface mount assembly. It provides a maximum DC current rating of 12.5A and a maximum self-resonant frequency of 7MHz, making it ideal for power supplies and DC/DC converters in automotive and industrial electronics.
Constructed with carbonyl powder core for high saturation current performance. Shielded design minimizes magnetic radiation for improved circuit integrity. Suitable for automotive systems with AEC-Q200 qualification. Operates reliably in temperatures from -40°C to 150°C.
Compact 1770 package size with solder termination style for surface mounting. Maximum DC resistance of 20.5mΩ ensures low power loss. Rated for a maximum self-resonant frequency of 7MHz. Moulded wirewound construction enhances durability and stability.
Includes 2 pins and available in reel packaging for automated assembly processes.
This Bourns power inductor is widely used in industrial, automotive, power supply, and manufacturing settings that require reliable, high-current inductors with minimal electromagnetic interference. Explore more Bourns Surface Mount Inductors on EnvMart for robust electronic component selection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 15μH with a tolerance of ±20%.
The maximum DC current rating for this unit is 12.5A.
It is rated for a maximum self-resonant frequency of 7MHz.
The dimensions of the 1770 package are 17.3mm in length, 16.9mm in height, and 6.7mm in depth.
The maximum operating temperature is 150°C.
This inductor is constructed with a carbonyl powder core.
The termination style is solder, suitable for surface mounting.
It meets the AEC-Q200 automotive standard and is RoHS compliant.
The maximum DC resistance is 20.5mΩ, which helps reduce power loss.
The minimum operating temperature is -40°C.
It is available in reel packaging for automated assembly processes.
This model is suitable for automotive systems, power supplies, and DC/DC converters.
