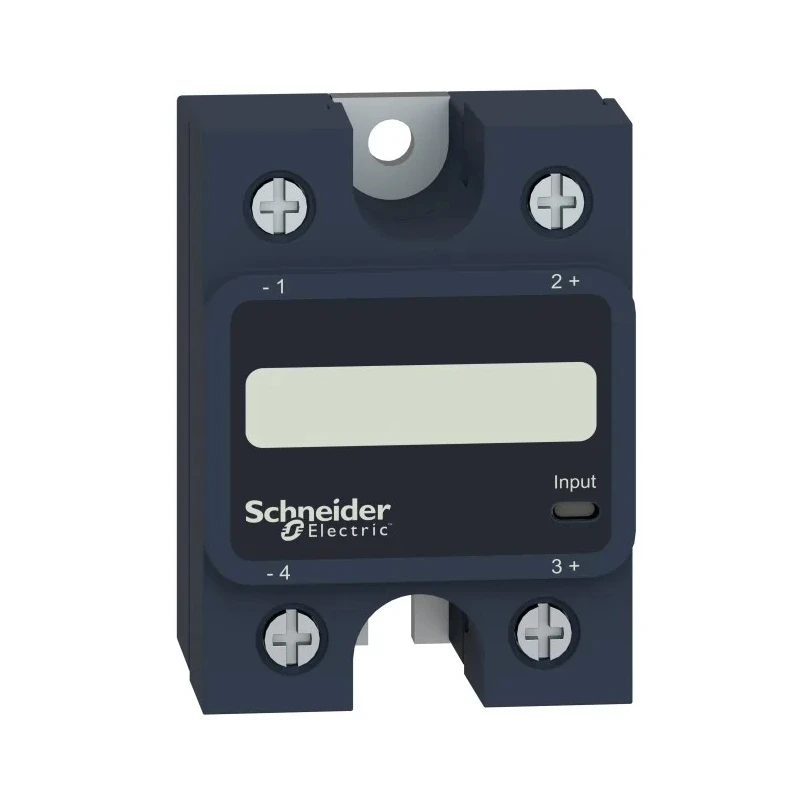

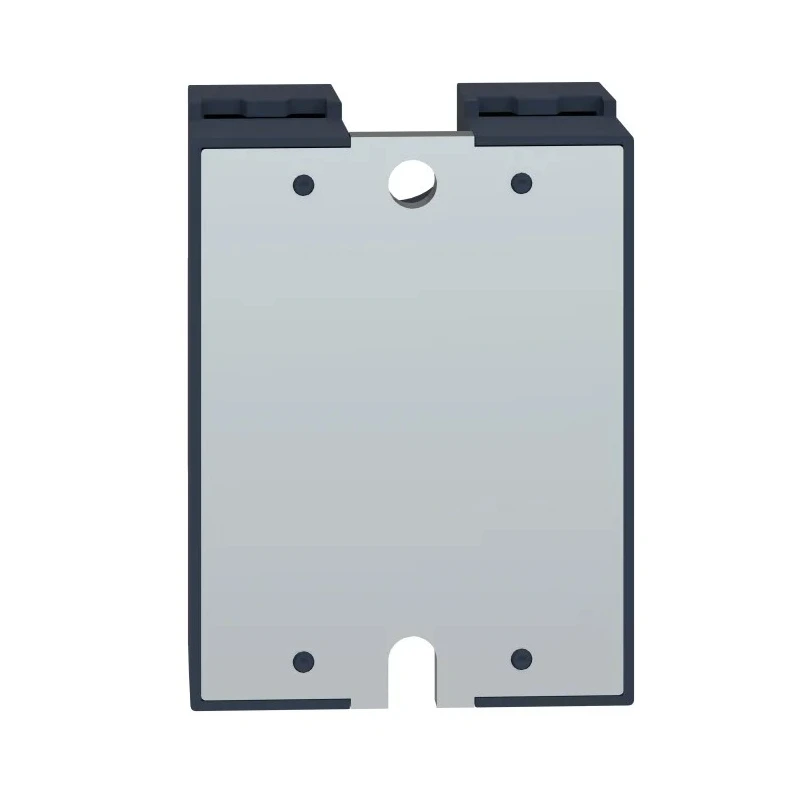

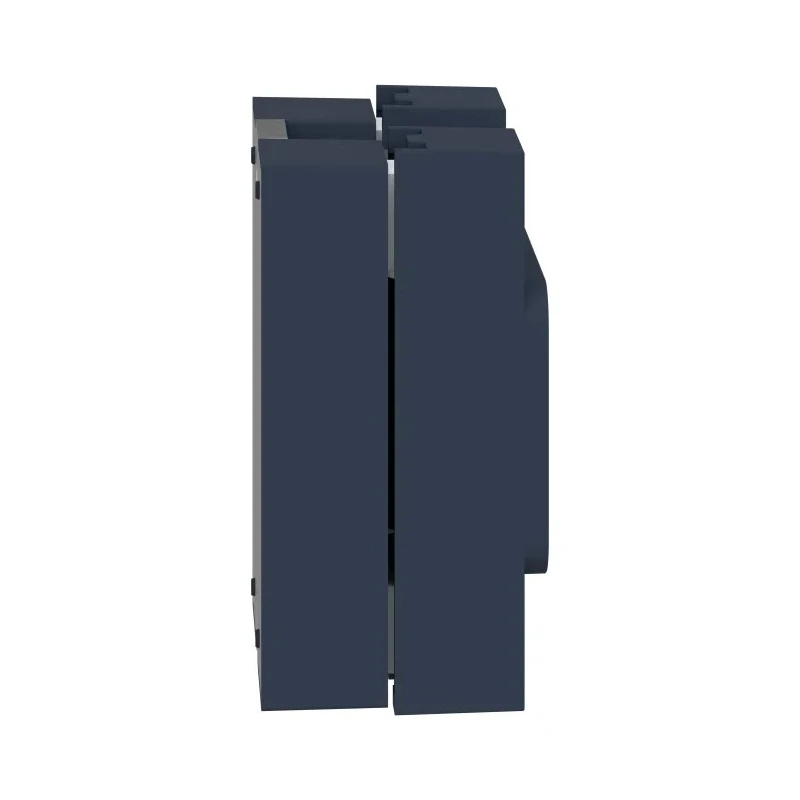

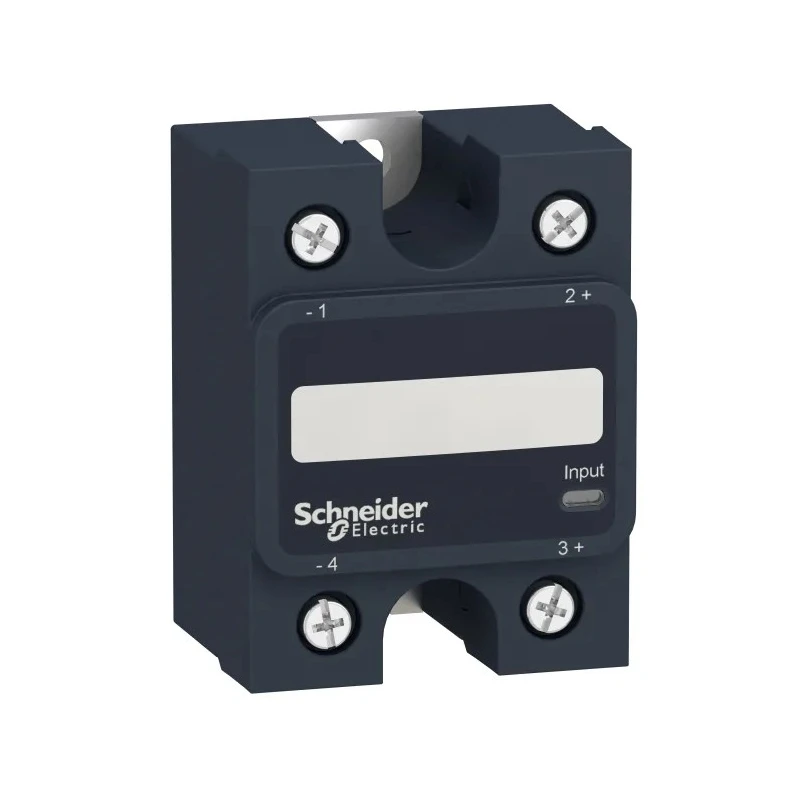

Schneider Electric Harmony Relay Series Solid State Relay, 25 A Load, Panel Mount, 150 V dc Load, 32 V dc Control SSP1D425BD
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Schneider Electric |
| Height | 58.9mm |
| Length | 44.5mm |
| Model | SSP1D425BD |
| IP Rating | IP20 |
| Width | 34.29mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | Harmony Relay |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 50pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Switching |
| Maximum Load Current | 25A |
| Standards/Approvals | CE, EAC, CSA, REACH, EN/IEC 62314, UL, RoHS |
| Maximum Load Voltage | 150V dc |
| Minimum Load Voltage | 1V dc |
| Minimum Control Voltage | 3.5V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 0.3mA |
Key Features
- Employs MOSFET technology for efficient DC switching.
- Features zero voltage switching for reduced electrical noise.
- Panel mount with screw terminal for secure installation.
- High switching frequency ensures fast and precise control.
- Maintenance free with full electronic unlimited lifespan.
- Robust construction resistant to shock, vibration and contact contamination.
- Off-state leakage current of 0.3 mA with capacitance of 50 pF.
Product Description
Schneider Electric SSP1D425BD Harmony Relay Series Solid State Relay delivers high performance DC switching capabilities with a maximum load current of 25 A and maximum load voltage of 150 V dc. Designed for panel mounting, this solid state relay incorporates MOSFET technology to provide silent, reliable switching with zero mechanical wear.
The device features a screw terminal design for safe and reliable electrical connections and supports control voltages ranging from 3.5 V dc to 32 V dc. It operates efficiently with a switching function of zero voltage switching, minimizing electrical stress on components and extending operational life.
Compact in size, the relay measures 58.9 mm in height, 44.5 mm in length, and 34.29 mm in width, with an IP20 rating ensuring protection against access to hazardous parts. Operating temperature range extends from -40° C to 80° C, making it suitable for demanding industrial environments.
This solid state relay is maintenance free, provides fast and precise switching with high frequency capability, and is resistant to shock, vibration, and contact contamination. These features make it an ideal choice for automation, industrial machinery, packaging, HVAC, medical equipment, and textile machines requiring efficient and reliable DC load control.
Additional features include an off-state leakage current of 0.3 mA and output using SCR technology. The relay complies with standards including CE, EAC, CSA, REACH, EN/IEC 62314, UL, and RoHS, assuring quality and safety compliance. Country of origin is Mexico.
Employs MOSFET technology for efficient DC switching. Panel mount design with screw terminals for reliable connections. Zero voltage switching reduces electrical noise and component stress. Maintenance free with unlimited electronic lifespan.
Compact dimensions suitable for tight panel integration. Wide operating temperature range from -40° C to 80° C. Compliant with multiple international standards. Ideal for industrial automation, HVAC, packaging, and medical equipment.
Explore the Electronics & Electricals category on EnvMart for more Solid State Relays and automation components from leading manufacturers like Schneider Electric.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this solid state relay is 25 A.
It supports control voltages ranging from 3.5 V dc to 32 V dc.
The maximum load voltage for this relay is 150 V dc.
This model measures 58.9 mm in height, 44.5 mm in length, and 34.29 mm in width.
It features a panel mount design with screw terminals for secure installation.
The operating temperature range extends from -40°C to 80°C.
The off-state leakage current is 0.3 mA.
It employs zero voltage switching, which reduces electrical noise and stress on components.
This model has an IP20 rating, providing protection against access to hazardous parts.
It complies with several standards including CE, EAC, CSA, REACH, EN/IEC 62314, UL, and RoHS.
The output type is SCR (Silicon Controlled Rectifier).
It is suitable for applications in industrial automation, HVAC, packaging, medical equipment, and textile machines.
