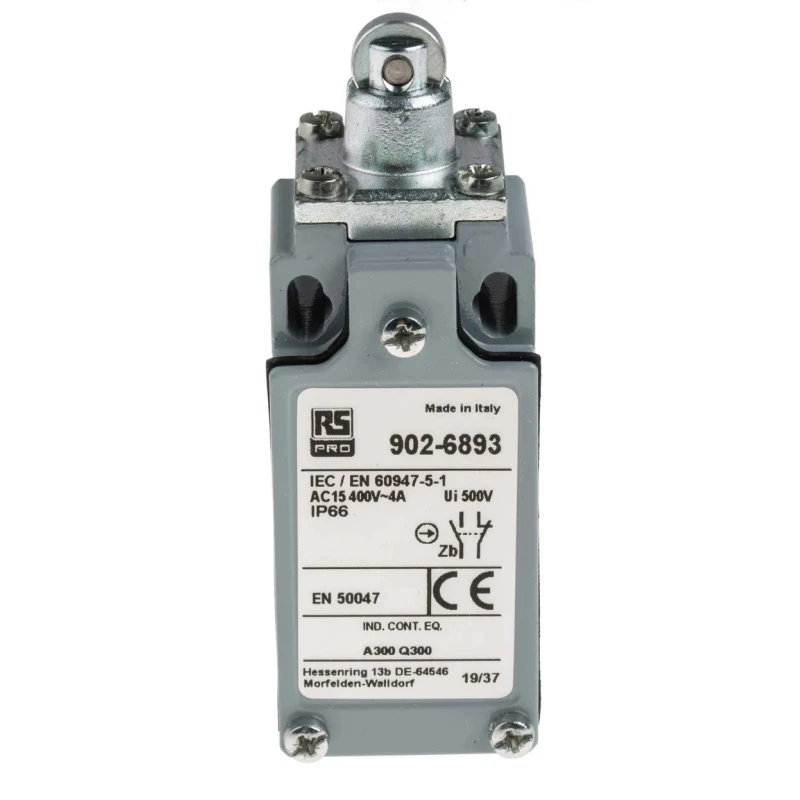

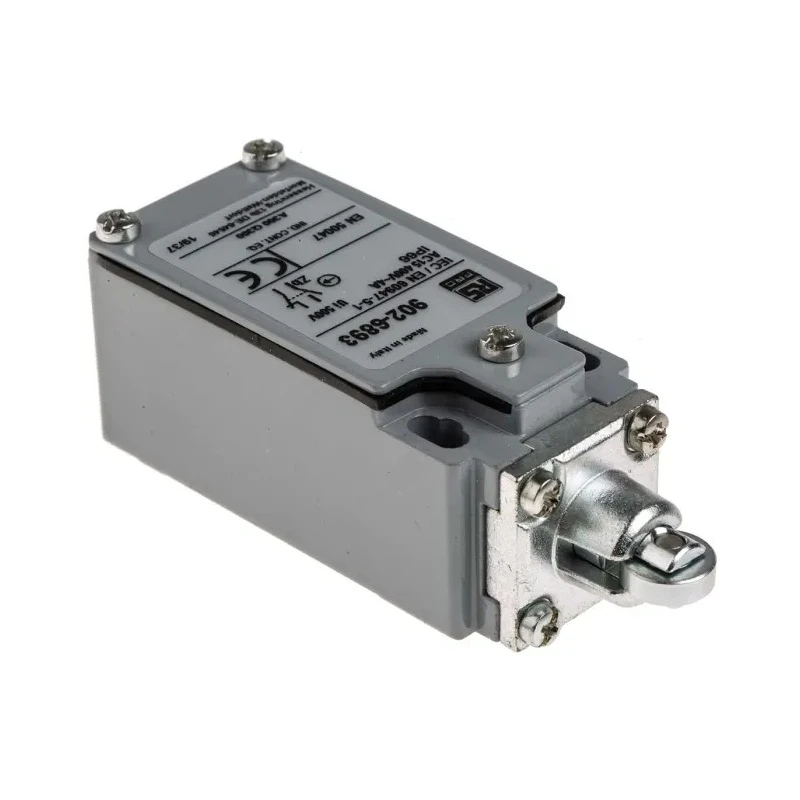

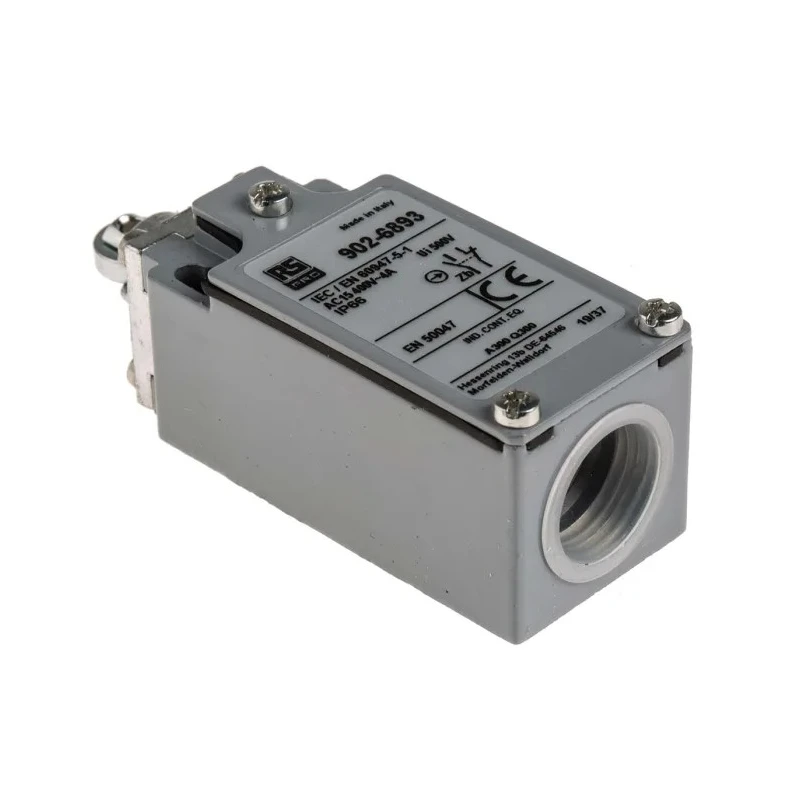

RS PRO Roller Plunger Limit Switch, 1 NO/1 NC, IP66 Zinc Alloy Housing, 400V AC, 10A IP66

RS PRO IP66 Roller Plunger Limit Switch 1 NO/1 NC is a highly reliable electromechanical limit switch designed for industrial automation and safety applications. Built with a robust zinc alloy housing, it offers excellent durability and resistance to magnetic interference. The roller plunger actuator ensures precise mechanical activation, suitable for detecting the position or presence of moving objects.

This switch supports contact configurations of one normally open (NO) and one normally closed (NC) circuit with snap action contact for fast switching response. It is capable of handling switching currents up to 10 amperes and can operate safely at AC voltages up to 400 volts, as well as DC voltages up to 250 volts. Its IP66 rating guarantees that the device is dust-tight and can withstand water jets from any direction, making it ideal for harsh industrial environments.

Designed for vertical mounting orientation and equipped with cable-type screw terminals, installation is straightforward and secure. The operational temperature range of -25°C to +70°C ensures functionality across diverse climates. With a mechanical life rating of 15 million operations, this limit switch delivers long-term reliable service in manufacturing, process control, conveyor systems, and safety interlock applications.

The product conforms to multiple global quality and safety standards such as CSA, EN, IEC, IMQ, RoHS, and UL, providing assurance of performance and compliance. The compact dimensions of 30.3 mm length, 86 mm height, and 32.5 mm depth make it suitable for installation in space-constrained control panels.

Ideal for use in industrial automation systems, machinery control, environmental monitoring, and safety switching, the RS PRO Roller Plunger Limit Switch combines rugged construction with precise electrical switching characteristics. Its zinc alloy housing and high IP rating extend its usability in demanding industrial, manufacturing, and commercial applications.

Roller plunger actuator ensures precise mechanical operation. 1 NO and 1 NC contact configuration with snap action. Durable zinc alloy housing for protection and magnetic resistance. Switched current capacity of up to 10 amperes.

IP66 rated for dust tightness and water resistance. Operating temperature from -25°C to +70°C. Mechanical life exceeding 15 million operations. Complies with CSA, EN, IEC, IMQ, RoHS, and UL standards. Vertical mounting with screw terminal type connection.

Compact size suitable for restrictive spaces. Explore more RS PRO Limit Switches and control components at EnvMart for reliable industrial automation solutions.
