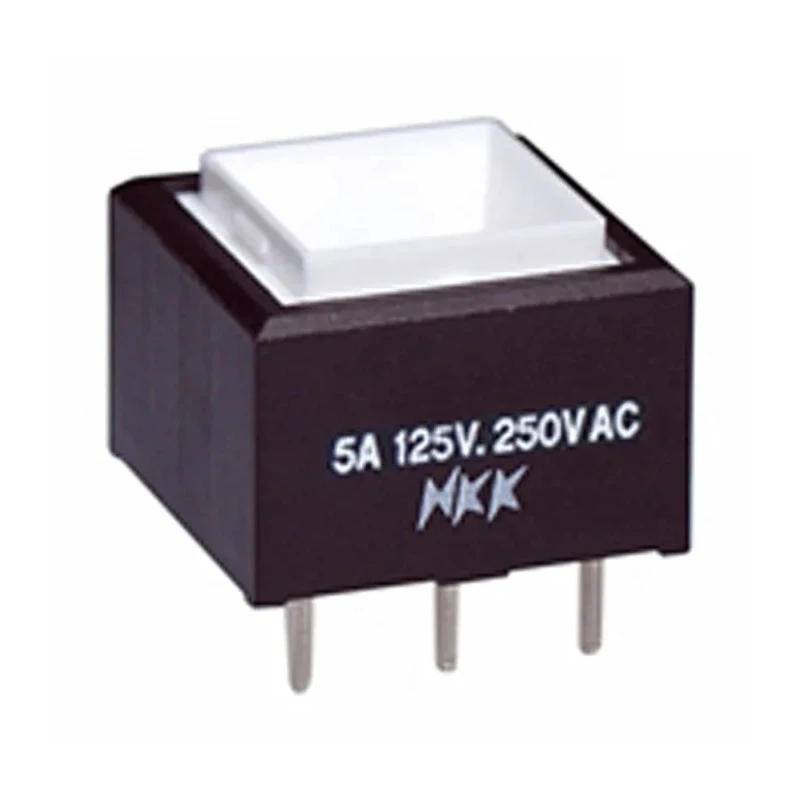

NKK Switches UB Series Push Button Switch, Latching, PCB Mount, SPDT, 30 V dc, 250 V ac, Cap Actuator Style UB16SKW03N
Specifications
| Country of Origin | China |
|---|---|
| Brand | NKK Switches |
| Model | UB16SKW03N |
| Mount Type | PCB |
| Series | UB |
| Maximum Operating Temperature | 50°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -25°C |
| Terminal type | PC Pin |
| Standards/Approvals | UL 94 V-0 |
| Switch Operation | Latching |
| Contact DC Voltage | 30V dc |
| Actuator Style | Cap |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
| Legend | Custom |
Key Features
- Features a cap style actuator for easy operation.
- Supports a switch contact current of up to 5 A.
- Designed for operating temperatures from -25°C to 50°C.
- Constructed with epoxy sealed terminals for durability.
- Complies with UL 94 V-0 standard for safety.
- Provides snap-in mounting for secure PCB installation.
- Non-illuminated push button switch for compact use.
- Manufactured in China and part of NKK's UB series.
Product Description
The NKK Switches UB16SKW03N is a high-quality push button switch designed for industrial and electronic applications requiring a latching mechanism. It operates with a single-pole double-throw (SPDT) contact configuration and is ideal for PCB mounting, offering reliable switching for control circuits.
This switch supports a contact voltage rating of 30 V dc and 250 V ac, making it versatile for various equipment. The cap actuator style ensures ergonomic operation, while the snap-in mounting design facilitates quick and secure installation on printed circuit boards.
Constructed with epoxy sealed terminals, the switch delivers enhanced resistance against environmental factors, contributing to long service life. Its operating temperature range from -25°C to 50°C allows usage across diverse conditions.
In terms of safety, the switch complies with UL 94 V-0 standards, assuring flame retardant properties. Although non-illuminated, it is manufactured as part of NKK's UB Series, known for durable and dependable pushbutton switches.
Features a cap style actuator for easy operation. Supports a switch contact current of up to 5 A. Designed for operating temperatures from -25°C to 50°C. Constructed with epoxy sealed terminals for durability. Complies with UL 94 V-0 standard for safety.
Provides snap-in mounting for secure PCB installation. Non-illuminated push button switch for compact use. Manufactured in China and part of NKK's UB series.
This switch is suitable for electronics manufacturing, automation panels, and industrial control systems requiring precise latching functionality with strong electrical ratings. Trusted for quality and compliance, it supports operators and technicians in various electrical assembly and control environments.
Explore more push button switches and components to complement your control system needs, available in EnvMart's extensive Electronics & Electricals category.
Explore more products in our Push Button Switches & Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The push button switch features a single-pole double-throw (SPDT) contact configuration, allowing for versatile switching applications.
It supports a maximum switch contact current of up to 5 A, making it suitable for various control circuits.
The switch has a contact voltage rating of 30 V dc and 250 V ac, providing flexibility for different electrical systems.
This model is designed to operate within a temperature range of -25°C to 50°C, allowing for use in diverse environments.
It features a snap-in mounting design for secure installation on printed circuit boards (PCB).
The actuator style is a cap, which ensures ergonomic operation for users.
The switch complies with the UL 94 V-0 standard, indicating its flame retardant properties for enhanced safety.
It is constructed with PC pin terminals, which are suitable for PCB mounting.
This push button switch is manufactured in China.
No, this model is a non-illuminated push button switch, designed for compact use.
It is suitable for electronics manufacturing, automation panels, and industrial control systems requiring precise latching functionality.
It is part of NKK's UB series, known for its reliable pushbutton switches.
