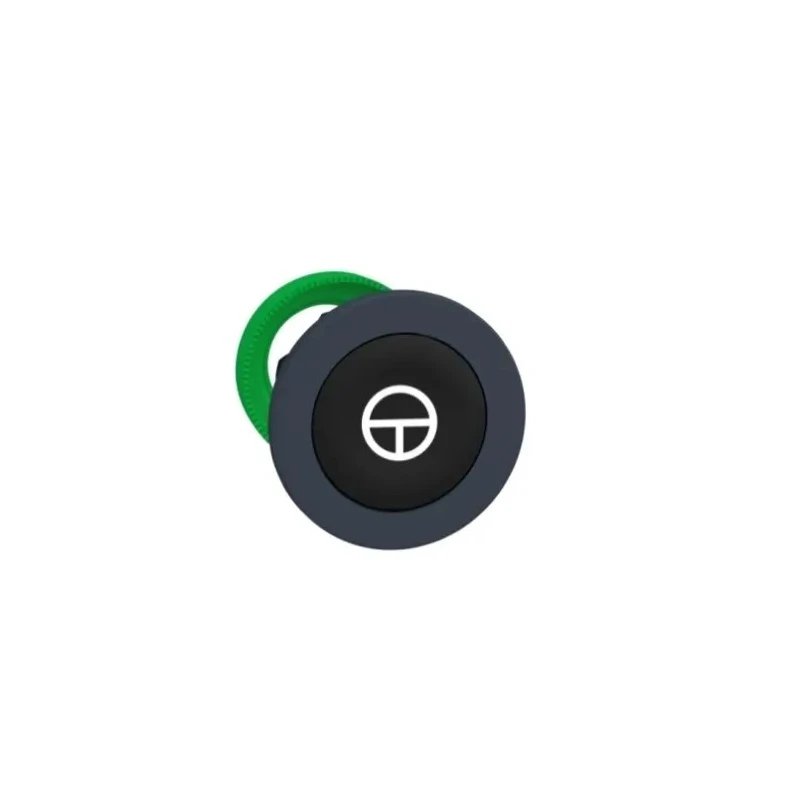

Schneider Electric Harmony Series Black Momentary Push Button Head 30 mm Cutout IP66 IP67 IP69K ZB5FA245

Schneider Electric ZB5FA245 black momentary push button head is a 36.6 mm diameter, round actuator designed for rugged industrial environments. It features a 30 mm cutout and offers superior protection with IP66, IP67, and IP69K ratings, ensuring dust-tight and water ingress resistance including high-pressure cleaning.

Constructed from high-quality plastic, this push button head maintains high chemical robustness against cleaning solvents, detergents, and cutting oils, making it suitable for food and beverage, marine, and other harsh conditions. The white 'T' marking provides clear visual identification, enhancing safety and usability on control panels.

Operational temperature ranges from -40°C to 70°C support a wide variety of settings, while high vibration resistance with shake-proof terminal screws ensures reliable performance in dynamic industrial environments. The design includes body and fixing collar components for easy and secure panel mounting.

The modular design supports multiple connection types such as screw clamp, connector, Faston connector, spring terminal, and printed circuit board mounting, providing flexibility and adaptability to varied electrical configurations.

Certified under UL Listed, CCC, CE, CSA, EAC, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, and UL 508 standards, this push button meets global quality and safety requirements.

Applications include industrial machinery, packaging, material handling, pumping systems, energy distribution panels, public works, commercial buildings, and infrastructure projects. Its rugged build and high ingress protection make it ideal for challenging settings including food processing and marine environments.

Black round push button with 30 mm cutout diameter for precise installation. Plastic material construction offers chemical and impact resistance. High ingress protection with IP66, IP67, and IP69K standards compliance. Wide operating temperature range from -40°C to 70°C.

Includes body and fixing collar for secure mounting. Multiple connection options for versatile electrical integration. Certified to major international electrical and safety standards. Suitable for varied industrial, commercial, and harsh environment applications.

This Schneider Electric push button head is part of the Harmony series, renowned for modular design and adaptability. For additional options of push button switches and components, explore the relevant categories on EnvMart.
