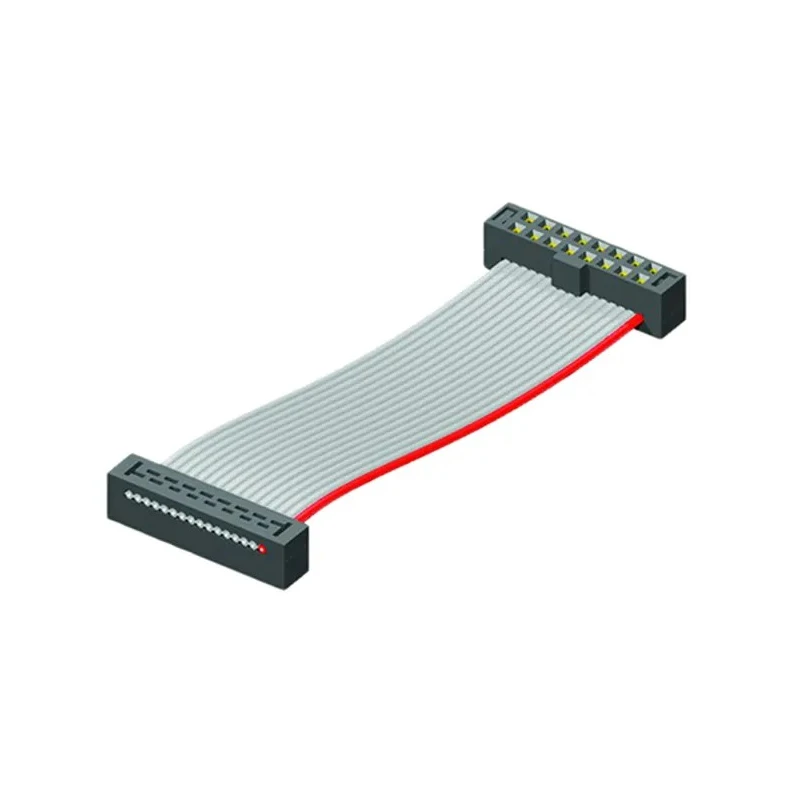

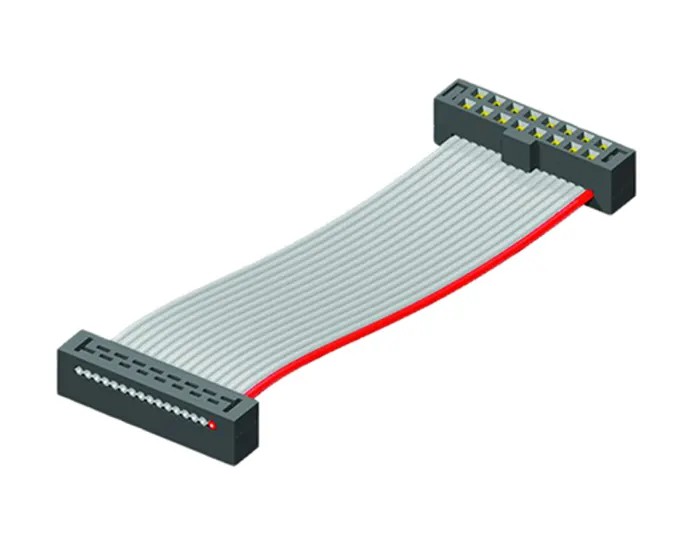

Samtec Flat Ribbon IDC Socket Cable Assembly 254 mm Length Tiger Eye IDC to Tiger Eye IDC TCSD-08-D-10.00-01-N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Model | TCSD-08-D-10.00-01-N |
| Cable Length | 254mm |
| Series | TCSD |
| Cable Type | Flat Ribbon |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | RoHS Compliant, UL |
| Connector Type A | Tiger Eye IDC |
| Connector Gender A | Female |
| Jacket Colour | Grey |
Key Features
- The cable assembly has a flat ribbon cable type ensuring compact connection.
- Female Tiger Eye IDC connectors at both ends provide reliable IDC socket connections.
- The cable jacket is made of durable grey Polyvinyl Chloride material.
- Complies with RoHS and UL standards for safety and quality assurance.
- Part of the TCSD series designed for reliable wire-to-board cable assembly applications.
- Suitable for industrial and automation electrical wiring where precise IDC connections are needed.
Product Description
Samtec TCSD-08-D-10.00-01-N is a Flat Ribbon IDC Socket Cable Assembly featuring a 254 mm long ribbon cable with Tiger Eye IDC socket connectors at both ends. This cable assembly is built for high-reliability IDC connections in industrial, automation, and electronic applications requiring precise wire-to-board interfacing.
The TCSD series cable assembly consists of a 28 AWG 7/36 stranded tinned copper wire insulated with Polyvinyl Chloride and configured as a flat ribbon cable with 2.00 mm pitch between conductors. Both connectors are female Tiger Eye IDC sockets with gold-plated contacts and a polarizing notch to ensure accurate mating and robust electrical connection.
Its grey PVC jacket enhances durability and protects the conductors from mechanical stress and environmental factors, ensuring a long service life. The product complies with RoHS and UL standards, guaranteeing conformity with environmental and electrical safety requirements.
This cable assembly is ideal for use in industrial automation wiring, electronic control systems, and equipment manufacturing requiring reliable IDC socket to socket cable solutions.
The cable length measures 254 mm, suitable for compact wiring setups. 28 AWG stranded copper conductor ensures effective signal transmission. Gold-plated Tiger Eye IDC contacts for corrosion resistance and conductivity. Polyvinyl Chloride jacket provides mechanical protection and flexibility.
Polarizing notch on connectors prevents incorrect mating. Samtec offers a wide range of complementary mating connectors like the TMM, TMMH, STMM, MMT, TW, MTMM, EHT, ETMM, and ZSTMM series headers for complete cable solutions.
Browse the Electronics & Electricals category on EnvMart for related wire-to-board cable assemblies and connector solutions.
Explore more products in our Ribbon Cable Assembly category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable assembly has a length of 254 mm.
It features female Tiger Eye IDC connectors at both ends for reliable IDC socket connections.
The cable jacket is made of durable grey Polyvinyl Chloride (PVC).
It complies with RoHS and UL standards for safety and quality assurance.
The cable assembly uses a 28 AWG stranded tinned copper wire.
The pitch between conductors is 2.00 mm.
It is suitable for industrial automation wiring, electronic control systems, and equipment manufacturing requiring reliable IDC socket connections.
Yes, it has a polarizing notch on the connectors to prevent incorrect mating.
The gold-plated contacts provide corrosion resistance and enhance conductivity.
It is manufactured in India.
This cable assembly is part of the TCSD series designed for reliable wire-to-board cable assembly applications.
The jacket color of the cable assembly is grey.
