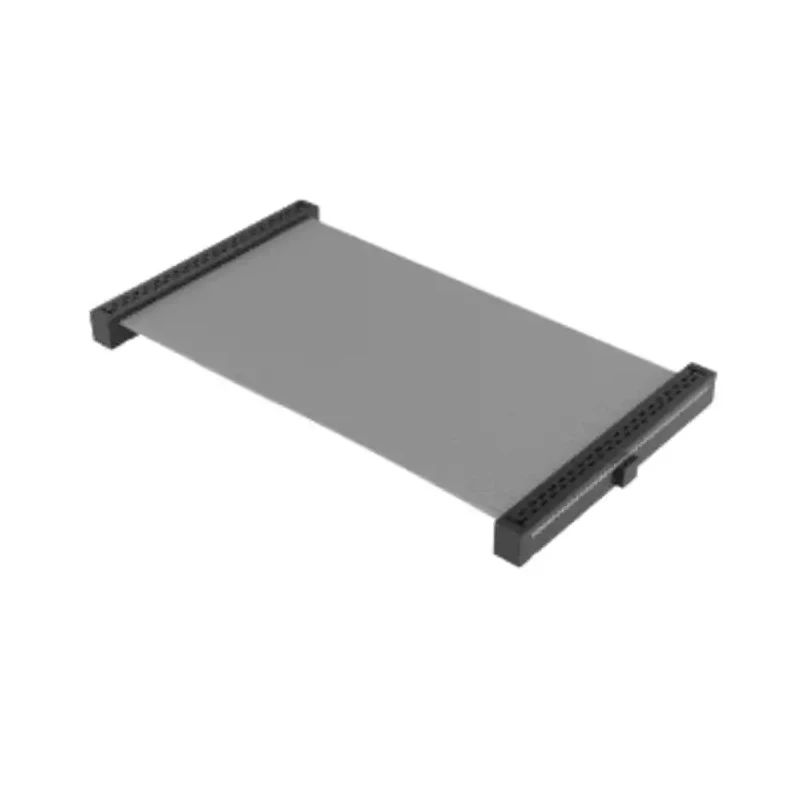

Samtec TCSD Series Flat Ribbon IDC Socket Cable Assembly 200 mm Length, PVC Jacket, Grey, 2.8A Current TCSD-20-D-08.00-01-N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Model | TCSD-20-D-08.00-01-N |
| Cable Length | 200mm |
| Series | TCSD |
| Cable Type | Flat Ribbon |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | RoHS Compliant, UL |
| Connector Type A | TCSD IDC |
| Connector Gender A | Female |
| Jacket Colour | Grey |
| Contact Gender A | Female |
Key Features
- Features a 40-way layout for multiple signal transmissions.
- Rated for 2.8A current suitable for low-power electrical systems.
- Compact 2mm pitch allows fitment in small conductor applications.
- Built-in polarising notch ensures proper cable orientation and prevents conductor damage.
- Gold-plated contacts for corrosion resistance and enhanced conductivity.
- Robust polyvinyl chloride (PVC) jacket in grey offers electrical insulation and durability.
- Wide operating temperature range from -40°C to +105°C for diverse applications.
- Dual Tiger Eye IDC termination for straightforward socket mounting.
Product Description
Samtec TCSD-20-D-08.00-01-N IDC Socket Cable Assembly is a high-quality flat Ribbon Cable Assembly designed for transferring signals securely between components in electrical and automation systems. This 200 mm length cable features a 40-way layout arranged in a flat ribbon format, making it optimal for compact installations where space is limited. The contacts are made of highly conductive, gold-plated tinned copper, ensuring excellent signal integrity and resistance to corrosion.
The cable assembly supports a current rating of 2.8A, well-suited for low-power applications. Its built-in polarising notch guarantees proper mating with connectors to protect the conductors. The robust grey PVC jacket provides electrical insulation along with mechanical protection, and the assembly is compliant with RoHS and UL standards.
The compact 2 mm pitch enables connection to small conductors, and Dual Tiger Eye IDC termination facilitates convenient mounting into sockets, enhancing installation efficiency.
This IDC socket cable assembly is versatile and widely applicable across industrial automation, audio-visual setups, household appliances, lighting control, robotics, and security systems.
40-way layout accommodates multiple signal transmissions. 2.8A current rating suitable for low-power electrical systems. Compact 2 mm pitch for small conductor fitment. Polarising notch prevents connector misalignment. Gold-plated contacts offer corrosion resistance.
Grey PVC jacket ensures electrical insulation and durability. Operating temperature range: -40°C to +105°C. Dual Tiger Eye IDC termination for easy socket mounting. Ideal for audio-visual, robotics, lighting, and household appliance applications.
Samtec cable assemblies are trusted components in industrial, laboratory, manufacturing, HVAC, and automation settings. Explore our extensive range of electronic connectors and cables on EnvMart for your specific electrical interconnection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 2.8A, making it suitable for low-power electrical systems.
The cable assembly has a length of 200 mm.
The jacket is made of polyvinyl chloride (PVC), which provides electrical insulation and protection.
The connectors feature a compact 2 mm pitch, allowing for fitment in small conductor applications.
This model uses TCSD IDC connectors with a female gender.
It operates within a temperature range of -40°C to +105°C, suitable for diverse applications.
Yes, it includes a built-in polarising notch that ensures proper cable orientation and prevents conductor damage.
This model is RoHS compliant and UL approved, ensuring it meets specific safety and environmental standards.
It is widely applicable in industrial automation, audio-visual setups, household appliances, lighting control, robotics, and security systems.
The assembly features a 40-way layout, accommodating multiple signal transmissions.
The contacts are made of gold-plated tinned copper, which enhances conductivity and provides corrosion resistance.
It utilizes Dual Tiger Eye IDC termination, facilitating straightforward socket mounting.
