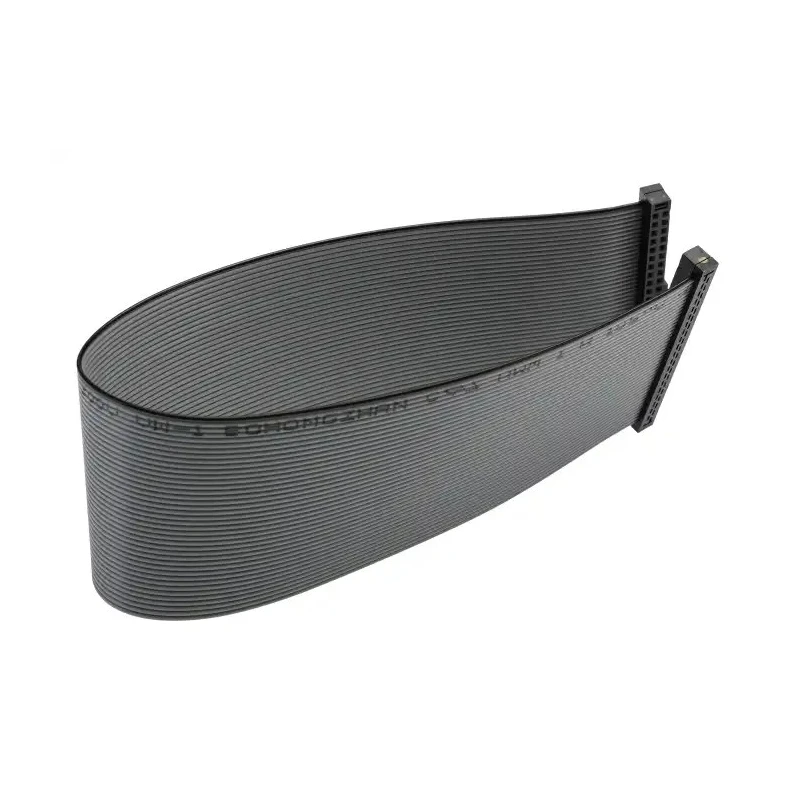

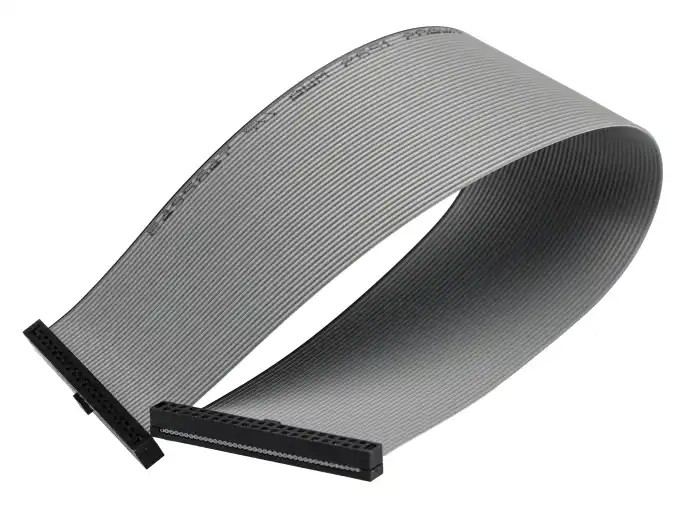

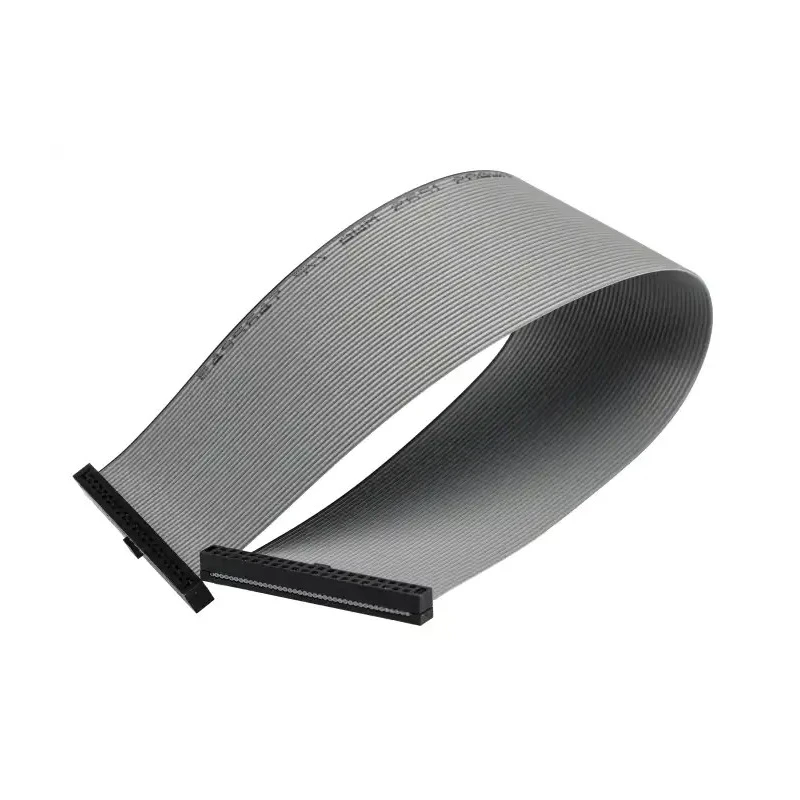

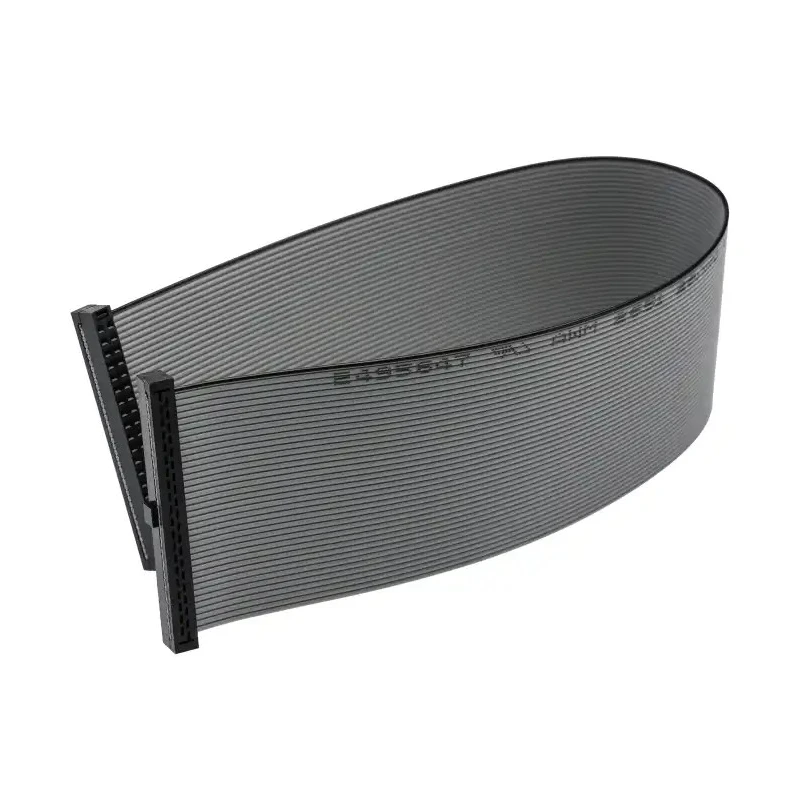

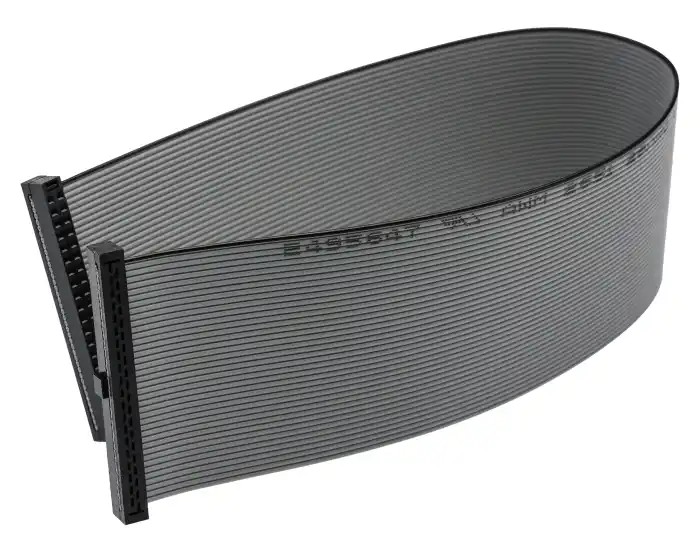

Samtec Flat Ribbon IDC Socket Cable Assembly 250 mm Length TCSD Series TCSD-20-D-10.00-01-N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Model | TCSD-20-D-10.00-01-N |
| Cable Length | 250mm |
| Series | TCSD |
| Cable Type | Flat Ribbon |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | RoHS Compliant, UL |
| Connector Type A | TCSD IDC |
| Connector Gender A | Female |
| Jacket Colour | Grey |
| Contact Gender A | Female |
Key Features
- The 40-way design supports robust power and data transfer in low-power systems.
- Current rating of 2.8A per pin ensures stable performance in demanding environments.
- Notch polarisation prevents incorrect mating during installation.
- Grey polyvinyl chloride jacket offers durability and blends with professional equipment.
- Operates effectively within a temperature range of -40°C to +105°C.
- Pre-terminated with Tiger Eye connectors for quick and hassle-free assembly.
- Contacts constructed from highly conductive beryllium copper for reliable current transmission.
- Incorporates black glass-filled polyester insulation for electrical hazard protection.
Product Description
Samtec TCSD-20-D-10.00-01-N Flat Ribbon IDC Socket Cable Assembly from the TCSD Series, featuring a 250 mm cable length and a 2 mm pitch, is engineered for precise and reliable wire-to-board connections. Its 40-way female IDC socket connectors facilitate multiple wire connections simultaneously, making it ideal for manufacturing, automotive engineering, consumer electronics, security devices, and various industrial applications requiring robust low-power data and power transmission.
The cable assembly features a polyvinyl chloride grey jacket that provides mechanical protection while maintaining a discreet appearance. It operates reliably in extreme environmental conditions, from -40°C to +105°C, ensuring consistency and durability. The notch polarisation design eliminates incorrect connector mating, enhancing system reliability.
Pre-terminated with Tiger Eye connectors, this cable reduces installation time and errors. Its contacts are made from highly conductive beryllium copper, guaranteeing efficient current flow. Additionally, it includes black glass-filled polyester insulation, which provides enhanced electrical hazard protection.
The 40-way female IDC socket configuration supports dense wiring setups. 2.8A per pin current capacity suits low-power applications effectively. Notch polarisation prevents mating errors. Grey PVC jacket ensures durability and aesthetics.
Temperature rating from -40°C to +105°C supports demanding operating environments. Pre-terminated with Tiger Eye connectors for ease of assembly. Beryllium copper contacts for stable conductivity. Black glass-filled polyester insulation protects against electrical hazards.
This Flat Ribbon IDC Socket Cable Assembly is widely applicable in industrial manufacturing plants, automotive engineering systems, consumer electronics devices, and security systems. It offers a dependable solution for connecting multiple wires with precision and safety, contributing to system robustness and longevity.
Browse more Ribbon Cable Assemblies at EnvMart for diverse industrial wire connection solutions.
Explore more products in our Ribbon Cable Assembly category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable length of this assembly is 250 mm.
It has a current rating of 2.8A per pin, suitable for low-power applications.
The contacts are made from highly conductive beryllium copper, ensuring reliable current transmission.
It operates effectively within a temperature range of -40°C to +105°C.
It incorporates black glass-filled polyester insulation for electrical hazard protection.
This model features female IDC socket connectors, specifically TCSD IDC connectors.
Yes, it is RoHS compliant and UL approved.
The jacket is made from polyvinyl chloride (PVC), which provides durability and a discreet appearance.
The notch polarization design prevents incorrect mating during installation, enhancing reliability.
It is suitable for manufacturing, automotive engineering, consumer electronics, and security devices.
This cable assembly belongs to the TCSD series.
The jacket color is grey, which blends well with professional equipment.
