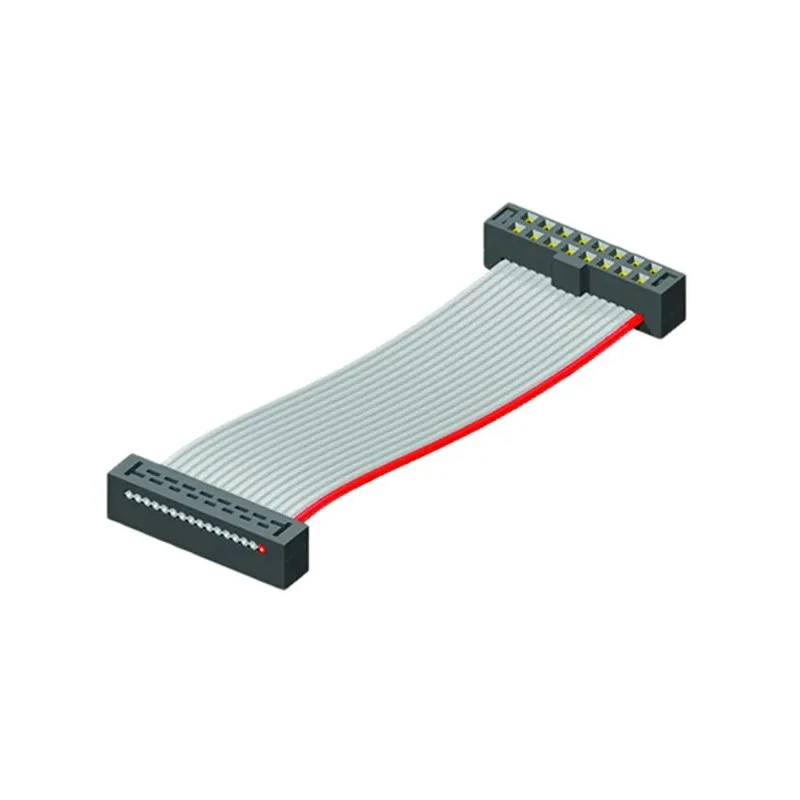

Samtec TCSD Series Flat Ribbon IDC Socket Cable Assembly 50 mm Length TCSD-08-D-02.00-01-N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Model | TCSD-08-D-02.00-01-N |
| Cable Length | 50mm |
| Series | TCSD |
| Cable Type | Flat Ribbon |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | RoHS Compliant, UL |
| Connector Type A | TCSD IDC |
| Connector Gender A | Female |
| Jacket Colour | Grey |
| Contact Gender A | Female |
Key Features
- Features 16 beryllium copper contacts ensuring low contact resistance of 15mΩ.
- Double-ended termination reduces installation time and complexity.
- Constructed with polyvinyl chloride (PVC) grey jacket for durable insulation.
- Designed with notch polarization to prevent reverse insertion and protect devices.
- Rated for 2.8A current per pin, ideal for light-duty electronic applications.
- Operates efficiently in temperature ranges from -40°C to +105°C.
- Ideal for use in server banks, radio and TV broadcast studios, and security systems.
- Meets RoHS and UL standards for electrical safety and environmental compliance.
Product Description
Samtec TCSD-08-D-02.00-01-N is a premium Flat Ribbon IDC Socket Cable Assembly from the TCSD Series, featuring a precise 2.00 mm pitch and a compact 50 mm cable length. Manufactured to provide dependable connectivity, this cable assembly includes 16 contacts made from beryllium copper, which offer a low contact resistance of 15 milliohms, ensuring consistent electrical performance.
The assembly is double-ended, allowing easy and quick installations without additional terminations. Encased in a robust polyvinyl chloride grey jacket, it provides excellent insulation and protection against electrical hazards. The integrated notch polarization design safeguards equipment by preventing incorrect mating during assembly, enhancing overall system reliability.
With a current rating of 2.8 Amperes per pin, the cable assembly is suitable for light-duty applications in diverse industrial environments. It reliably operates within a broad temperature range of -40°C to +105°C, making it well-suited to demanding conditions.
Key applications include server banks, broadcast studios for radio and television, and security and surveillance systems, where compact and secure signal routing is critical. The product is compliant with RoHS and UL standards, guaranteeing environmental responsibility and safety.
16 beryllium copper contacts with 15mΩ resistance. Double-ended termination for ease of installation. PVC grey jacket enhances durability and insulation. Notch polarization prevents reverse connection. 2.8A current rating per pin.
Operating temperature from -40°C to +105°C. Meets RoHS and UL certifications. Compact 50 mm cable length for tight spaces.
This Samtec TCSD Series cable assembly is an ideal choice for precise wiring connections in electrical and automation systems, electronics manufacturing, and data communication equipment. Users can rely on its durability and performance for critical industrial applications requiring miniaturized ribbon cabling solutions.
Explore more high-quality electrical wiring and cable solutions at EnvMart to meet your industrial and commercial needs.
Explore more products in our Ribbon Cable Assembly category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable length of this assembly is 50 mm.
It features 16 beryllium copper contacts, which provide a low contact resistance of 15 milliohms.
The TCSD-08-D-02.00-01-N is rated for 2.8 Amperes per pin.
It operates efficiently within a temperature range of -40°C to +105°C.
The jacket is constructed from polyvinyl chloride (PVC), which provides durable insulation.
The notch polarization design prevents reverse insertion, ensuring correct mating and protecting devices during assembly.
It meets RoHS and UL standards for electrical safety and environmental compliance.
This assembly uses a TCSD IDC connector type, with a female connector gender.
It is ideal for use in server banks, radio and TV broadcast studios, and security systems.
The double-ended termination reduces installation time and complexity, allowing for easier connections.
The country of origin for this cable assembly is India.
This cable assembly belongs to the TCSD Series.
