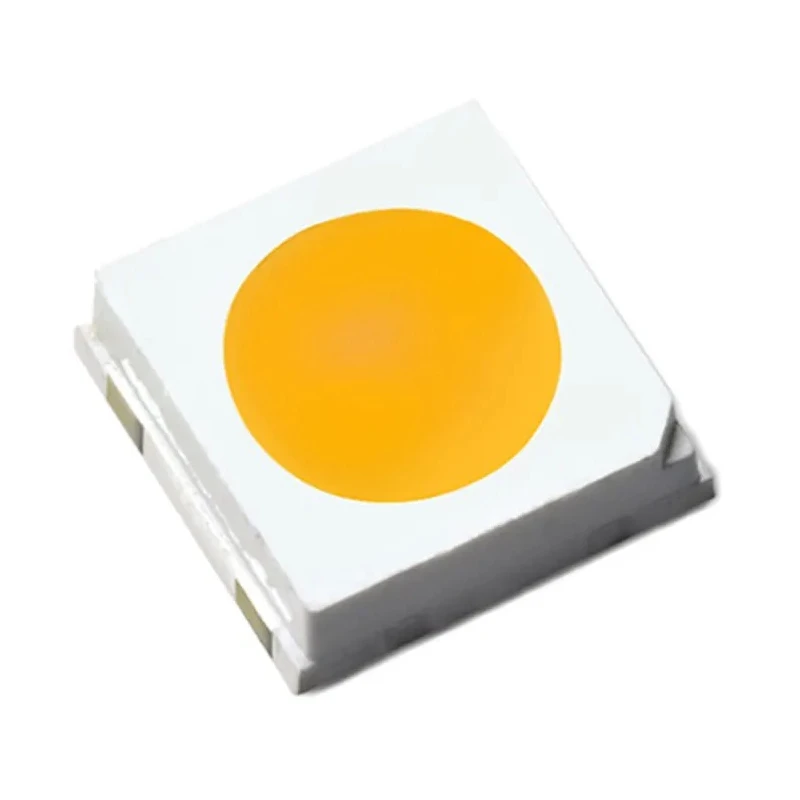

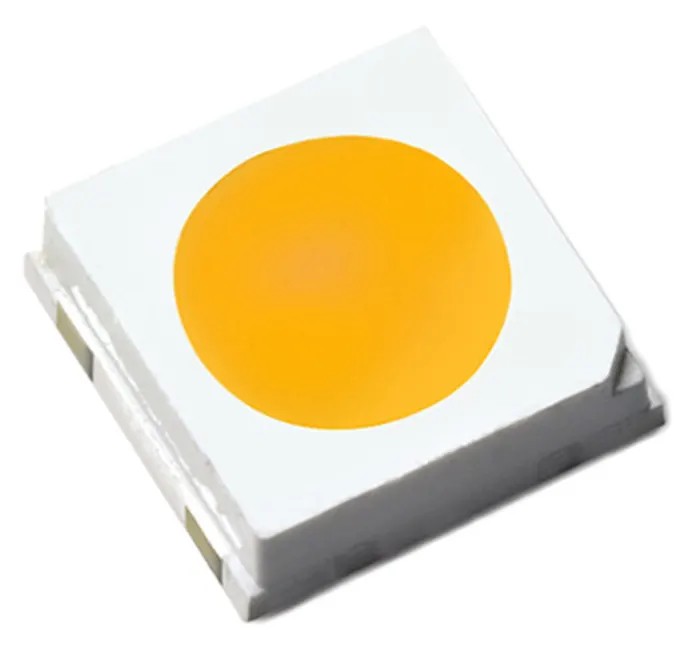

Lumileds High Efficacy White LED 3.2 V Surface Mount 3535 Package LUXEON 3535L MXA8-PW65-H001
Specifications
| Country of Origin | India |
|---|---|
| Brand | Lumileds |
| Model | MXA8-PW65-H001 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | LUXEON 3535L |
| Number Of Leds | 1 |
| Maximum forward current | 300mA |
| Viewing angle | 115 ° |
| Package Type | 3535 |
| Standards/Approvals | RoHS |

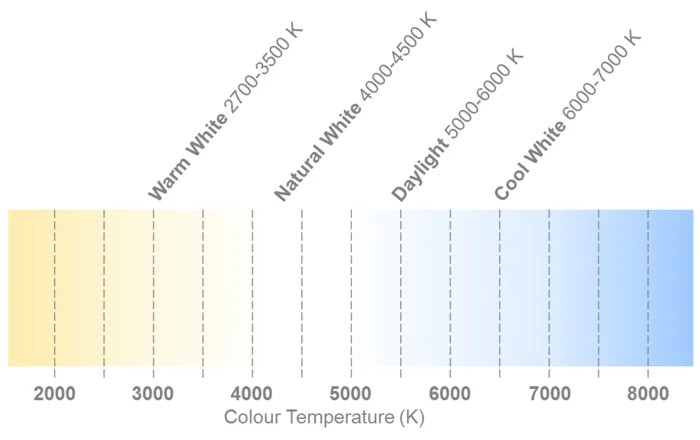

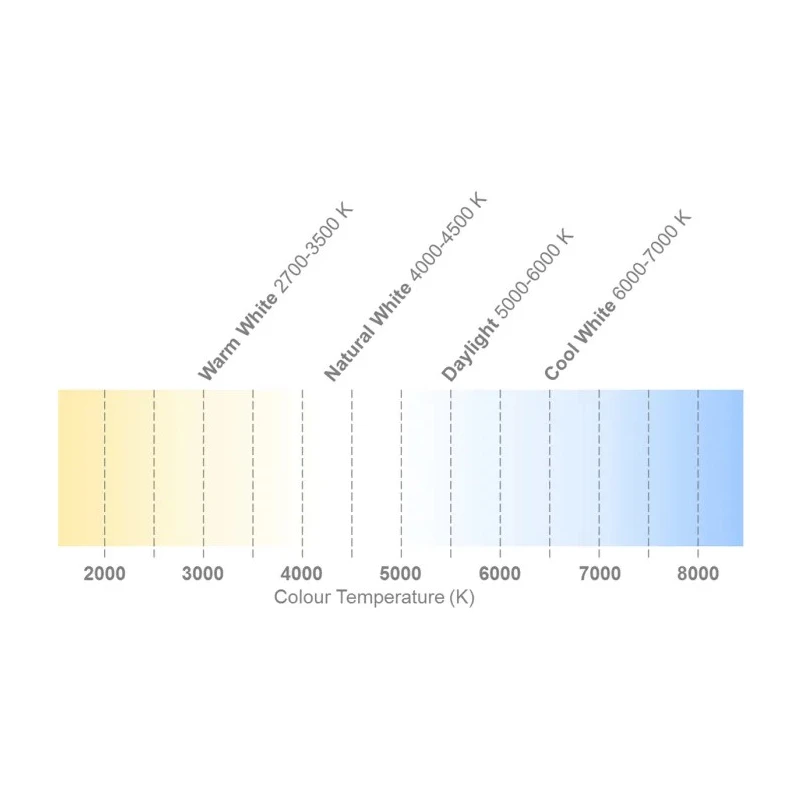

| Colour Temperature | 6500k |
| LED Colour | White |
| Forward Voltage | 3.2V |
| Number of Pins | 2 |
| Lens Dimensions | 3.7 x 3.5 x 0.8 mm |
| Lens Shape | Round |
| Lens Finish | Diffused |
| LED Luminous Flux | 48 lm |
| Colour Rendering Index CRI | 80% |
Key Features
- The LED features a white color output with a color temperature of 6500 K.
- It provides a luminous flux of 48 lumens for efficient illumination.
- Designed with a round diffused lens and a 115° viewing angle for wide light dispersion.
- The device supports 300 mA maximum forward current and has a color rendering index (CRI) of 80%.
- It is packaged in tape and reel format for easy automated assembly.
- The 3535 footprint allows for drop-in replacement compatibility in existing designs.
- Suitable for indoor and outdoor lighting applications due to its robustness and efficacy.
- Compliant with RoHS standards, ensuring environmental and safety compliance.
Product Description
Lumileds MXA8-PW65-H001 is a high efficacy white LED rated at 3.2 V forward voltage, packaged in the industry-standard 3535 surface mount footprint. This LED belongs to the LUXEON 3535L series, known for high quality light output and reliable performance. It features a round diffused lens with compact dimensions of 3.7 x 3.5 x 0.8 mm and a wide viewing angle of 115°, making it ideal for applications requiring broad illumination.
The LED emits white light with a color temperature of 6500 K and a high color rendering index (CRI) of 80%, ensuring accurate color representation. With a luminous flux of 48 lumens and a maximum forward current of 300 mA, it provides efficient and sustainable lighting performance. The device is packaged in tape and reel format to support automated manufacturing processes.
This product is suitable for a wide range of industrial and commercial lighting applications including architectural lighting, downlights, indoor area lighting, lamps, and outdoor lighting installations. Its compliance with RoHS regulations confirms its environmental friendliness and suitability for modern lighting systems.
White color LED with 6500 K color temperature. 3535 surface mount package with round diffused lens. Luminous flux of 48 lm with 80% CRI. Maximum forward current of 300 mA and 3.2 V forward voltage. 115° viewing angle for wide light distribution.
Tape & reel packaging ideal for automated assembly. RoHS compliant for ecological safety.
Lumileds LUXEON 3535L series LEDs are highly regarded for their quality and reliability in producing high luminous efficacy for sustainable lighting solutions. This model MXA8-PW65-H001 suits a variety of industrial, commercial, and architectural lighting applications, delivering effective and consistent illumination performance.
Choose from EnvMart's broad range of LED lighting components to fulfill your project requirements with quality assured products from leading brands like Lumileds.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous flux of this LED is 48 lumens, providing efficient illumination.
The maximum forward current for the MXA8-PW65-H001 is 300 mA.
This LED has a color temperature of 6500 K, producing a white light output.
The forward voltage of the MXA8-PW65-H001 is 3.2 V.
This LED is packaged in a tape and reel format, suitable for automated assembly.
The lens dimensions are 3.7 x 3.5 x 0.8 mm.
The color rendering index (CRI) of this LED is 80%, ensuring accurate color representation.
Yes, it is compliant with RoHS standards, ensuring environmental and safety compliance.
This model is suitable for a variety of applications including architectural lighting, downlights, indoor area lighting, and outdoor lighting installations.
The MXA8-PW65-H001 contains 1 LED in its package.
The lens shape of this LED is round, designed for effective light diffusion.
