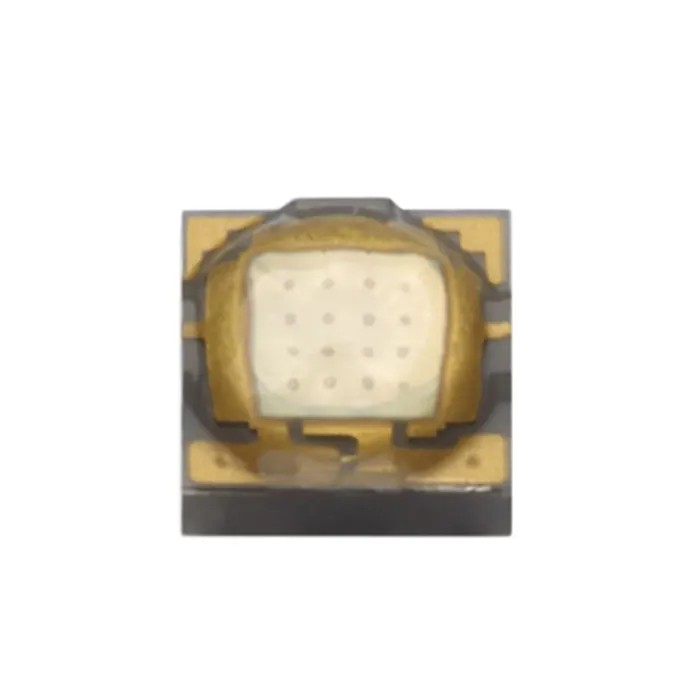

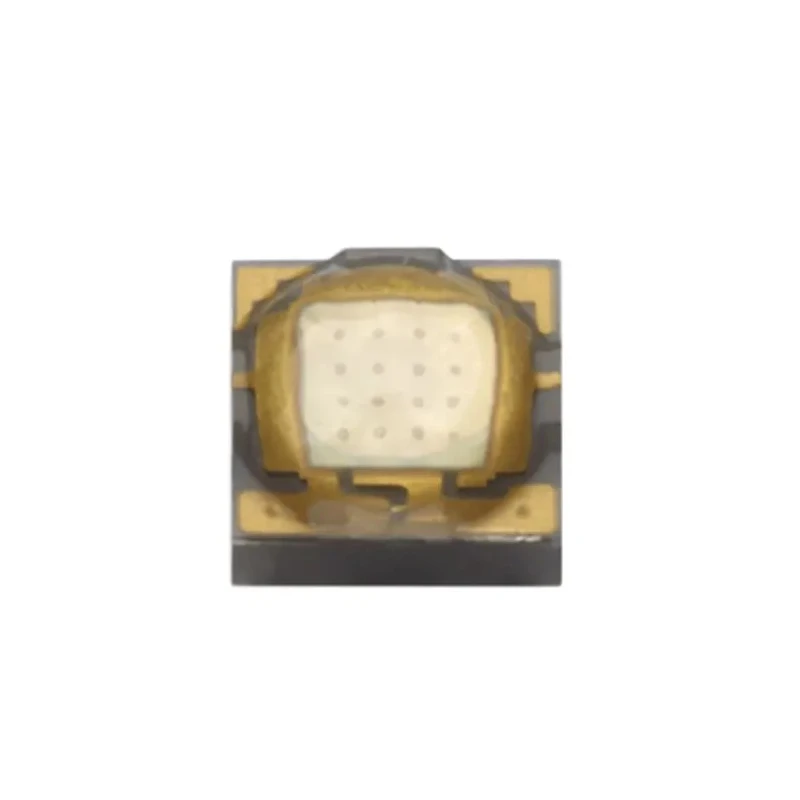

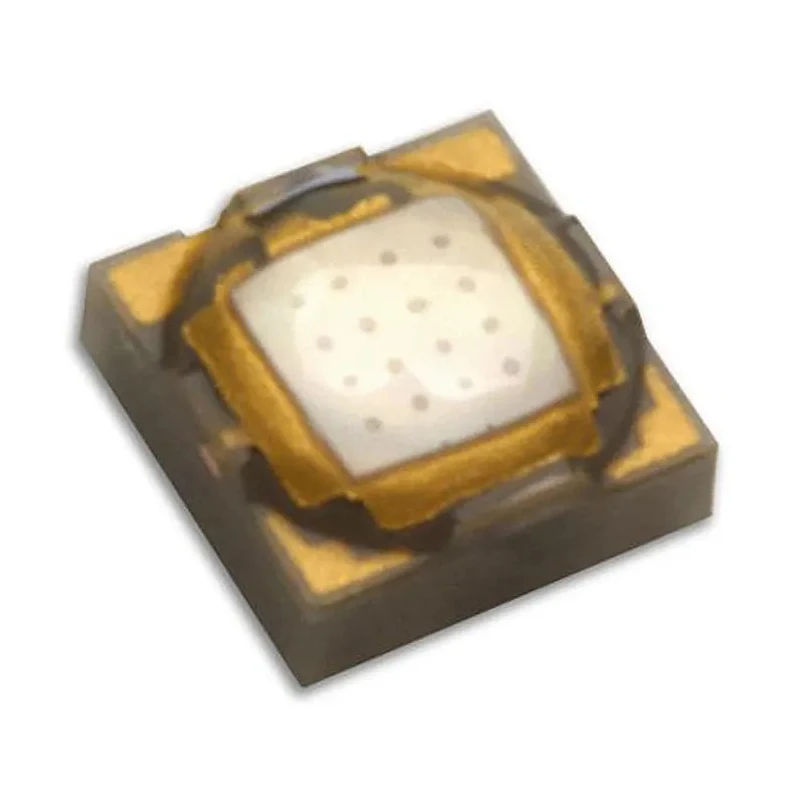

Lumileds 2.9 V Blue LED 0707 Surface Mount LUXEON C L1C1-BLU1000000000

Lumileds L1C1-BLU1000000000 is a high-performance 2.9 V Blue LED from the LUXEON C series. This 0707 surface mount LED features a compact package size of 2 x 2 x 1.35 mm with a low-profile, round dome lens design.

Operating at a maximum forward current of 1050 mA and a forward voltage of 2.9 V, it emits a luminous flux of 37 lumens. The LED provides a wide 150° viewing angle for excellent light distribution suitable for diverse lighting applications.

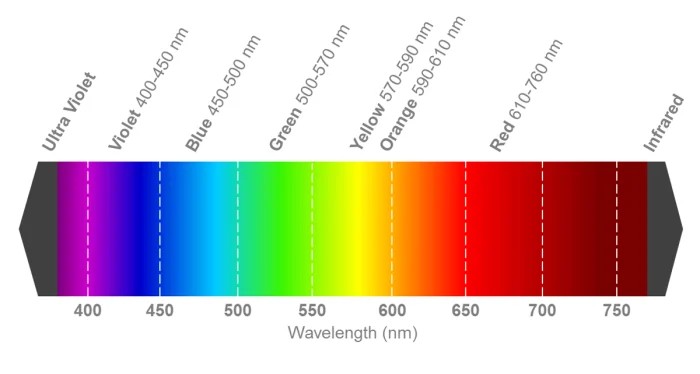

The blue LED has a dominant wavelength of 475 nm, delivering vivid and consistent color output. This product complies with RoHS environmental standards, reflecting its suitability for eco-conscious designs.

L1C1-BLU1000000000 is designed for surface-mounted PCB assemblies, featuring 2 pins and a clear, colorless lens that enhances light transmission without distortion.

The compact size and high output make it ideal for applications such as architectural lighting, emergency vehicle lighting, horticulture lighting, and tuneable lamps where space is limited but high bright illumination is required.

Provides high luminous flux of 37 lm for superior brightness. Compact 2 x 2 x 1.35 mm package with low profile round dome lens. Operating at a forward voltage of 2.9 V and maximum forward current of 1050 mA. Features a wide viewing angle of 150 degrees for broad illumination coverage.

Complies with RoHS standards ensuring environmental safety. Dominant wavelength at 475 nm delivers vivid blue coloration. Surface mount with 2 pins for easy PCB integration. Clear lens finish and colorless lens for optimal light transmission.

This Lumileds LED is recommended for industrial, architectural, horticultural, and emergency lighting systems. Explore EnvMart's extensive range of LEDs and electronic components for all your lighting and optoelectronic needs.
