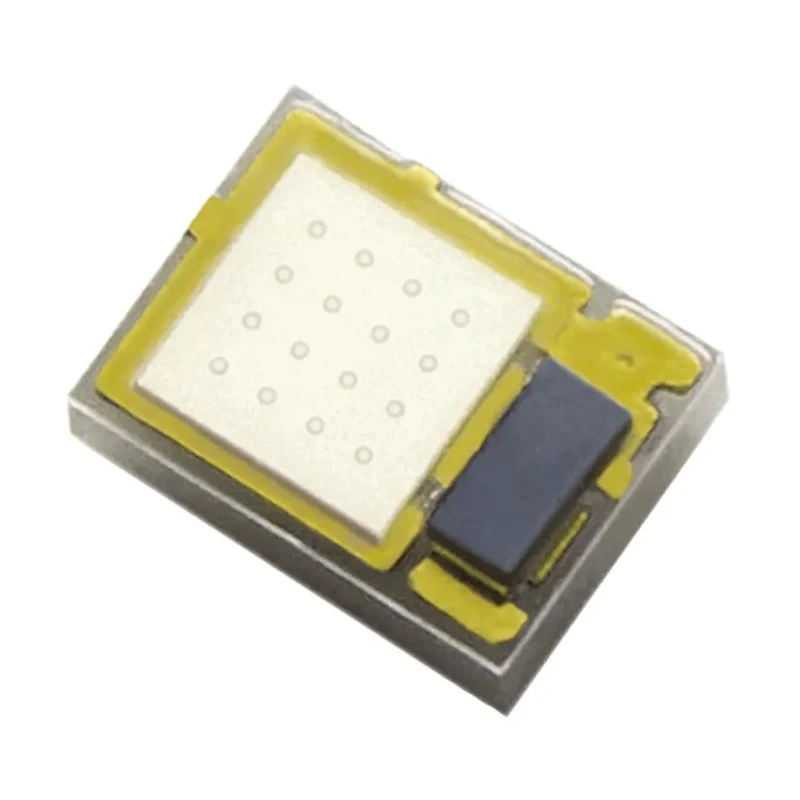

Lumileds 2.15 V Red LED 0705 Surface Mount LUXEON Z LXZ1-PD01
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Lumileds |
| Model | LXZ1-PD01 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | LUXEON Z |
| Maximum forward current | 1000mA |
| Viewing angle | 120 ° |
| Package Type | 0705 |
| Lens Colour | Colourless |
| Standards/Approvals | RoHS Directive 2011/65/EU, REACH (EC) 1907/2006 |
| LED Colour | Red |
| Dominant Wavelength | 627nm |
| Forward Voltage | 2.15V |
| Number of Pins | 2 |
| Lens Dimensions | 1.3 x 1.7 x 0.66 mm |
| Lens Shape | Round |
| LED Luminous Flux | 100 to 200 lm |
| High drive current | 1A (InGaN) and 0.7A (AlInGaP) |
| Enables customisable light sources | linear, rectangular, circular, etc. and therefore smaller/unique luminaire designs |
Key Features
- The ultra-compact LUXEON Z series offers a 2.2 mm² footprint for dense LED array configurations.
- High drive current capacity of up to 1A (InGaN) ensures bright illumination.
- Provides 100 to 200 lumens luminous flux with a dominant wavelength of 627 nm.
- Features a round, colourless lens with dimensions of 1.3 x 1.7 x 0.66 mm for precise light control.
- Viewing angle of 120 degrees enhances wide-area lighting coverage.
- Complies with RoHS Directive 2011/65/EU and REACH regulations for safety and environmental standards.
- Packaged on tape and reel to support automated mounting and production efficiency.
- Ideal for applications including architectural lighting, stage lighting, emergency vehicle lighting, and specialty lighting solutions.
Product Description
Lumileds LXZ1-PD01 2.15 V Red LED 0705 Surface Mount is part of the LUXEON Z series, which delivers ultra-compact, high-power LEDs suitable for various industrial and commercial lighting applications.
This component features a small 1.3 x 1.7 x 0.66 mm package and can be used to create specialized mono-colour or multi-colour LED arrays. Its 2.2 mm² footprint allows mounting up to 250 LEDs per square inch, providing exceptional lumens per square millimeter for maximum light density.
Designed for high drive current up to 1A (InGaN) and 0.7A (AlInGaP), this LED provides luminous flux between 100 to 200 lumens with a dominant wavelength of 627 nm. The round, colourless clear lens and 120° viewing angle provide superior color mixing and beam control.
The LED is supplied in a tape and reel packaging format to facilitate efficient automated assembly processes. It adheres to strict environmental compliance standards including RoHS and REACH.
Applications include indoor and outdoor architectural lighting, entertainment and stage lighting, emergency vehicle lights, and remote phosphor light sources. Its customizable shapes enable innovative luminaire designs including linear, rectangular, and circular arrangements.
The ultra-compact footprint supports high-density LED arrays for advanced lighting designs. High forward current capacity supports bright and efficient illumination. Wide viewing angle ensures broad coverage for various lighting needs.
Environmental compliance ensures safe and sustainable use. Tape and reel packaging supports automation in production lines. Suitable for professional applications in industrial, architectural, and specialty lighting fields.
Explore Lumileds and the LUXEON Z series for advanced LED lighting solutions on EnvMart.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this model is 1000 mA (1A) for InGaN and 700 mA (0.7A) for AlInGaP.
This LED provides a luminous flux between 100 to 200 lumens.
The dominant wavelength of this model is 627 nm.
The viewing angle of this LED is 120 degrees, which enhances wide-area lighting coverage.
The lens dimensions are 1.3 x 1.7 x 0.66 mm.
It is packaged on tape and reel to support automated mounting and production efficiency.
This model supports surface mounting.
It complies with the RoHS Directive 2011/65/EU and REACH regulations for safety and environmental standards.
This LED is suitable for applications including architectural lighting, stage lighting, emergency vehicle lighting, and specialty lighting solutions.
This LED is part of the LUXEON Z series.
The package type for this model is 0705.
Yes, it enables customizable light sources in various shapes such as linear, rectangular, and circular, allowing for unique luminaire designs.
