Lumileds 12 V White LED Micro Footprint Surface LUXEON M LXR8-SW27

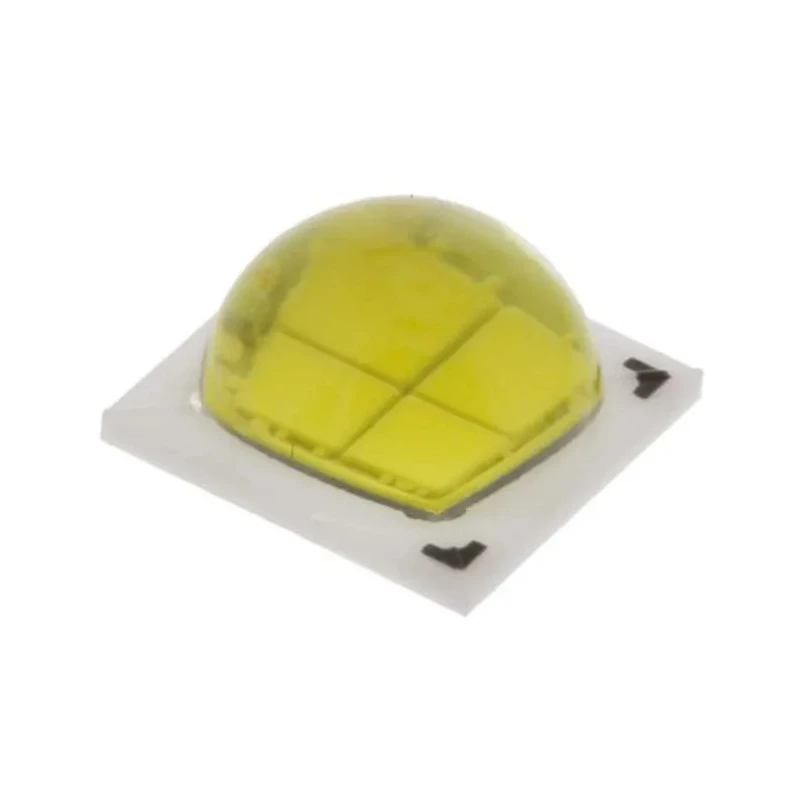

Lumileds LXR8-SW27 is a high-performance 12 V white LED from the LUXEON M series, featuring a compact micro footprint surface mount package measuring 7.0 x 7.0 x 3.75 mm with a round clear lens.

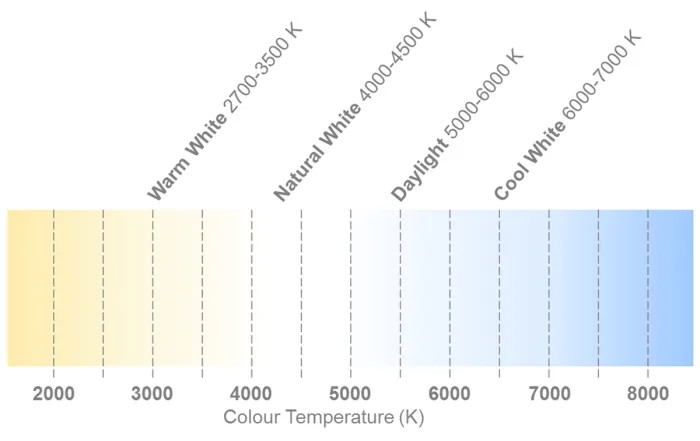

Designed for applications requiring high flux density and efficiency, this LED offers a luminous flux of 725 lumens and a colour temperature of 2700k, providing warm white light suitable for various industrial and commercial lighting solutions.

The device supports a maximum forward current of 1200 mA and operates at a forward voltage of 12 V, with a wide 120° viewing angle ensuring uniform illumination.

Equipped with 3 pins and supplied in tape and reel packaging, the LED ensures ease of integration into automated assembly processes. It also boasts a high colour rendering index (CRI) of 80%, maintaining colour accuracy and uniformity with minimal binning.

The Lumileds LXR8-SW27 exceeds Energy Star lumen maintenance requirements and is RoHS compliant, making it a reliable and environmentally friendly light source for indoor, outdoor, industrial, street lighting, downlights, and retrofit lighting applications.

The LED features a compact 7.0 x 7.0 x 3.75 mm micro footprint package with a clear round lens. It operates at 12 V with a maximum forward current of 1200 mA. Provides a luminous flux of 725 lm with 2700k colour temperature and 80% CRI.

Wide 120° viewing angle and 3-pin surface mount package. Designed for high efficiency with minimum colour binning and uniform intensity.

This product is ideal for installation in industrial machinery, commercial lighting systems, street lighting installations, and retrofit applications requiring reliable, high-quality white LED illumination. Explore more LED lighting solutions in the Electronics & Electricals category at EnvMart.
