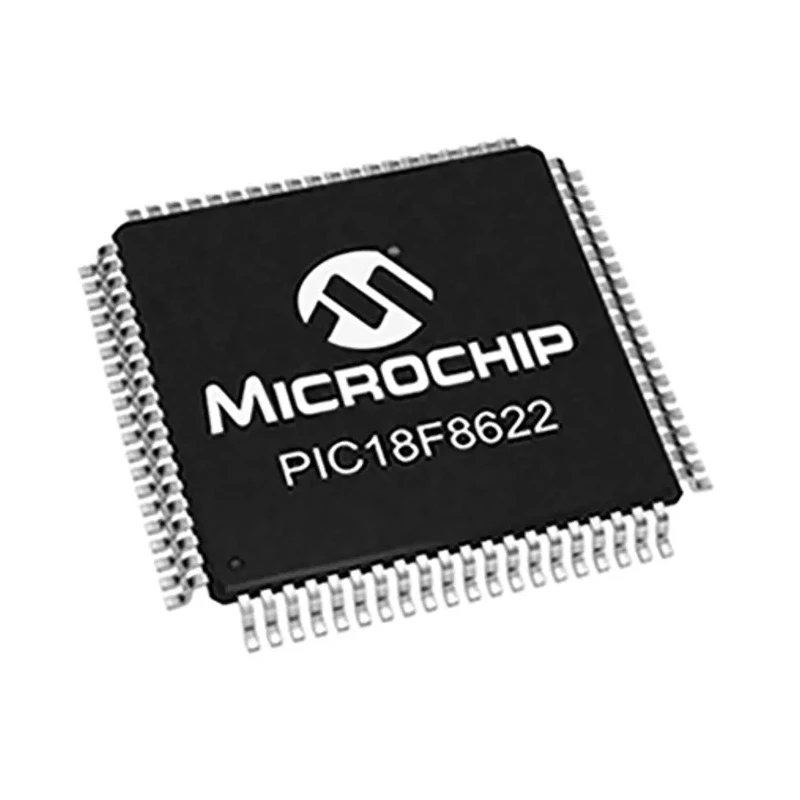

Microchip 8 bit PIC Microcontroller PIC18F8622-I/PT, 40 MHz, 64kB FLASH, 80-Pin TQFP PIC18F8622-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 12mm |
| Model | PIC18F8622-I/PT |
| Width | 12mm |
| Mount Type | Surface |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Run | CPU On, Peripherals On |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 3.94kB |
| Standards/Approvals | RoHS |
| Pin Count | 80 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 40MHz |
| Number of Programmable I/Os | 24 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 64kB |
| Number of Timers | 5 |
| Instruction Set Architecture | Modified Harvard |
| ADCs | 16 x 10 Bit |
| Program Memory Type | FLASH |
| Watchdog Timer | 1.6 μA, 2V Typical |
| Wide operating voltage range | 2.0V to 5.5V |
| Timer1 Oscillator | 900 nA, 32 kHz, 2V |
| Idle | CPU Off, Peripherals On |
| Sleep | CPU Off, Peripherals Off |
Key Features
- Features a 64kB Flash program memory and 3.94kB RAM.
- Operates over a wide voltage range from 1.8V to 5.5V.
- Includes 16 analog-to-digital converter channels with 10-bit resolution.
- Supports multiple programming and debugging interfaces including ICSP and ICD.
- Designed with low power consumption modes including Idle and Sleep.
- Equipped with 24 programmable I/Os for versatile control applications.
- Incorporates advanced peripherals such as three ECCP modules and USART module.
- Meets RoHS compliance standards ensuring environmental safety.
Product Description
Microchip PIC18F8622-I/PT is a high-performance 8 bit PIC microcontroller from the PIC18F series featuring a maximum clock frequency of 40 MHz. It includes 64kB FLASH program memory and 3.94kB RAM, housed in an 80-Pin Thin Quad Flat Pack (TQFP) surface-mount package measuring 12mm by 12mm by 1.05mm.
This microcontroller is built on the Modified Harvard architecture with a versatile operating voltage range of 1.8V to 5.5V and a maximum power dissipation of 1W. Operating temperature range extends from -40°C to 85°C, suitable for various industrial and embedded applications.
Peripheral features include 16 channels of 10-bit ADCs, two analog comparators, five timers, ECCP and CCP modules for PWM and capture/compare functions, and multiple interrupt sources. Communication interfaces include a Master Synchronous Serial Port (MSSP) for SPI and I2C and an enhanced USART for asynchronous serial data transmission.
Power management capabilities offer ultra-low current consumption in Sleep, Idle, and Run modes, supporting XLP (Extreme Low Power) technology for energy-efficient designs. Additional reliability features include programmable brown-out reset and an extended watchdog timer for fault tolerance.
This device complies with RoHS standards, making it suitable for environmentally conscious electronic product designs. 64kB FLASH memory and 3.94kB RAM for program and data storage. 16 x 10-bit ADC channels for analog signal conversion.
Five timers and multiple interrupt sources for precise control. Communication support including SPI, I2C, and USART interfaces. Low power modes with extremely low current consumption. Package: Surface mount 80-Pin TQFP, dimensions 12mm x 12mm x 1.05mm.
Operating voltage: 1.8V to 5.5V, operating temperature: -40°C to 85°C.
This microcontroller is ideal for embedded systems, industrial automation, instrumentation, and other applications requiring efficient processing and versatile peripheral integration. Explore more Microcontrollers and electronic components on EnvMart for your project and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 40 MHz.
It operates over a voltage range from 1.8V to 5.5V.
This microcontroller features 64kB of FLASH program memory.
The dimensions of the 80-Pin TQFP package are 12mm x 12mm x 1.05mm.
The operating temperature range extends from -40°C to 85°C.
This model supports SPI, I2C, and USART communication interfaces.
It includes low power modes such as Sleep, Idle, and Run, supporting XLP technology for energy efficiency.
The maximum power dissipation for this microcontroller is 1W.
It is built on the Modified Harvard architecture.
Yes, it meets RoHS compliance standards, ensuring environmental safety.
