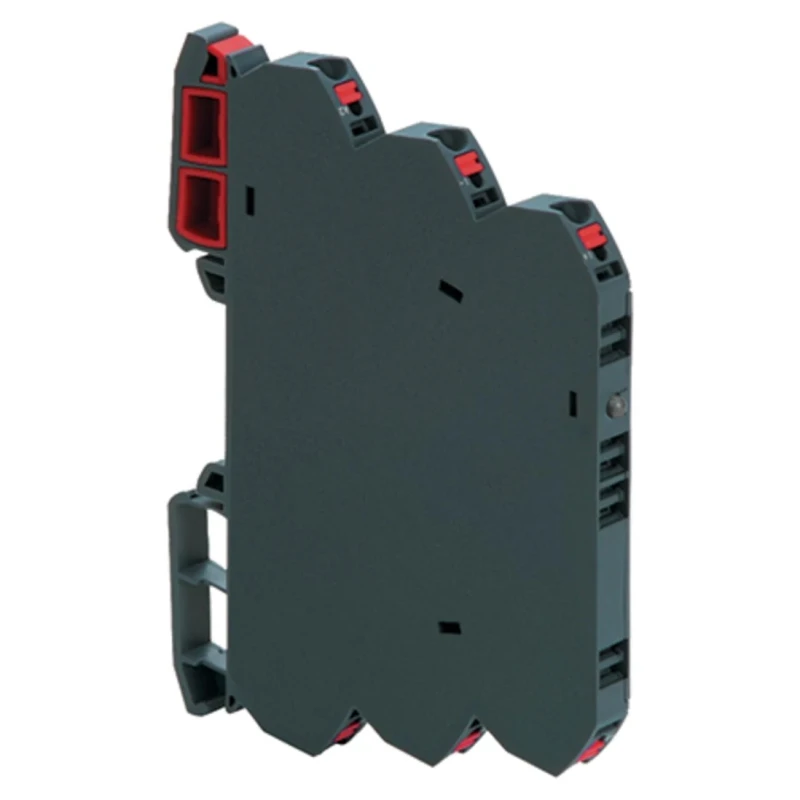

RS PRO Solid State Relay DIN Rail Mount 3 A Load 30 V Load 230 V Control 888-6938
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | RS PRO |
| Height | 93mm |
| Length | 6.2mm |
| Model | 888-6938 |
| IP Rating | IP20 |
| Width | 73mm |
| Mount Type | DIN Rail |
| Output type | MOSFET |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Terminal type | Push-in |
| Switching Function | DC Switching |
| Maximum Load Current | 3A |
| Standards/Approvals | UL, RoHS, CSA |
| Maximum Load Voltage | 30V |
| Minimum Load Voltage | 10V |
| Minimum Control Voltage | 110V |
| Maximum Control Voltage | 230V |
| Off State Leakage Current | 100μA |
Key Features
- Supports a maximum load current of 3 A for efficient power management.
- Compact design with dimensions 6.2 mm width, 93 mm height, and 73 mm length.
- Push-in terminal type ensures secure and easy installation.
- Operates reliably within a temperature range of -25°C to 60°C.
- Equipped with LED indicator for operation status monitoring.
- Features low off-state leakage current of 100 μA for energy efficiency.
- IP20 rated for protection against solid foreign objects.
- Compliant with UL, CSA, and RoHS standards for quality and safety.
Product Description
RS PRO 888-6938 Solid State Relay is a DIN Rail Mount device designed for industrial and automation applications requiring reliable DC switching with a maximum load current of 3 A and a maximum load voltage of 30 V. It operates at control voltages from 110 V to 230 V and uses MOSFET output technology ensuring fast and efficient switching.
This relay features a compact 6.2 mm width, 93 mm height, and 73 mm length enclosure, ideal for narrow spaces. The push-in terminal connection simplifies installation and maintenance in industrial electrical panels.
The solid-state switching function eliminates mechanical wear allowing vibration and impact resistance with long service life. It is suitable for applications operating between -25°C and 60°C, providing stable and low-loss performance with an off-state leakage current of 100 μA.
IP20 protection rating safeguards against solid objects, supporting safe use in control and automation environments. The included LED indicator provides clear visual feedback on operating status.
This product is UL, CSA, and RoHS certified, reflecting compliance with international safety and environmental standards. Manufacturing origin is Germany, assuring premium quality and reliability.
Supports a maximum load current of 3 A for efficient power management. Compact design with dimensions 6.2 mm width, 93 mm height, and 73 mm length. Push-in terminal type ensures secure and easy installation. Operates reliably within a temperature range of -25°C to 60°C.
Equipped with LED indicator for operation status monitoring. Features low off-state leakage current of 100 μA for energy efficiency. IP20 rated for protection against solid foreign objects. Compliant with UL, CSA, and RoHS standards for quality and safety.
Manufactured in Germany ensuring high build quality standards.
This RS PRO Solid State Relay is suitable for industrial automation, electrical control panels, manufacturing machinery, HVAC systems, and other applications requiring stable DC switching and reliable load control with compact DIN rail mounting. Browse the Electronics & Electricals category for more Solid State Relay solutions from RS PRO at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this relay is 3 A, allowing for efficient power management in various applications.
This solid state relay operates at control voltages ranging from 110 V to 230 V.
It operates reliably within a temperature range of -25°C to 60°C.
This model features a push-in terminal type, which ensures secure and easy installation.
The relay has a compact design with dimensions of 6.2 mm in width, 93 mm in height, and 73 mm in length.
It has an IP20 rating, providing protection against solid foreign objects.
The off-state leakage current is 100 μA, contributing to energy efficiency.
This relay is compliant with UL, CSA, and RoHS standards, ensuring quality and safety.
It provides DC switching functionality, suitable for various industrial applications.
It is manufactured in Germany, assuring quality and reliability.
This solid state relay uses MOSFET output technology, ensuring fast and efficient switching.
It is suitable for industrial automation, electrical control panels, manufacturing machinery, and HVAC systems requiring stable DC switching.
