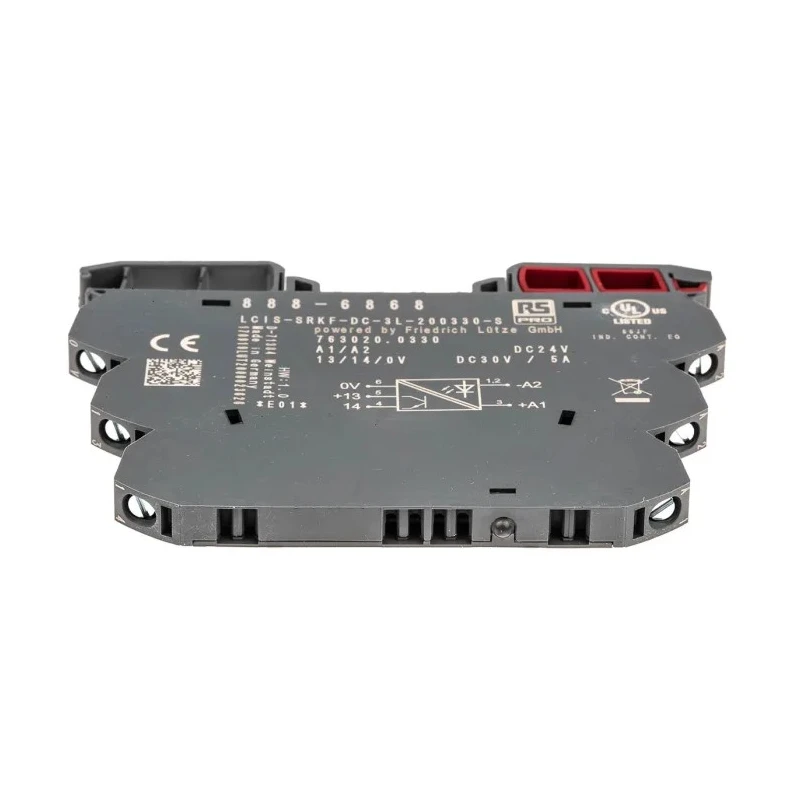

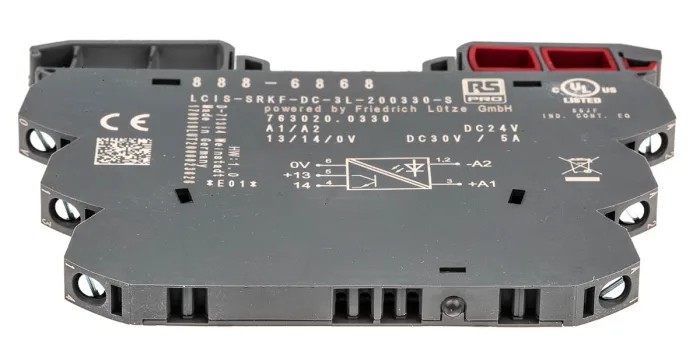

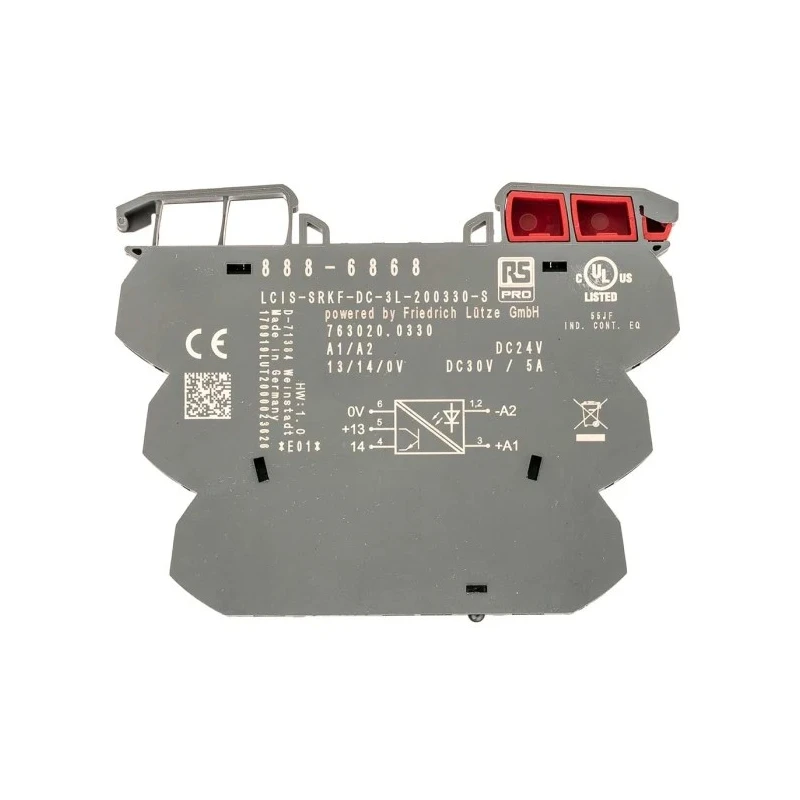

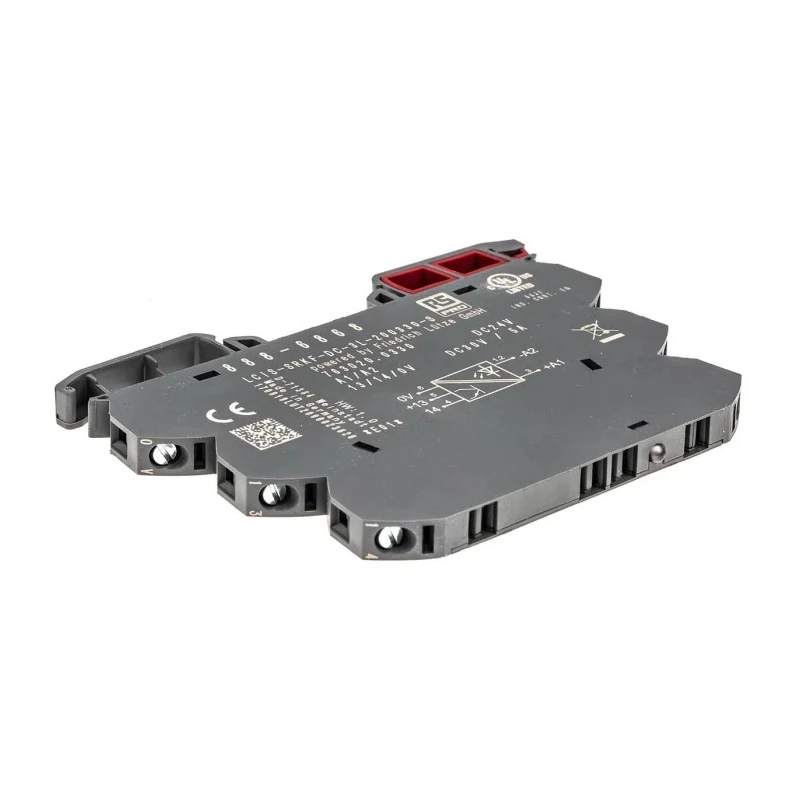

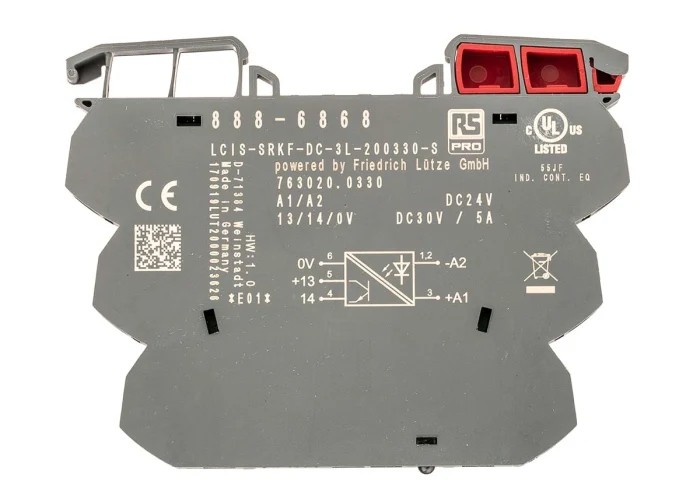

Weidmüller RS PRO Solid State Relay MOSFET, 5 A Load, DIN Rail Mount, 30 V Load, 30V Control 888-6868

Weidmüller 888-6868 Solid State Relay is a MOSFET-based DC switching device designed for industrial and commercial applications. It provides reliable switching for load currents up to 5 A and load voltages ranging from 10 V to 30 V. Its SPST (single pole single throw) normally open configuration enables quick and dependable operation without mechanical contact wear or bounce.

This DIN Rail mount solid state relay is constructed with screw terminals for secure wiring connections and includes a green LED indicator to easily verify operational status. The device incorporates a varistor to protect circuits from voltage spikes, enhancing reliability in demanding environments.

Compact dimensions (93 mm height, 6.2 mm length, 73 mm width) allow for efficient panel space usage. The relay functions effectively over a broad temperature range from -25°C to +60°C, suitable for varied industrial conditions.

Safety and environmental compliance is evident with certifications including CSA, RoHS, and UL, supported by manufacturing that meets ANSI/ESD S20.20 and BS EN 61340-5-1:2007 electrostatic control standards. This product, made in Germany, ensures high quality and durability required in automation, manufacturing, and control system applications.

Its MOSFET output type switches without physical contacts, eliminating contact bounce issues common in electromechanical relays, thereby extending lifespan. Suitable for fast switching electrical circuits where reliability and compact design are vital.

Operates with a maximum load current of 5 A and load voltage up to 30 V. DIN Rail mounting ensures secure and easy installation in industrial control panels. Utilizes MOSFET output for reliable and rapid switching with no mechanical wear.

Equipped with screw terminals and a green LED indicator for operational status. Wide operating temperature range from -25°C to 60°C suitable for varied environments. Designed with SPST contact configuration and DC switching function for precise control.

Includes a varistor for circuit protection from voltage surges. Compact size of 93 mm height, 6.2 mm length, and 73 mm width saves space in installations. Complies with CSA, RoHS, and UL standards ensuring safety and environmental responsibility.

Manufactured in Germany with quality assurance and tested under electrostatic control standards.

Ideal for industrial automation, electrical control systems, manufacturing equipment, and commercial electrical applications. Browse the full range of Weidmüller Solid State Relays on EnvMart for reliable switching solutions.
