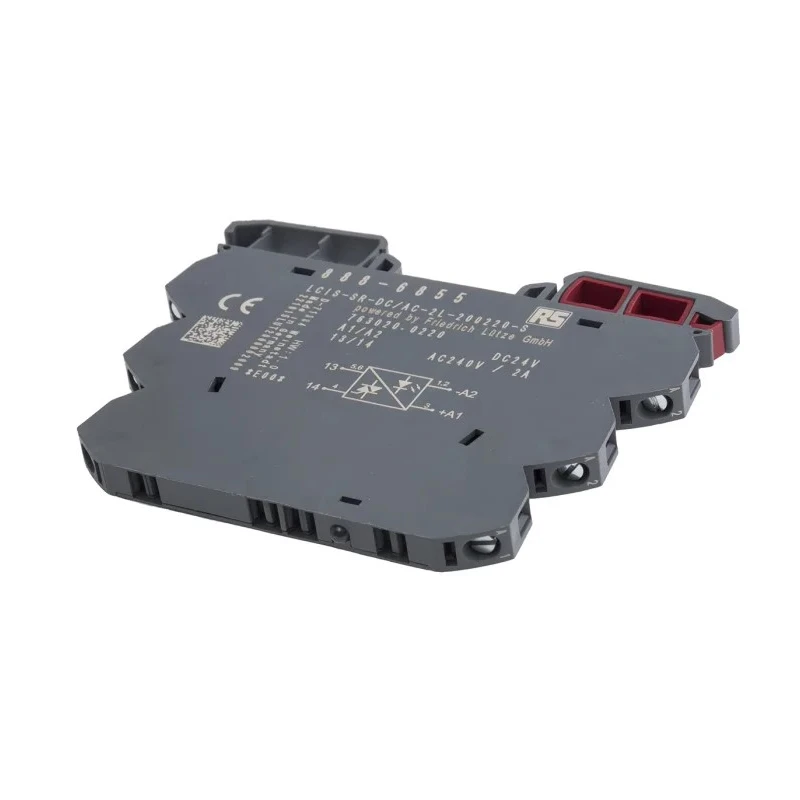

RS PRO Solid State Relay 2 A Load DIN Rail Mount 264 V Load 30V Control 888-6855

RS PRO 888-6855 Solid State Relay offers precision switching with a 2 A load capacity and MOSFET output technology, designed for DIN Rail mounting in electrical and automation systems. It operates efficiently switching DC loads up to 264 V with control voltages between 11 V and 30 V, suitable for sensitive control applications.

This relay features a compact form factor measuring 6.2 mm wide, 93 mm tall, and 73 mm deep, allowing installation in narrow spaces inside control cabinets. The screw terminals provide a robust and secure connection interface, while the IP20 rating ensures protection against ingress of solid objects.

The relay supports operation across a temperature range of -25°C to 60°C, making it suitable for industrial automation, manufacturing equipment, and electrical control panels requiring reliable DC load switching. Its single pole single throw (SPST) contact configuration provides reliable on/off switching with minimal mechanical wear due to MOSFET solid-state construction.

Low off-state leakage current of 1 mA minimizes power loss and improves overall system efficiency. Developed in Germany, this device complies with international standards such as RoHS, UL, and CSA for quality assurance and safety compliance.

Typical applications include use in industrial automation systems, control gear setups, signal conditioning circuits, and other precision electronics requiring steady DC switching performance with vibration and impact resistance.

By choosing the RS PRO 888-6855 Solid State Relay, industries ensure long service life, consistent switching frequencies, and incorporation of advanced MOSFET technology within a compact DIN Rail mounting design.

Utilizes MOSFET output technology enabling efficient DC switching operation. Supports maximum load current of 2 amperes suitable for compact electronic control. Mountable on standard DIN rails for easy integration in electrical panels.

Wide operating temperature range from -25°C to 60°C for use in diverse industrial environments. Compact dimensions of 6.2 mm width, 93 mm height, and 73 mm length optimize space usage. Features screw terminal type ensuring secure electrical connections.

IEC IP20 rated enclosure provides protection against solid objects larger than 12 mm. Contact configuration is single pole single throw (SPST) suitable for on/off switching. Low off-state leakage current of 1 mA enhances energy efficiency.

Manufactured in Germany adhering to RoHS, UL, and CSA standards for reliability and safety. Explore more in the Electronics & Electricals category at EnvMart for high-quality relays and automation components.
