Schneider Electric Power Relay 230V AC Coil 3A Switching Current 4PDT Harmony Relay RXM RXM4GB2P7

Free Delivery in India | Lowest Global Shipping Charges

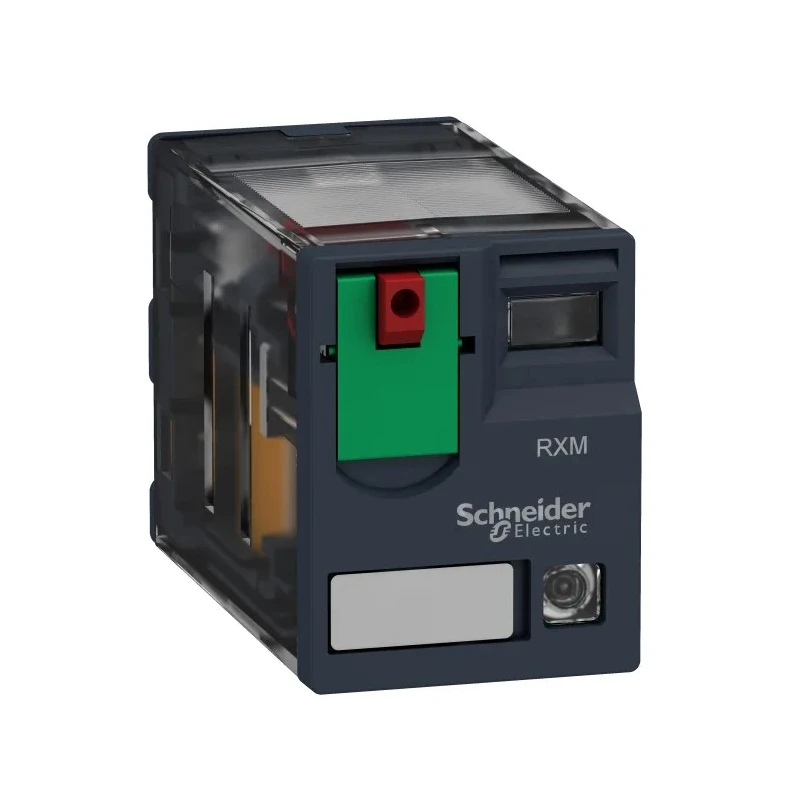

Schneider Electric Power Relay 230V AC Coil 3A Switching Current 4PDT Harmony Relay RXM RXM4GB2P7

Name: Schneider Electric Power Relay 230V AC Coil 3A Switching Current 4PDT Harmony Relay RXM RXM4GB2P7
Brand: Schneider Electric
SKU: 384956
Price: 21.88 USD
Availability: InStock



Category Power Relay Brand Schneider Electric Condition New

Specifications

Country of Origin	China
Brand	Schneider Electric
Height	27mm
Length	21mm
Model	RXM4GB2P7
Width	47.7mm
Contact Material	Gold Plated
Series	Harmony Relay RXM
Maximum Operating Temperature	55°C
Contact Configuration	4PDT
Minimum Operating Temperature	-40°C
Switching Current	3A
Terminal type	Plug-In
Standards/Approvals	CSA, CE
Coil Resistance	15kΩ
Coil Voltage	230V ac
Switching DC Voltage	28V dc
Switching AC Voltage	250V ac
Coil Power	1.2W

Key Features

The relay is part of the Harmony Relay RXM series with plug-in terminal type.
It operates reliably between -40°C and 55°C ambient temperatures.
The coil has a resistance of 15kΩ and consumes 1.2W power.
Contact material is gold plated for enhanced conductivity and durability.
Compact dimensions of 21mm length, 47.7mm width, and 27mm height.
Designed for industrial applications including HVAC, automation control, packaging machinery, and PLC interfaces.
Test button with mechanical indicator and LED status display simplifies operation and diagnostics.
Complies with multiple international standards such as CSA and CE.

Product Description

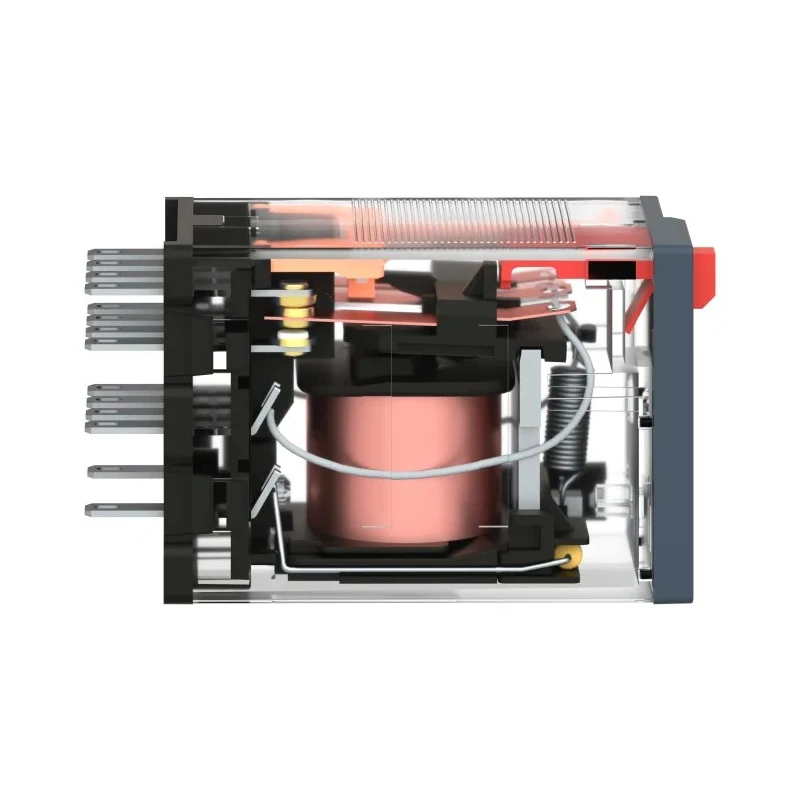

Schneider Electric RXM4GB2P7 is a Power Relay with a 230V AC coil and 3A switching current, featuring a 4PDT contact configuration. This relay belongs to the Harmony Relay RXM series designed for plug-in mounting on RXZE sockets. It is suitable for industrial machines, packaging, textile, HVAC systems, automation control panels, low and medium voltage switchgear, motor control, and PLC interfaces.

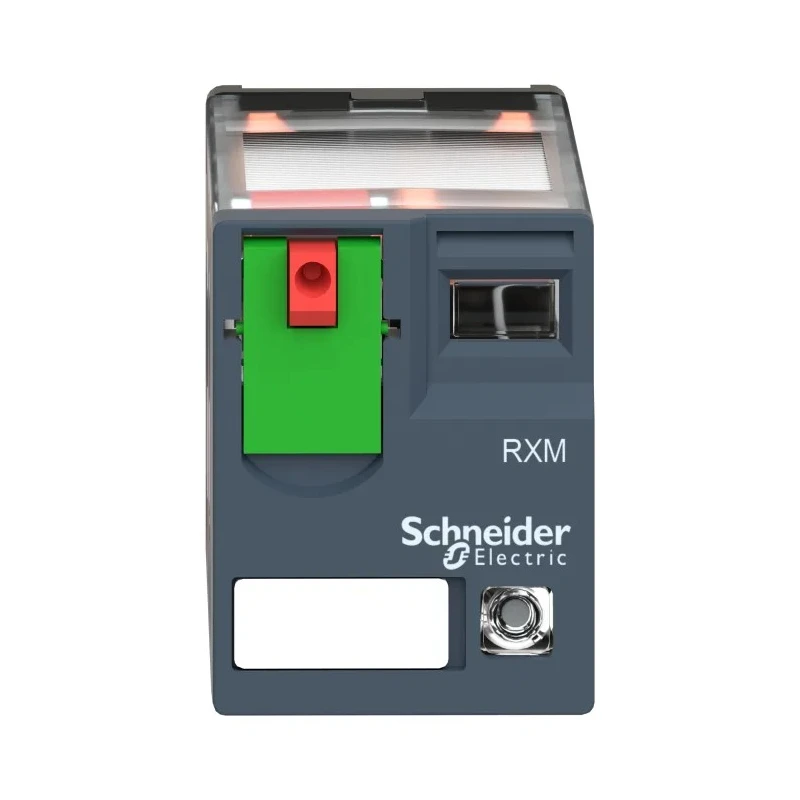

The relay includes a one-step lockable red test button and a green indicator, allowing momentary activation and locking for testing purposes. A mechanical orange flag indicator and a green LED provide clear status feedback day and night, enhancing usability and troubleshooting.

Its gold-plated contacts ensure high conductivity and long service life. The relay is compact with dimensions 21mm x 47.7mm x 27mm and accommodates a coil voltage of 230V AC with a coil resistance of 15kΩ. Operating temperature ranges from -40°C to 55°C, making it robust for various environments.

This product meets global standards including CSA and CE, ensuring quality and safety compliance. It is a green premium product manufactured in China and adheres to RoHS and REACH environmental directives.

RXM4GB2P7 relays are commonly used in industrial automation, HVAC, building equipment, and control panel applications requiring reliable low-level switching contacts. They pair with RXZE sockets for mounting, with optional protection modules and marking legends to enhance installation and maintenance.

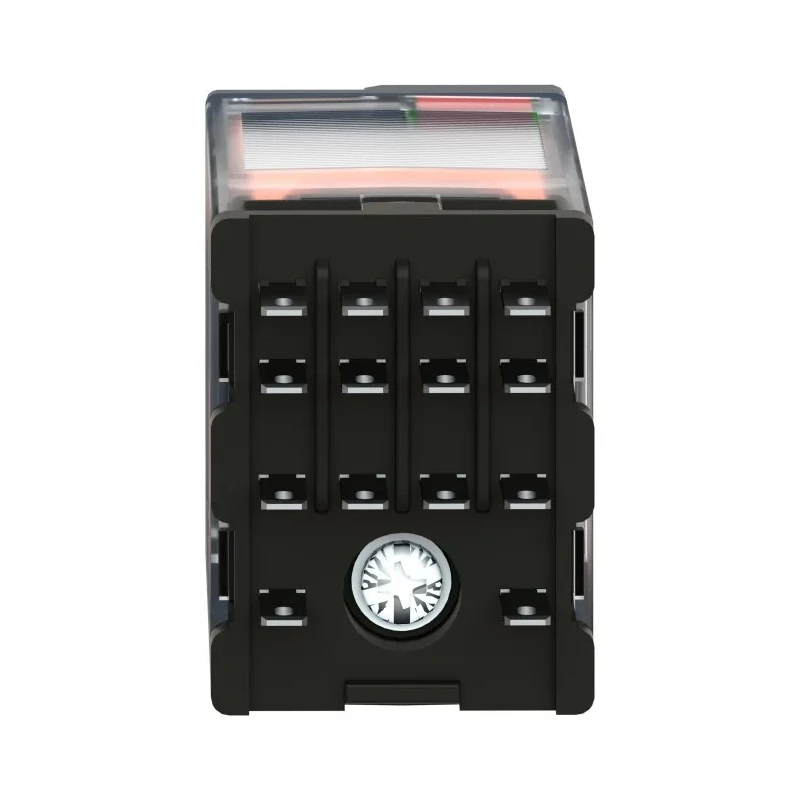

The relay series supports multiple contact configurations including 2 CO (12A), 3 CO (10A), 4 CO (6A), and 4 CO (3A) low-level contacts. Its plug-in design facilitates easy installation and integration into complex control circuits.

Suitable for industrial and manufacturing settings requiring dependable electrical switching components. LED status display improves visual operation and reduces maintenance time. Compliant with various international certifications for industrial safety and performance.
