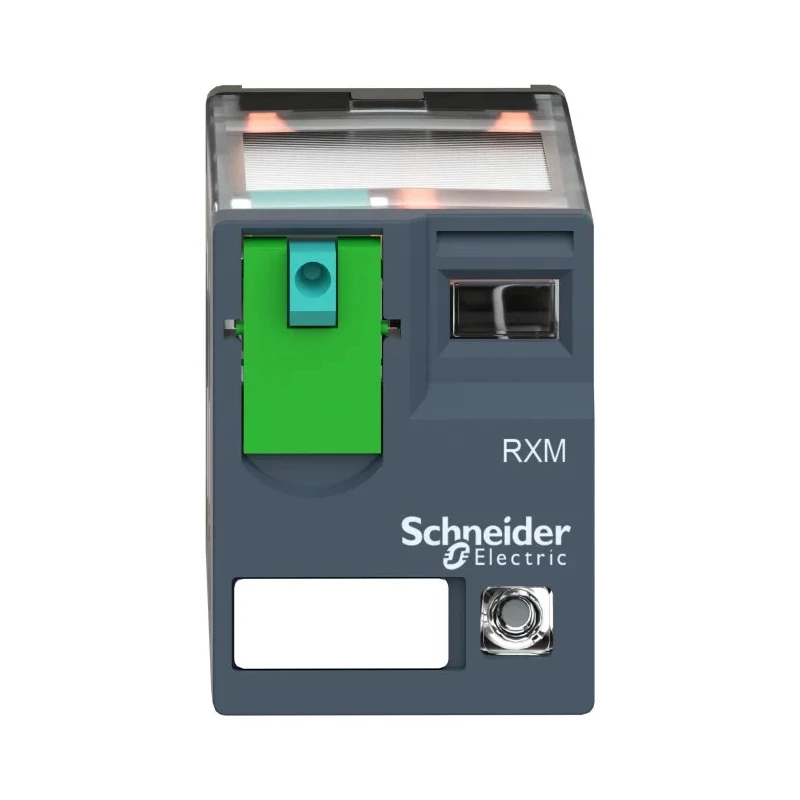

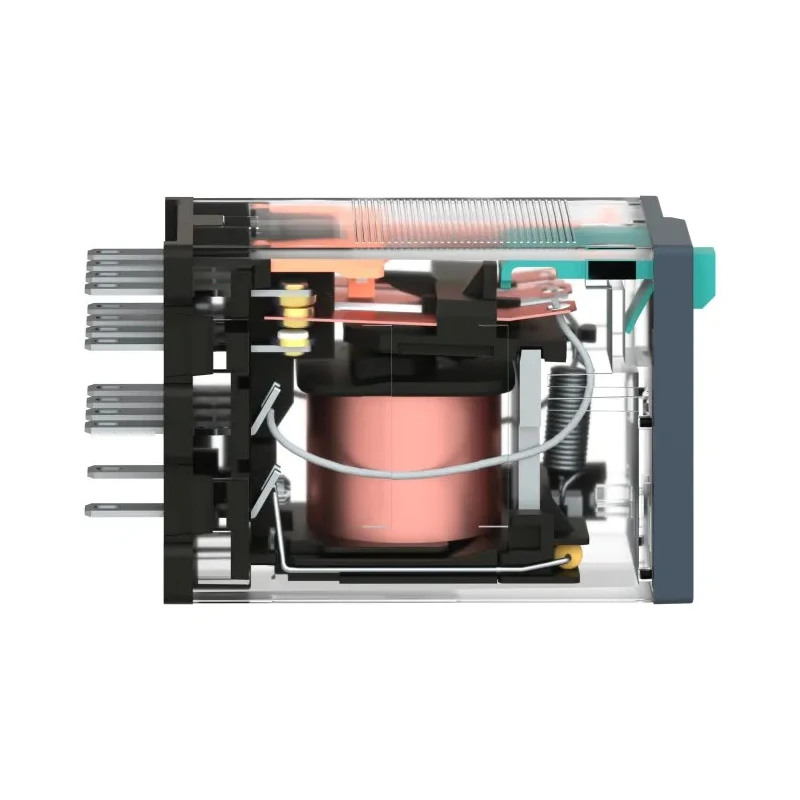

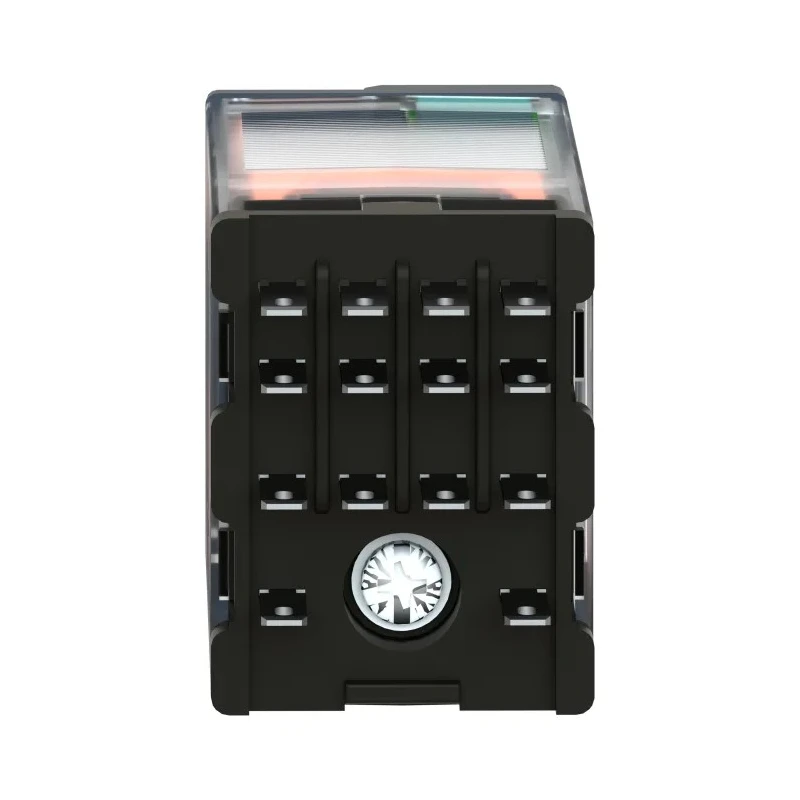

Schneider Electric Power Relay 24V DC Coil 3A Switching Current 4PDT RXM4GB2BD

Schneider Electric RXM4GB2BD Power Relay features a 24V DC coil and a switching current of 3A with a 4PDT contact configuration, designed for compact and reliable industrial switching solutions.

This miniature relay from the Harmony RXM series is robust and engineered for easy integration within industrial enclosures, especially in machine automation and HVAC systems.

Its gold-plated contacts provide enhanced endurance and low contact resistance, while the plug-in terminal design simplifies installation and replacement tasks. The relay operates efficiently across a broad temperature range from -40°C to 55°C, ensuring dependable performance in harsh environments.

The RXM4GB2BD includes a test button and mechanical indicator to easily verify relay status during maintenance and diagnostics. Compliance with CSA and CE certifications guarantees adherence to stringent international safety and quality standards.

As a non-latching electromechanical relay, it switches positions upon energizing the coil and returns to its original position when power is removed, making it ideal for push-button and microcontroller input applications.

This product is made in China and is part of Schneider Electric's Harmony RXM portfolio, known for compact size and enhanced functionality without adjustment for standard applications. Bases for DIN rail or screw assembly are sold separately to allow versatile mounting options.

Compact and robust miniature relay design suitable for industrial use. Coil voltage rated at 24V DC with a coil resistance of 650 ohms. Switching current capacity of 3A with a contact configuration of 4PDT. Operating temperature range from -40°C to 55°C for versatile environmental operation.

Gold-plated contacts ensure durable, low-resistance switching performance. Plug-in terminal type for easy installation and replacement. Compliance with CSA and CE standards for safety and quality assurance. Designed primarily for machine, building equipment, and HVAC control systems.

Non-latching relay type with mechanical status indicator and test button.
