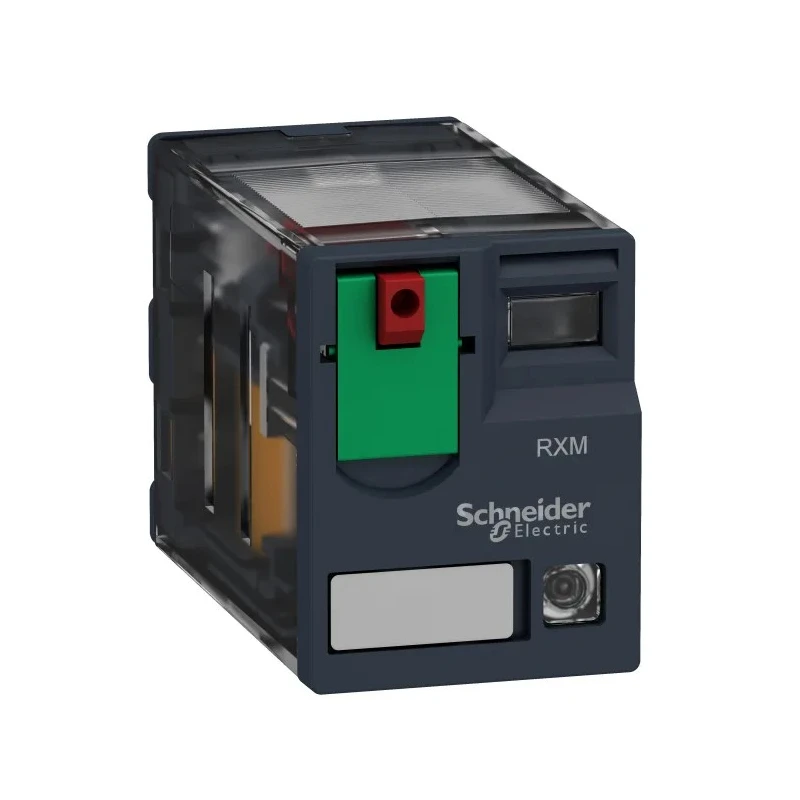

Schneider Electric Power Relay, 48V AC Coil, 3A Switching Current, 4PDT Contact Configuration RXM4GB2E7

Free Delivery in India | Lowest Global Shipping Charges

Schneider Electric Power Relay, 48V AC Coil, 3A Switching Current, 4PDT Contact Configuration RXM4GB2E7

Name: Schneider Electric Power Relay, 48V AC Coil, 3A Switching Current, 4PDT Contact Configuration RXM4GB2E7
Brand: Schneider Electric
SKU: 384950
Price: 27.64 USD
Availability: InStock



Category Power Relay Brand Schneider Electric Condition New

Specifications

Country of Origin	China
Brand	Schneider Electric
Height	27mm
Length	21mm
Model	RXM4GB2E7
Width	47.7mm
Contact Material	Gold Plated
Series	Harmony Relay RXM
Maximum Operating Temperature	55°C
Contact Configuration	4PDT
Minimum Operating Temperature	-40°C
Switching Current	3A
Terminal type	Plug-In
Standards/Approvals	CSA, CE
Coil Resistance	710Ω
Coil Voltage	48V ac
Switching DC Voltage	28V dc
Switching AC Voltage	250V ac
Coil Power	1.2W

Key Features

This plug-in miniature relay offers gold plated contacts for enhanced reliability.
Equipped with a lockable test button and mechanical indicator showing contact status.
Includes a front green LED that illuminates when the relay is energized.
Designed for industrial machines, HVAC systems, automation control panels, and low/medium voltage switchgear.
Compatible with RXZE sockets and supports protection modules for vibration resistance.
Conforms to international safety standards including IEC, CE, UL, CSA, and RoHS.

Product Description

Schneider Electric RXM4GB2E7 is a power relay with a 48V AC coil and a 3A switching current. It features a 4PDT (four-pole double-throw) contact configuration and plug-in terminal type designed for industrial automation applications.

This miniature relay belongs to the Harmony RXM series, known for compactness and reliability. Its gold plated contacts ensure high performance and durability for switching loads up to 250V AC and 28V DC.

The relay is equipped with a convenient lockable test button that can be activated using a red pushbutton and locked by flipping a green part to securely test contact operation. An orange mechanical indicator flag clearly shows contact status, while a green LED at the front provides status indication day and night.

Commonly used in industrial machines, packaging, textile equipment, HVAC systems, motor controls, PLC interfaces, and building automation, this relay meets stringent international standards such as IEC, CE, UL, CSA, EAC, Lloyd's, RoHS, and REACH.

Designed to mount on RXZE sockets with screw clamp, push-in terminals, and optional vibration protection, the RXM4GB2E7 relay facilitates easy installation and integration in complex control systems.

Gold plated contacts provide reliable switching and long operational lifetime. Lockable test button and mechanical indicator support maintenance and testing. Green LED status display ensures clear relay operation visibility.

Compatible with industrial sockets and vibration protection accessories. Wide operating temperature range from -40°C to 55°C. Compact dimensions: 47.7mm width, 27mm height, and 21mm length.

This product is ideal for various industrial, manufacturing, and commercial applications requiring secure, robust power relay switching. It is supplied as relay only and sold in lots of 10 units. Choose Schneider Electric RXM4GB2E7 for dependable power relay performance in demanding environments.
