Schneider Electric Power Relay 24V dc Coil 3A Switching Current 4PDT RXM4GB1BD

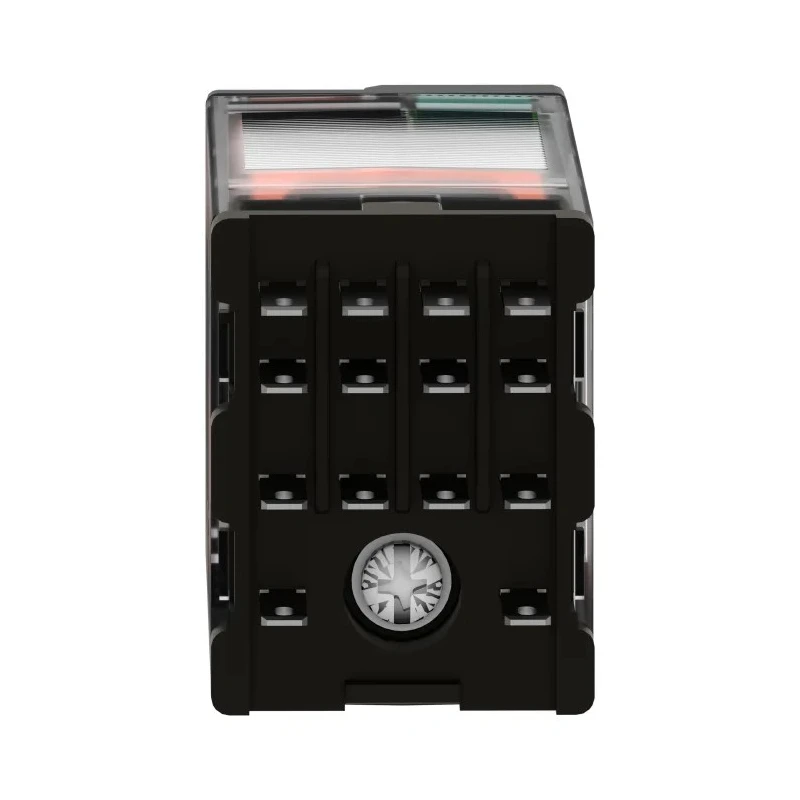

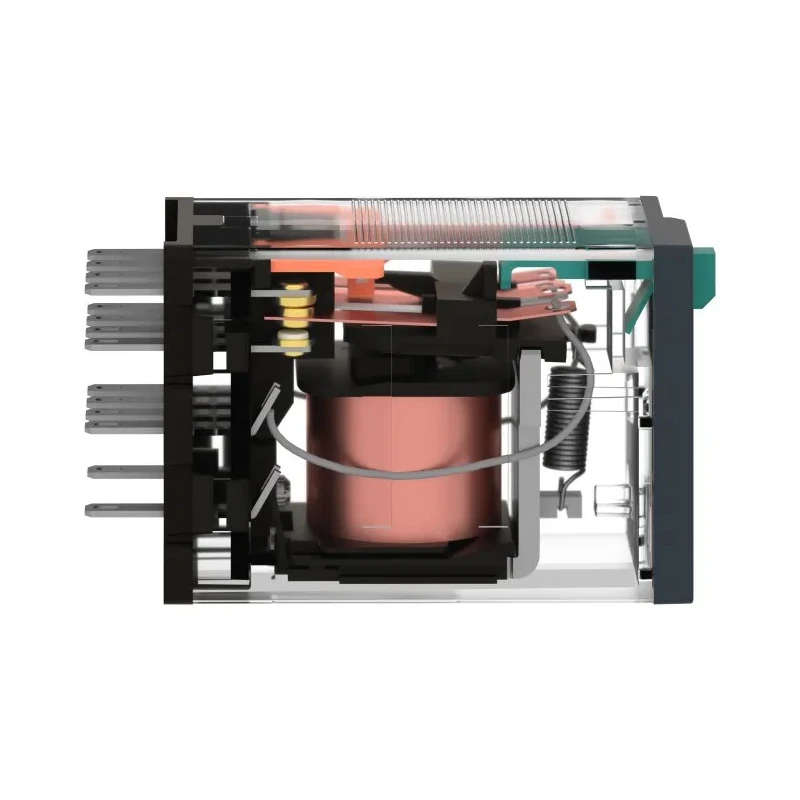

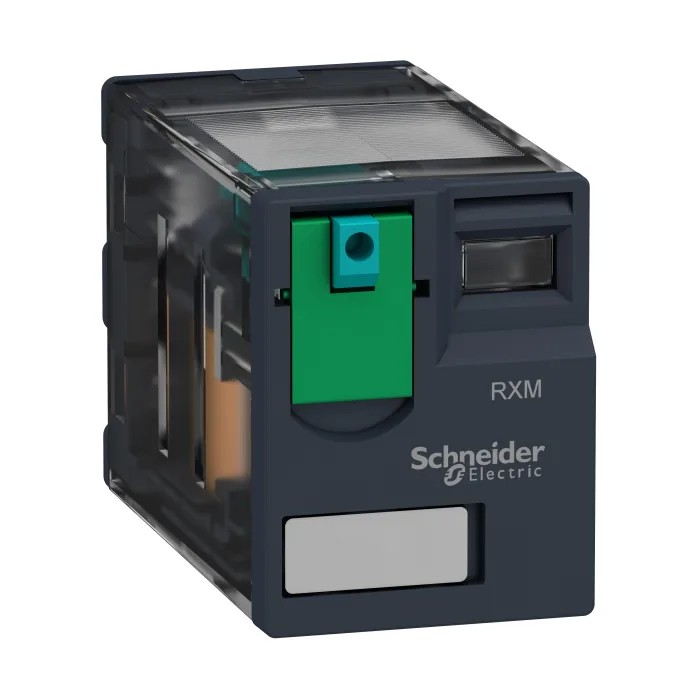

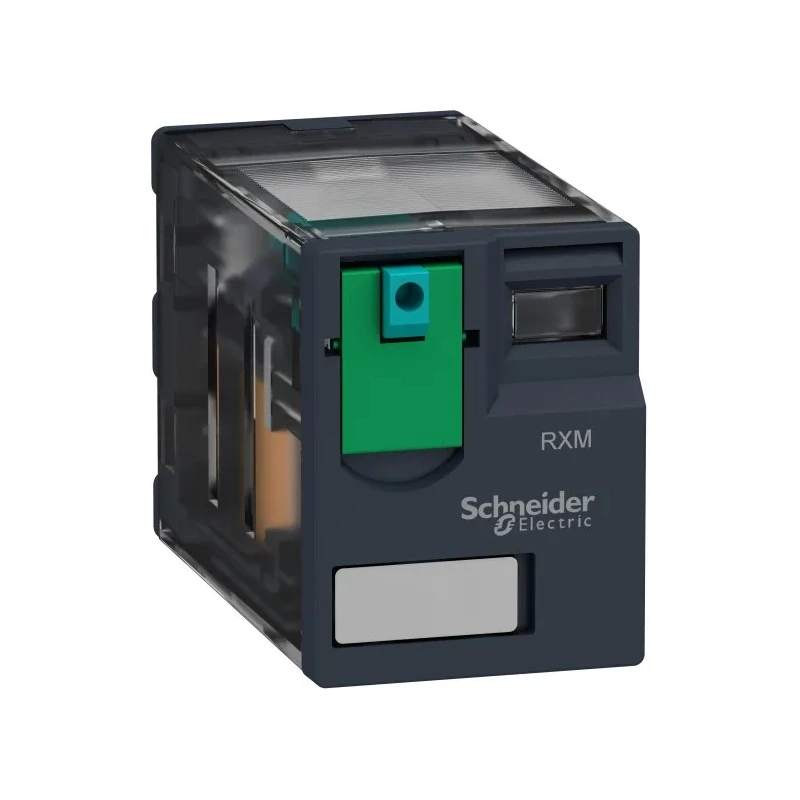

Schneider Electric RXM4GB1BD is a Harmony Electromechanical miniature Power Relay designed with a 24V DC coil and 3A switching current rating. This 4PDT relay features plug-in terminals for straightforward mounting on RXZE sockets, widely utilized in industrial automation scenarios, including packaging machinery, HVAC systems, textile equipment, and motor control applications.

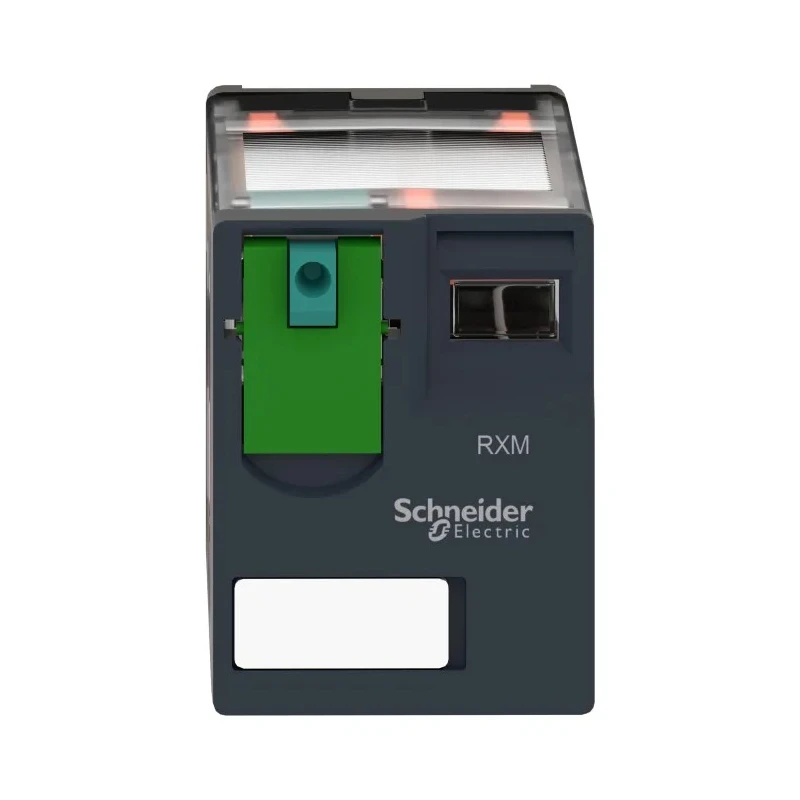

The relay includes a one-step lockable test button activated by pressing the blue pushbutton and locking mechanism via the green flip-up section. Adjacent mechanical indicators display relay contact status using an orange flag. The compact design (47.7 mm by 27 mm by 21 mm) and gold plated contacts offer excellent reliability and signal integrity under operational electrical stresses.

This relay operates effectively between -40°C and +55°C, supporting up to 250V AC and 28V DC switching voltages. Coil resistance is maintained at 650 ohms with coil power consumption of 900mW. The product conforms to multiple international safety and quality standards such as CE and CSA and meets environmental directives including RoHS and REACH.

Ideal for integration into automated industrial systems including PLC interfaces, low and medium voltage switchgear, and building equipment requiring low-level contacts, the RXM4GB1BD supports hardened wired logic and complements programmable logic controllers (PLCs). To secure the relay against vibration, optional plastic or metal clamps may be added when used with RXZE sockets. Protection modules and marking legends for the relay are also available separately.

Sold typically in lots of 10 relays, this device is a green premium product manufactured in China that ensures consistent quality for industrial automation systems. Its advanced features and reliable adherence to industrial standards make it a dependable choice for electrical control and automation tasks.

This relay has a 24V DC coil voltage with 3A switching current and 4PDT contact configuration. The plug-in relay design allows easy installation on compatible RXZE sockets. Compact dimensions of 47.7 mm width, 27 mm height, and 21 mm length aid space-saving panel layouts.

Gold plated contacts ensure enhanced conductivity and resistance to corrosion. Operating temperature from -40°C to 55°C ensures performance across diverse environments. Coil resistance is 650 ohms with a low coil power rating of 900mW.

Relay complies with CE and CSA certification standards. The test button and mechanical indicator allow easy onsite status checking. Explore our wide range of industrial relays and automation components at EnvMart for robust electrical control solutions.
