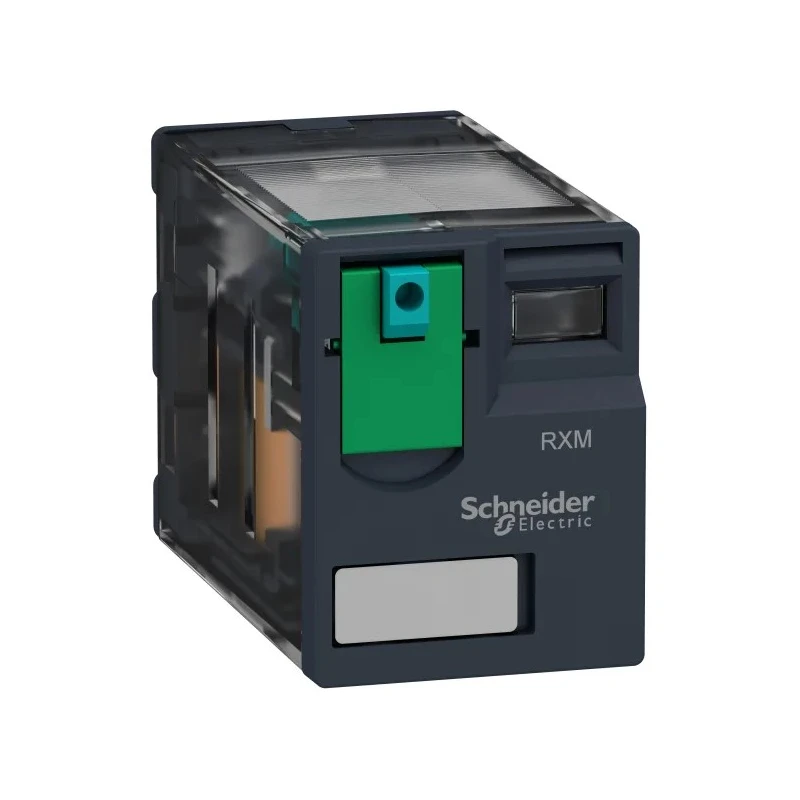

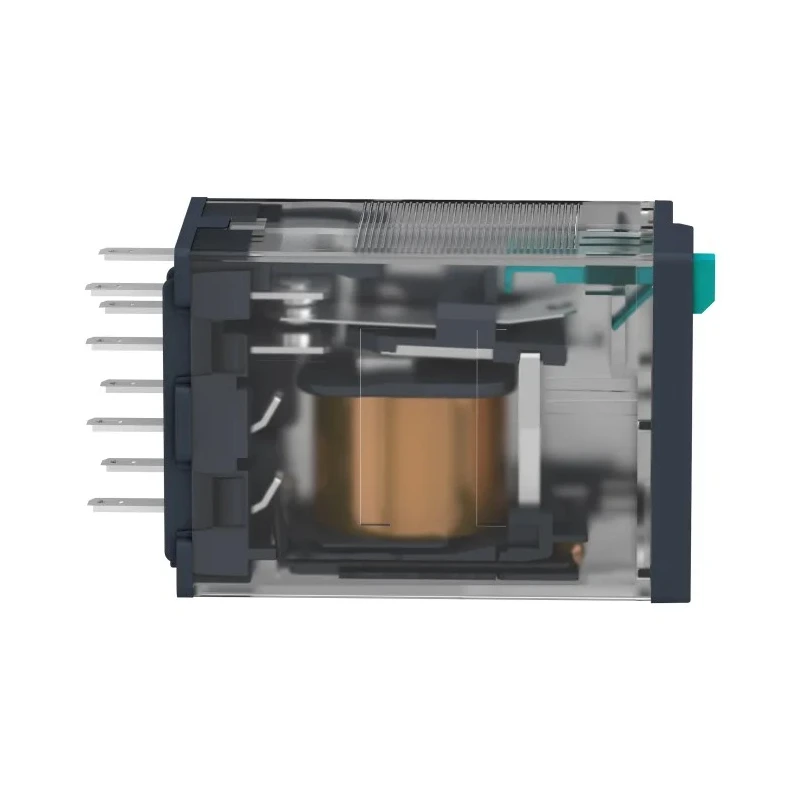

Schneider Electric Power Relay, 48V dc Coil, 8A Switching Current, 4PDT, Harmony Relay RXM Series RXM4AB1ED

Free Delivery in India | Lowest Global Shipping Charges

Schneider Electric Power Relay, 48V dc Coil, 8A Switching Current, 4PDT, Harmony Relay RXM Series RXM4AB1ED

Name: Schneider Electric Power Relay, 48V dc Coil, 8A Switching Current, 4PDT, Harmony Relay RXM Series RXM4AB1ED
Brand: Schneider Electric
SKU: 384945
Price: 16.57 USD
Availability: InStock



Category Power Relay Brand Schneider Electric Condition New

Specifications

Country of Origin	China
Brand	Schneider Electric
Height	27mm
Length	21mm
Model	RXM4AB1ED
Width	47.7mm
Contact Material	Silver Alloy
Series	Harmony Relay RXM
Maximum Operating Temperature	55°C
Contact Configuration	4PDT
Minimum Operating Temperature	-40°C
Switching Current	8A
Terminal type	Plug-In
Standards/Approvals	CE, CSA
Coil Resistance	2.6kΩ
Coil Voltage	48V dc
Switching DC Voltage	28V dc
Switching AC Voltage	250V ac
Coil Power	900mW

Key Features

Compact and robust design from the Harmony Relay RXM series.
Plug-in terminal type ensures easy installation and replacement.
Operates within temperature range of -40°C to 55°C.
Supports switching up to 1.5kVA AC and 28V DC voltage applications.
Silver alloy contact material provides excellent conductivity and durability.
Coil resistance rating of 2.6kΩ with coil power consumption of 900mW.
Conforms to CE and CSA standards for safety and quality assurance.

Product Description

Schneider Electric RXM4AB1ED power relay is part of the compact Harmony Relay RXM miniature series, designed specifically for industrial, automation, and HVAC applications requiring reliable switching performance.

This miniature relay features a 48V DC coil and a 4PDT (four-pole double-throw) contact configuration, allowing versatile control capabilities in electrical enclosures and machine equipment. The plug-in terminal type facilitates simple integration and base replacement, with bases ordered separately if needed.

Operating temperature ranges from -40°C to 55°C, making it suitable for harsh environments. The relay supports switching currents up to 8A with switching power of 1.5kVA AC and can handle DC voltages up to 28V.

Durability and performance are enhanced by silver alloy contacts, ensuring low contact resistance and longevity. The coil resistance is rated at 2.6kΩ with a coil power consumption of only 900mW, contributing to energy-efficient operation.

Its compact dimensions (47.7mm wide, 27mm high, 21mm long) allow for efficient use of panel space. The product meets CE and CSA standards, ensuring compliance with international safety and quality requirements.

This Power Relay is manufactured in China and is supplied new, ideal for renewable industrial automation, electrical installation, and control panel construction use cases. Compact and robust design from the Harmony Relay RXM series.

Plug-in terminal ensures easy installation and maintenance. Wide operating temperature range for diverse environments. Supports AC and DC switching applications with high current rating. Durable silver alloy contacts for reliable performance.

Energy-efficient coil with 900mW power consumption. Compact dimensions for easy mounting in control panels. Certified to CE and CSA standards for safety assurance. Explore additional Schneider Electric relays and industrial automation components available in the EnvMart catalog to complement your control systems.
