Schneider Electric Power Relay, 3PDT Contact Configuration, 230V AC Coil Voltage, 10A Switching Current RXM3AB2P7

Schneider Electric RXM3AB2P7 is a compact power relay from the Harmony Electromechanical Relay RXM series, designed for industrial automation and control applications. It features a 3PDT (Triple Pole Double Throw) contact configuration and operates with a coil voltage of 230V AC at 50/60 Hz, suitable for various electrical control circuits.

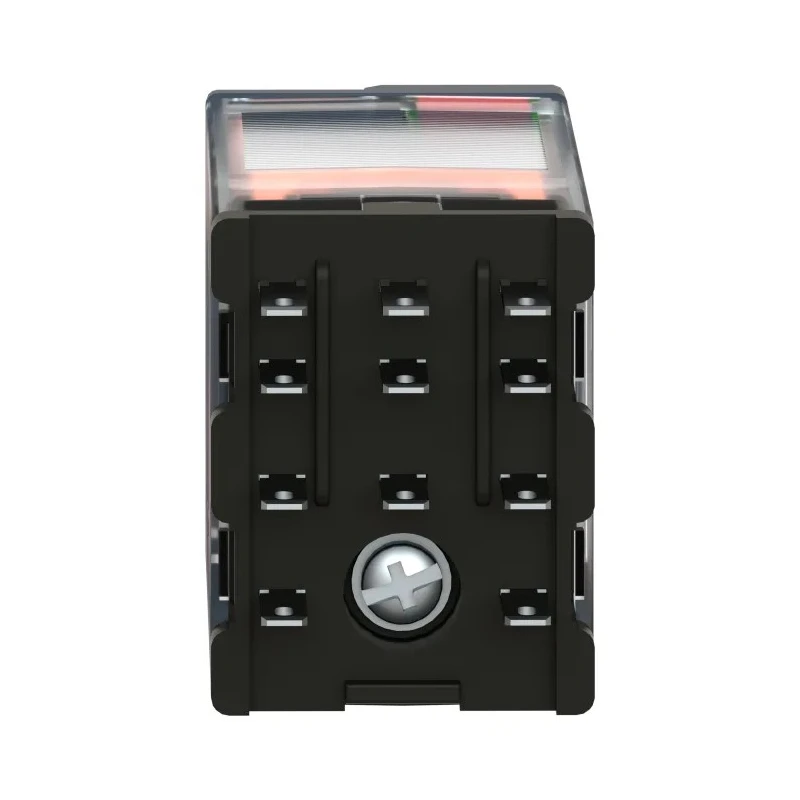

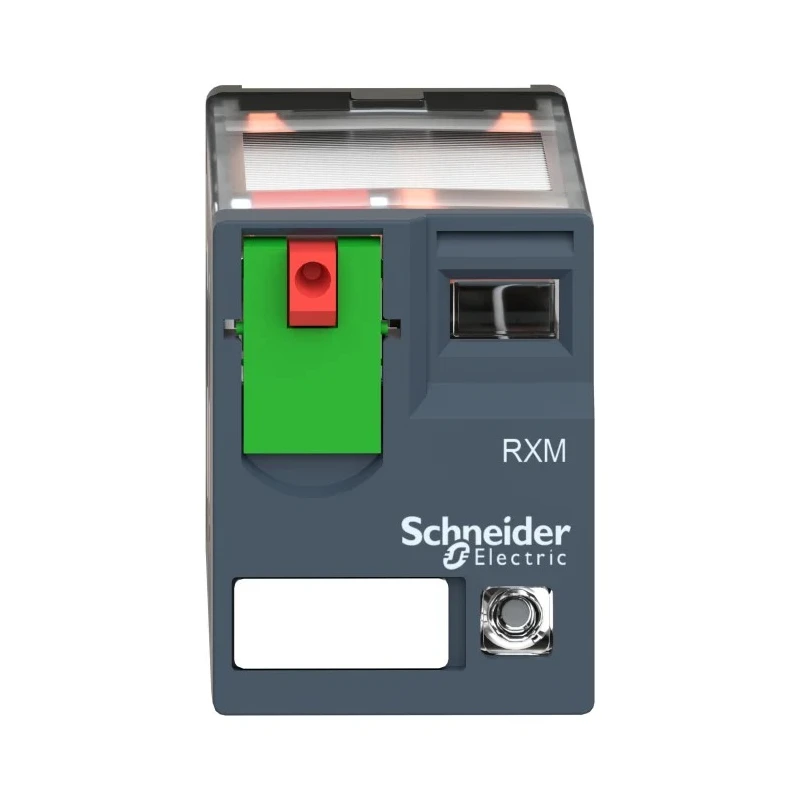

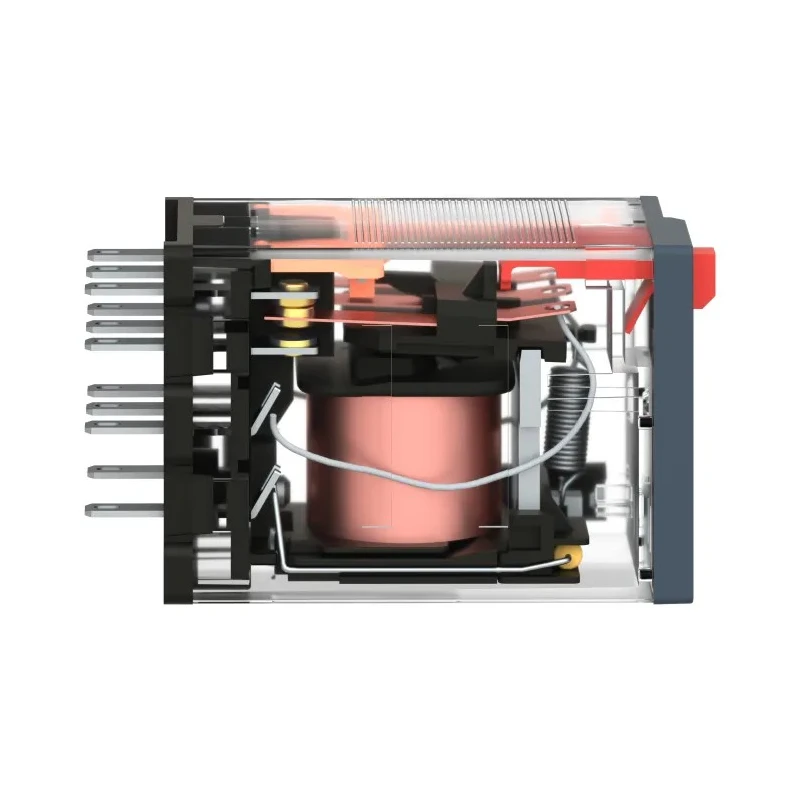

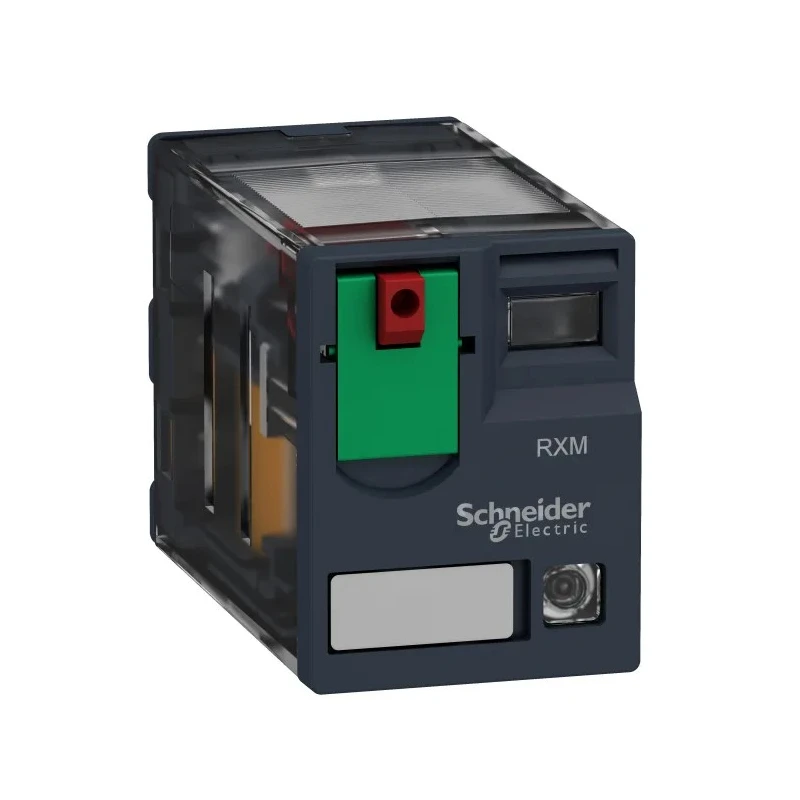

The relay is designed with a plug-in terminal type for easy installation on RXZE sockets and includes a one-step lockable test button allowing operators to check relay operation safely. The mechanical indicator with an orange flag clearly shows contact status, while a front green LED indicates when the relay coil is energized, enabling easy monitoring under all lighting conditions.

Constructed with silver alloy contact material, the relay supports a switching current of up to 10A with switching power rated at 2.5 kVA for AC and supports DC switching voltage up to 28V. Operating temperature ranges from -40°C to 55°C, making it suitable for harsh industrial environments. Its compact form factor measures 47.7 mm in width, 27 mm in height, and 21 mm in length, making it ideal for use in limited spaces like automation control panels.

The RXM3AB2P7 relay finds application in industrial machines, HVAC systems, packaging, textile manufacturing, PLC interfaces, switchgear, motor controls, building automation, and medical equipment. It conforms to international industry standards and certifications including IEC, CE, CSA, UL, EAC, Lloyd's Register, RoHS, and REACH, guaranteeing quality and safety compliance.

To ensure secure mounting and vibration resistance, additional plastic or metal clamps can be added to the RXZE socket base, which is sold separately. Protection modules and marking legends are also available to complement installation. This relay is supplied individually and is intended for use in lots for multiple installations.

Schneider Electric's RXM miniature relays are renowned for reliability, easy programming, and seamless integration into existing automation systems without requiring adjustments for standard applications. The inclusion of test and status indicators enhances troubleshooting and maintenance efficiency.

Explore EnvMart's broad range of industrial Power Relays and automation components for robust and efficient control solutions in manufacturing, water treatment, HVAC, and commercial building sectors.

This miniature relay belongs to the Harmony Relay RXM series designed for industrial and automation applications. It offers a plug-in terminal type suitable for mounting on RXZE sockets. The relay includes a one-step lockable test button and mechanical contact status indicator.

A green LED indicates the relay's energized status for easy day and night visibility. Its silver alloy contacts enable reliable switching at up to 250V AC or 28V DC. Operating temperature range from -40°C to 55°C enhances durability in diverse environments.

The compact design with dimensions 47.7mm width, 27mm height, and 21mm length fits well in control panels. Applications include industrial machinery, HVAC systems, packaging machines, textile equipment, and power supplies.

The relay complies with international standards such as IEC, CE, CSA, UL, RoHS, and REACH. Manufactured with a coil resistance of 15kΩ and coil power of 1.2W ensuring energy efficiency.
