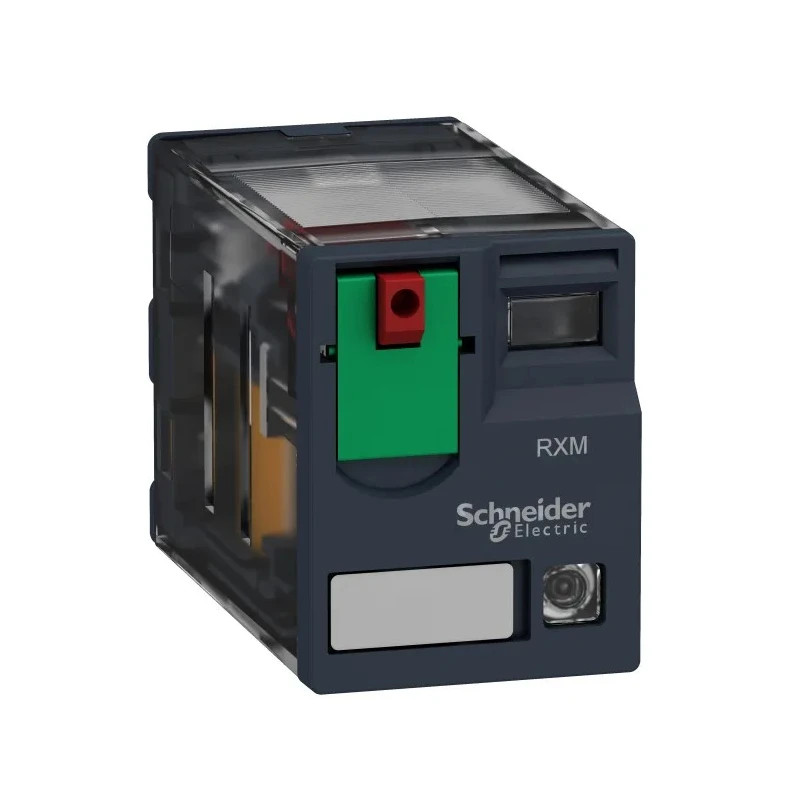

Schneider Electric Power Relay, 3PDT Contact Configuration, 120V AC Coil Voltage, 10A Switching Current, Plug-In RXM3AB2F7

Schneider Electric RXM3AB2F7 Power Relay is part of the Harmony Electromechanical RXM series, designed for industrial automation and control systems. This 3PDT (Triple Pole Double Throw) relay features a 120V AC coil voltage and can handle a switching current of 10A, making it ideal for control panels, HVAC systems, motor controls, and building automation.

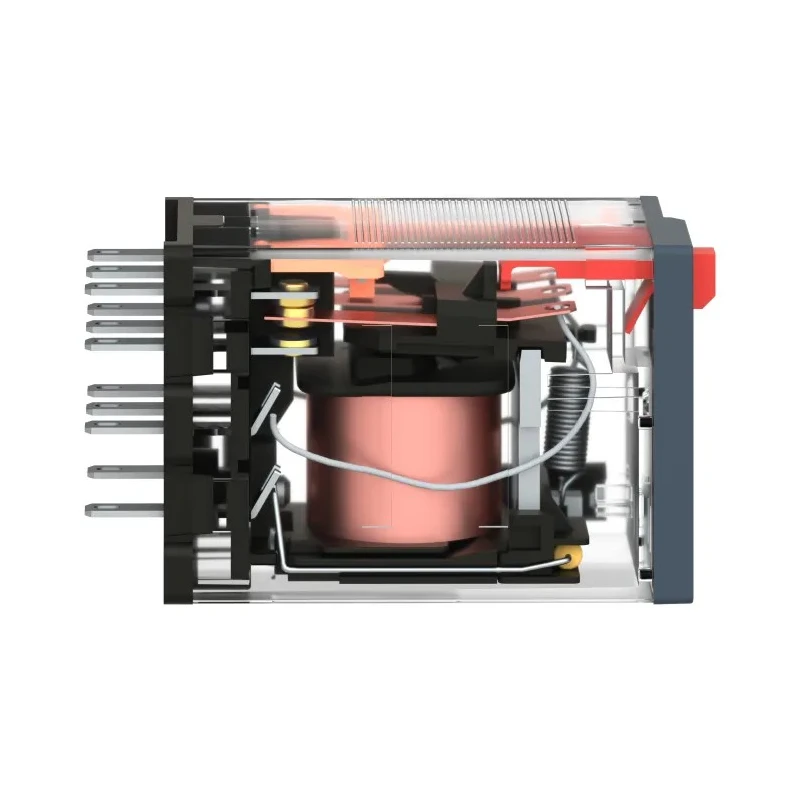

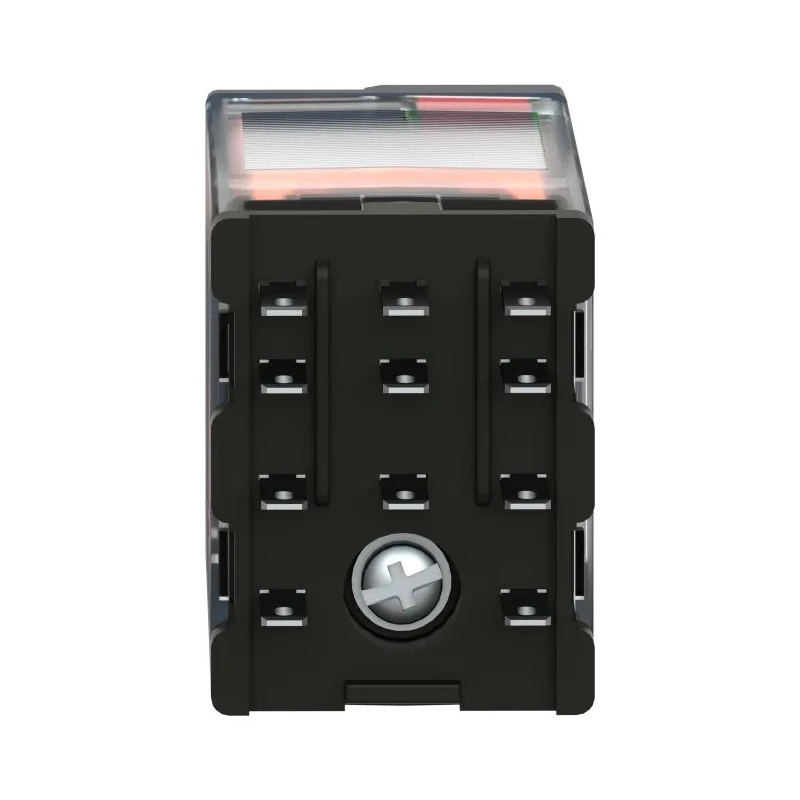

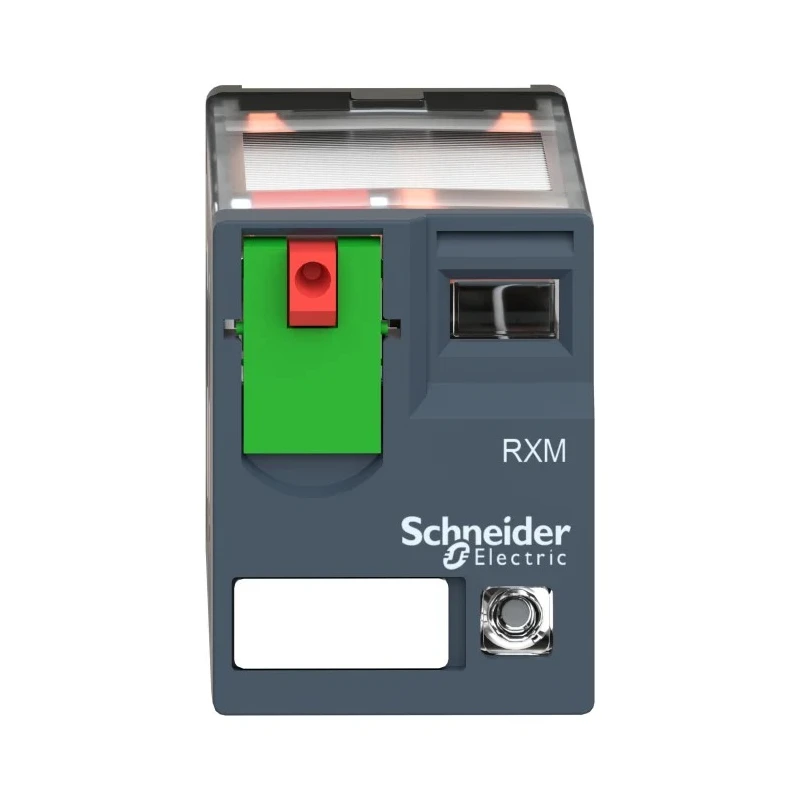

The relay utilizes a plug-in terminal type which allows quick installation on RXZE sockets, with optional clamps available for vibration protection. It includes a one-step lockable red test button for easy contact testing and a mechanical orange flag indicator for clear relay contact status. Additionally, a green LED signals relay activation, enhancing status visibility both day and night.

With a compact form factor measuring 47.7mm width, 27mm height, and 21mm length, and a coil resistance of 3.6kΩ, it consumes 1.2W coil power. This relay operates reliably in demanding industrial environments with a temperature range from -40°C to 55°C. Contacts are made from silver alloy, ensuring longevity and excellent electrical conductivity.

The RXM3AB2F7 relay supports switching voltages up to 250V AC and 28V DC. It is certified by globally recognized bodies including CE and CSA, guaranteeing compliance with international safety and quality standards. Made in China, the relay is a green premium product that contributes to efficient and safe automation solutions.

This power relay is suited for a wide array of industrial applications such as packaging machinery, textiles, motor control, low and medium voltage switchgear, PLC interfaces, power supplies, medical equipment, and lighting controls. It is sold in lots of ten units and is compatible with various socket accessories and protection modules available separately.

The relay's robust and compact design fits well in industrial control panels. Test button and mechanical indicator enhance maintenance and troubleshooting. Suitable for HVAC, textile machines, automation control panels, and switchgear.

CE and CSA approvals ensure regulatory compliance and safety. The relay is part of Schneider Electric's Harmony RXM series known for reliability. Explore more Schneider Electric Power Relays and related electrical automation components on EnvMart to find the perfect fit for your industrial applications.
