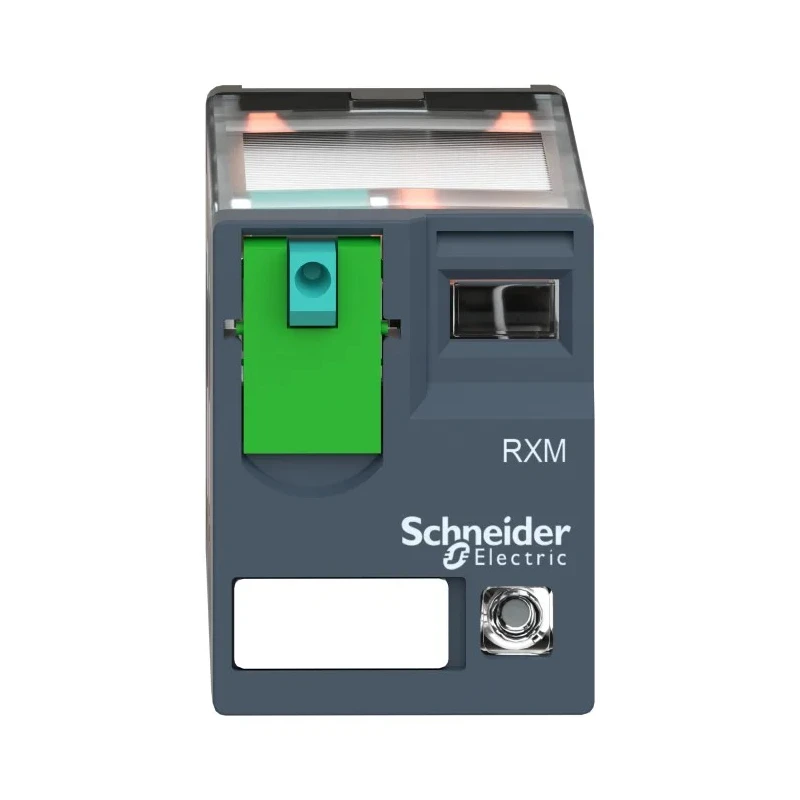

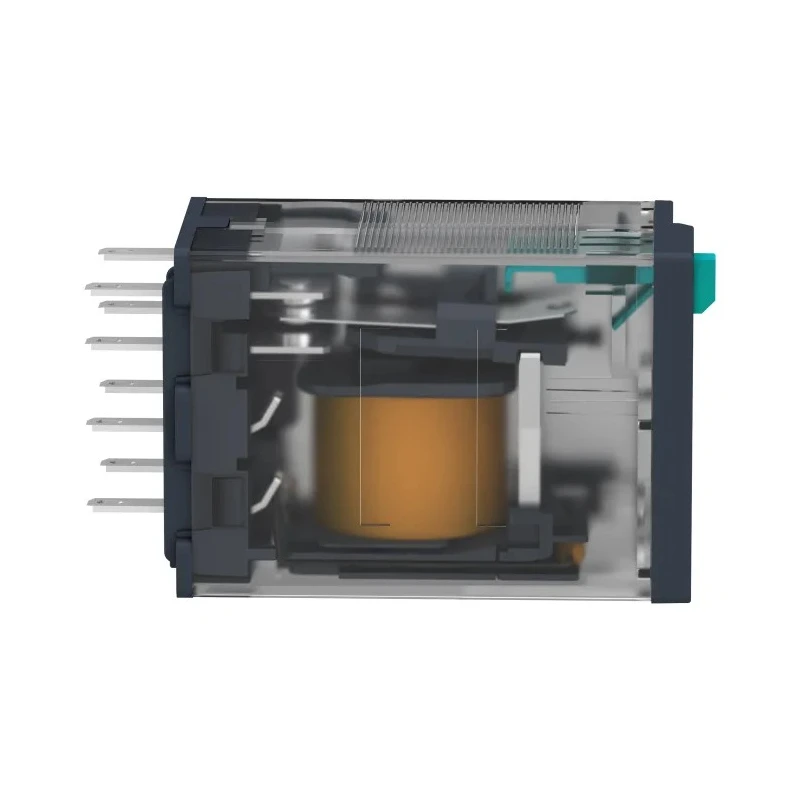

Schneider Electric Power Relay with 110V DC Coil, 12A Switching Current, DPDT Contact Configuration RXM2AB2FD

Free Delivery in India | Lowest Global Shipping Charges

Schneider Electric Power Relay with 110V DC Coil, 12A Switching Current, DPDT Contact Configuration RXM2AB2FD

Name: Schneider Electric Power Relay with 110V DC Coil, 12A Switching Current, DPDT Contact Configuration RXM2AB2FD
Brand: Schneider Electric
SKU: 384938
Price: 19.48 USD
Availability: InStock



Category Power Relay Brand Schneider Electric Condition New

Specifications

Country of Origin	China
Brand	Schneider Electric
Height	27mm
Length	21mm
Model	RXM2AB2FD
Width	47.7mm
Contact Material	Silver Alloy
Series	Harmony Relay RXM
Maximum Operating Temperature	55°C
Contact Configuration	DPDT
Minimum Operating Temperature	-40°C
Switching Current	12A
Terminal type	Plug-In
Standards/Approvals	CSA, CE
Coil Resistance	13.4kΩ
Coil Voltage	110V dc
Switching AC Voltage	250V ac
Coil Power	900mW

Key Features

Equip with a plug-in terminal type for simple installation.
Includes one-step lockable test button and mechanical contact status indicator.
Compact design with LED status display for day and night visibility.
Industrial use in HVAC, packaging, textile machinery, and automation control panels.
Conforms to IEC, CE, UL, CSA, EAC, Lloyd's, RoHS, and REACH international standards.
Compatible with RXZE sockets with optional vibration protection clamps and marking legends.
Rated switching AC voltage up to 250V AC and coil resistance of 13.4 kΩ.
Operating temperature ranges from -40°C to 55°C suitable for diverse environments.

Product Description

Schneider Electric RXM2AB2FD power relay is an electromechanical relay from the Harmony RXM series designed for industrial automation, building equipment, HVAC systems, and motor controls.

This compact Power Relay features a coil voltage of 110V DC and supports a switching current of 12A with a DPDT (double pole double throw) contact configuration, ensuring reliable performance in controlling electrical circuits.

The relay has a plug-in terminal type allowing easy mounting on RXZE sockets. It is equipped with a one-step lockable test button and a mechanical indicator to show the contact status, complemented by an LED indicator for clear visual feedback in all lighting conditions.

The RXM2AB2FD model has a coil resistance of 13.4 kΩ and a coil power of 900 mW, with a switching AC voltage rating of 250V AC. It operates effectively within a temperature range of -40°C to 55°C, making it suitable for harsh industrial environments.

Material construction includes silver alloy contact parts for durability and efficient conductivity. This relay conform to international electrical and safety standards such as CSA and CE, ensuring compliance for industrial applications.

Easy installation plug-in design with compatible RXZE socket interface. Lockable test button with mechanical and LED status indicators. Robust silver alloy contacts rated for 12A switching current. Wide operating temperature range from -40°C to 55°C.

Industrial grade design for packaging, textile, HVAC, automation control, and motor control systems. Meets multiple international safety and compliance certifications. Constructed for vibration resistance with optional socket clamps and marking legends.

This product is ideal for industrial, commercial, and manufacturing electrical automation systems requiring dependable relay switching performance. Explore more high-quality Schneider Electric relays and components on EnvMart for industrial automation and control needs.
