Schneider Electric Power Relay 110V DC Coil 12A Switching Current DPDT Harmony RXM RXM2AB1FD

Free Delivery in India | Lowest Global Shipping Charges

Schneider Electric Power Relay 110V DC Coil 12A Switching Current DPDT Harmony RXM RXM2AB1FD

Name: Schneider Electric Power Relay 110V DC Coil 12A Switching Current DPDT Harmony RXM RXM2AB1FD
Brand: Schneider Electric
SKU: 384936
Price: 10.98 USD
Availability: InStock



Category Power Relay Brand Schneider Electric Condition New

Specifications

Country of Origin	India
Brand	Schneider Electric
Height	27mm
Length	21mm
Model	RXM2AB1FD
Width	47.7mm
Contact Material	Silver Alloy
Series	Harmony Relay RXM
Maximum Operating Temperature	55°C
Contact Configuration	DPDT
Minimum Operating Temperature	-40°C
Switching Current	12A
Terminal type	Plug-In
Standards/Approvals	CSA, CE
Coil Resistance	13.4kΩ
Coil Voltage	110V dc
Switching AC Voltage	250V ac
Coil Power	900mW

Key Features

Harmony RXM miniature plug-in relay with double-pole double-throw contact configuration.
Coil power consumption of 900mW and coil resistance of 13.4kΩ providing efficient operation.
High switching AC voltage rated at 250V AC and switching power of 3 kVA.
Compact dimensions with 47.7mm width, 27mm height, and 21mm length for space-saving installation.
Silver alloy contacts ensure reliable electrical conductivity and durable performance.
Operating temperature range from -40°C to 55°C allowing use in varied industrial environments.

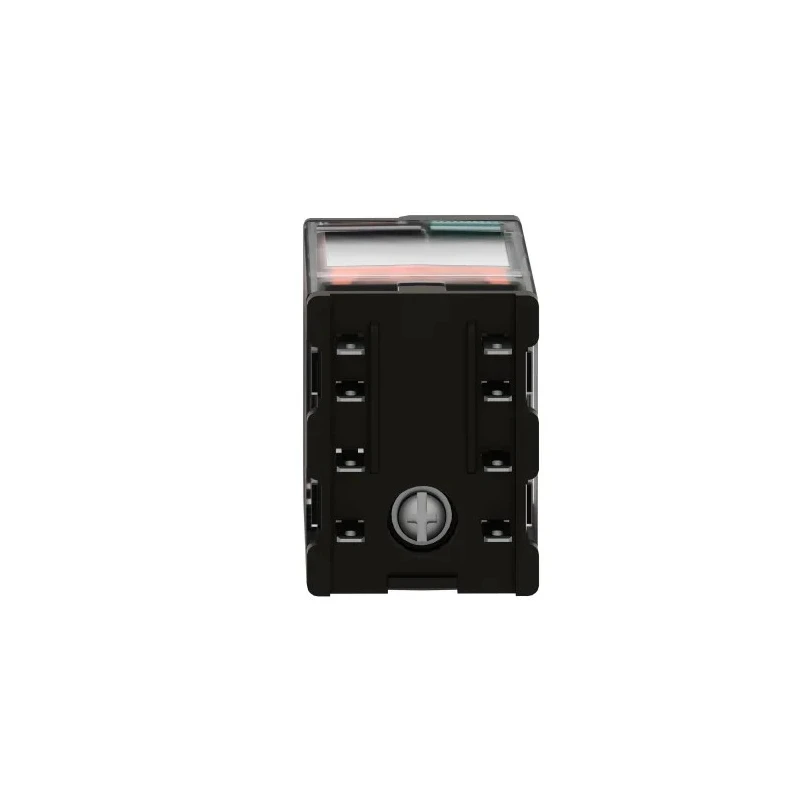

Plug-in terminal type for easy installation and replacement in electrical panels.

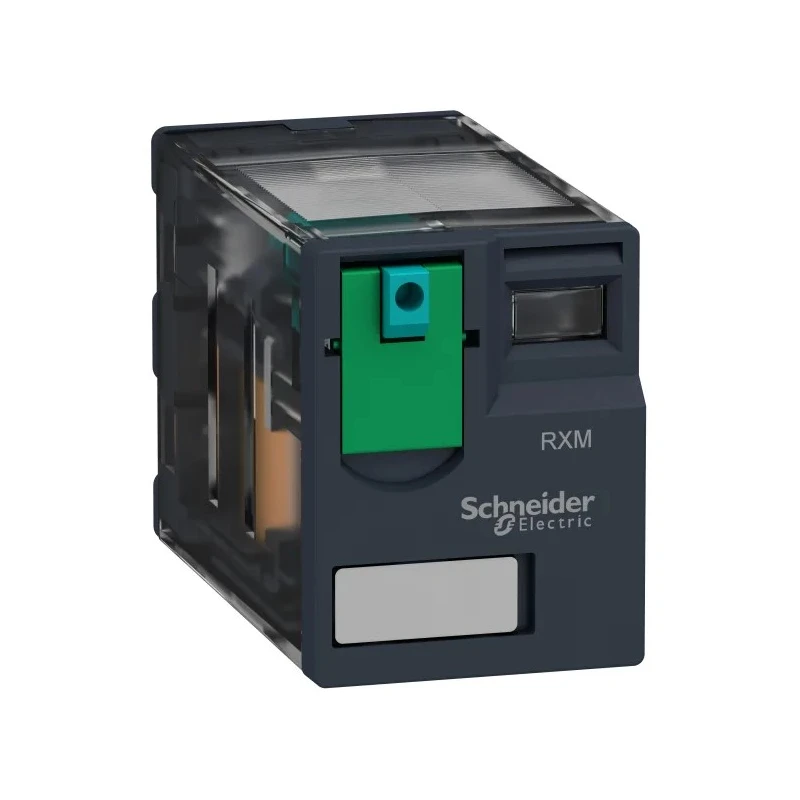

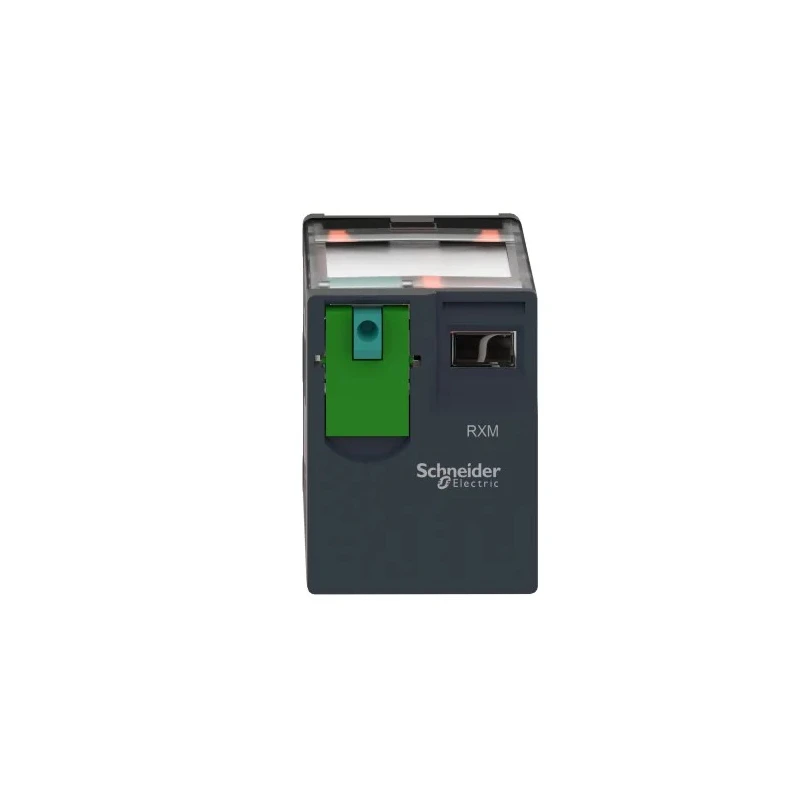

Test button and mechanical status indicator for visual confirmation of relay status.

Product Description

Schneider Electric RXM2AB1FD is a high-performance Power Relay designed for industrial automation, electrical enclosures, and control systems. This Harmony RXM series miniature plug-in relay operates with a 110V DC coil and provides a 12A switching current through its DPDT (double pole double throw) contact configuration. Its compact dimensions allow for space-saving integration in machines and control panels.

The relay features a coil power consumption of 900mW with a coil resistance of 13.4kΩ, ensuring reliable and efficient coil operation. It supports switching AC voltage up to 250V AC with a maximum switching power of 3 kVA, suitable for various electrical automation applications. The contact material is silver alloy, offering excellent electrical conductivity and resistance to wear.

Designed to operate within a temperature range of -40°C to 55°C, the RXM2AB1FD relay withstands harsh industrial environments. The plug-in terminal type enables easy mounting and replacement, further complemented by a one-step lockable test button and mechanical indicator to verify contact status visually.

Its compact size (47.7mm width x 27mm height x 21mm length) and IP40 rated transparent cover allow for visual inspection and space-efficient installation. The relay adheres to international certifications including CSA and CE, guaranteeing safety and quality compliance.

The RXM series supports various plug-in relay configurations, enhancing machine reliability and reducing enclosure size. It is ideal for hard-wired logic systems complementing industrial PLC functions. For additional protection against vibrations, compatible plastic or metal clamps and protection modules are available.

Harmony RXM miniature plug-in relay with DPDT contacts. 110V DC coil voltage and 12A switching current rating. Compact design for space-saving installation. Silver alloy contact material for durability and performance. IP40 protection with transparent cover for easy contact status verification.

Built for industrial, automation, HVAC, manufacturing, and electrical control systems. Meets international standards including CSA and CE. Explore more industrial relays and automation components at EnvMart for reliable and certified electrical solutions.
