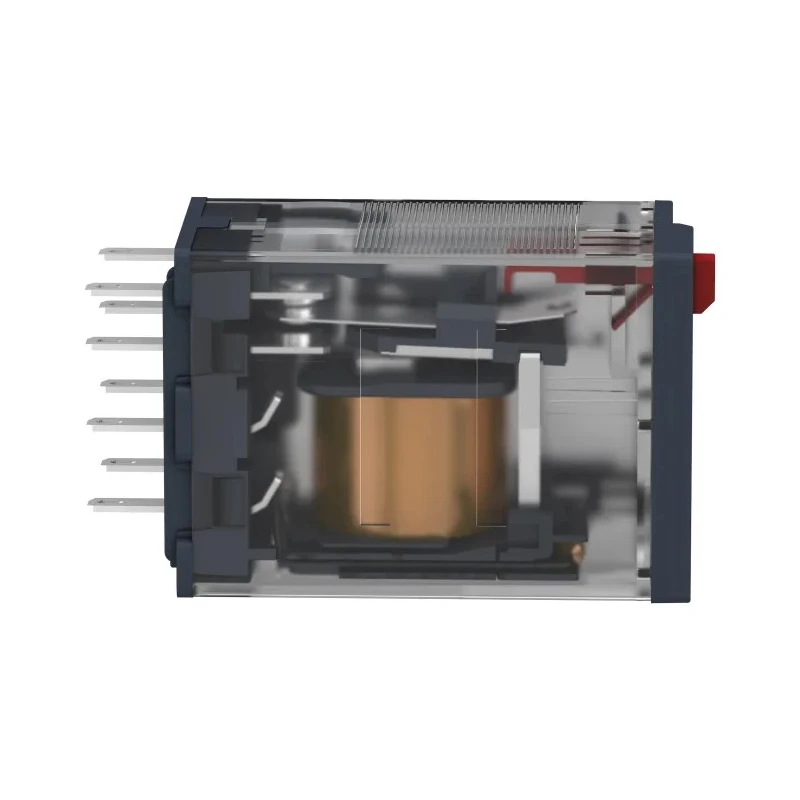

Schneider Electric Power Relay, 120V AC Coil, 12A Switching Current, DPDT, Plug-In Terminal, Harmony Relay RXM RXM2AB1F7

Free Delivery in India | Lowest Global Shipping Charges

Schneider Electric Power Relay, 120V AC Coil, 12A Switching Current, DPDT, Plug-In Terminal, Harmony Relay RXM RXM2AB1F7

Name: Schneider Electric Power Relay, 120V AC Coil, 12A Switching Current, DPDT, Plug-In Terminal, Harmony Relay RXM RXM2AB1F7
Brand: Schneider Electric
SKU: 384935
Price: 13.93 USD
Availability: InStock



Category Power Relay Brand Schneider Electric Condition New

Specifications

Country of Origin	India
Brand	Schneider Electric
Height	27mm
Length	21mm
Model	RXM2AB1F7
Width	47.7mm
Contact Material	Silver Alloy
Series	Harmony Relay RXM
Maximum Operating Temperature	55°C
Contact Configuration	DPDT
Minimum Operating Temperature	-40°C
Switching Current	12A
Terminal type	Plug-In
Standards/Approvals	CE, CSA
Coil Resistance	3.6kΩ
Coil Voltage	120V ac
Switching AC Voltage	250V ac
Coil Power	1.2W

Key Features

Features plug-in terminal type for easy installation and replacement.
Part of the Harmony Relay RXM series designed for industrial and machine automation applications.
Operates within a temperature range of -40°C to 55°C ensuring durability in varied environments.
Constructed with silver alloy contact material for efficient conductivity and longevity.
Coil resistance is 3.6kΩ, drawing coil power of 1.2W for low energy consumption.
Switching AC voltage rating of 250V AC with a switching power up to 3kVA.
Complies with CE and CSA standards ensuring international safety and quality certifications.

Product Description

Schneider Electric RXM2AB1F7 power relay features a 120V AC coil and double pole double throw (DPDT) contact configuration, engineered for electrical and industrial automation applications. It supports a 12A switching current with robust performance within industrial, machine equipment, and HVAC systems.

This relay is part of the Harmony Relay RXM series, known for reliability and ease of integration. Its plug-in terminal type simplifies installation and maintenance.

Operating temperatures span from -40°C to 55°C, making the relay suitable for harsh environmental conditions commonly encountered in manufacturing, industrial automation, and electrical control panels.

Constructed using a silver alloy contact material, the relay ensures excellent conductivity and long service life. Coil resistance measures 3.6kΩ, with coil power consumption rated at 1.2W, optimizing energy efficiency.

Its compact size (21mm length, 47.7mm width, 27mm height) facilitates usage in tight spaces without compromising performance. Rated for up to 250V AC switching voltage and 3kVA switching power, it is suitable for a wide range of industrial electrical switching tasks.

Plug-in terminal type enables straightforward wiring and replacement. Harmony Relay RXM series integration increases functional flexibility in electrical enclosures. Robust temperature tolerance for reliable operation in diverse environments.

Durable silver alloy contacts ensure extended relay lifecycle. Low coil power consumption supports energy-efficient operation. Compact form factor aids in space-efficient panel design. Certified to CE and CSA standards guaranteeing compliance and safety.

This Power Relay is extensively used in industrial automation, manufacturing equipment, HVAC systems, and electrical control panels. Its design quality and certification make it a dependable choice for manufacturers and engineers.
