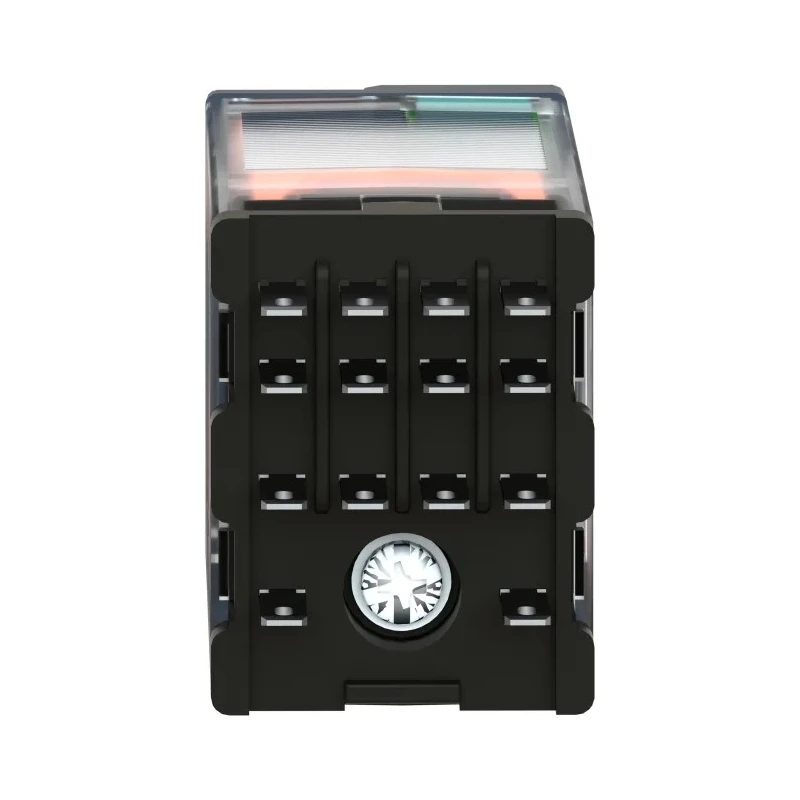

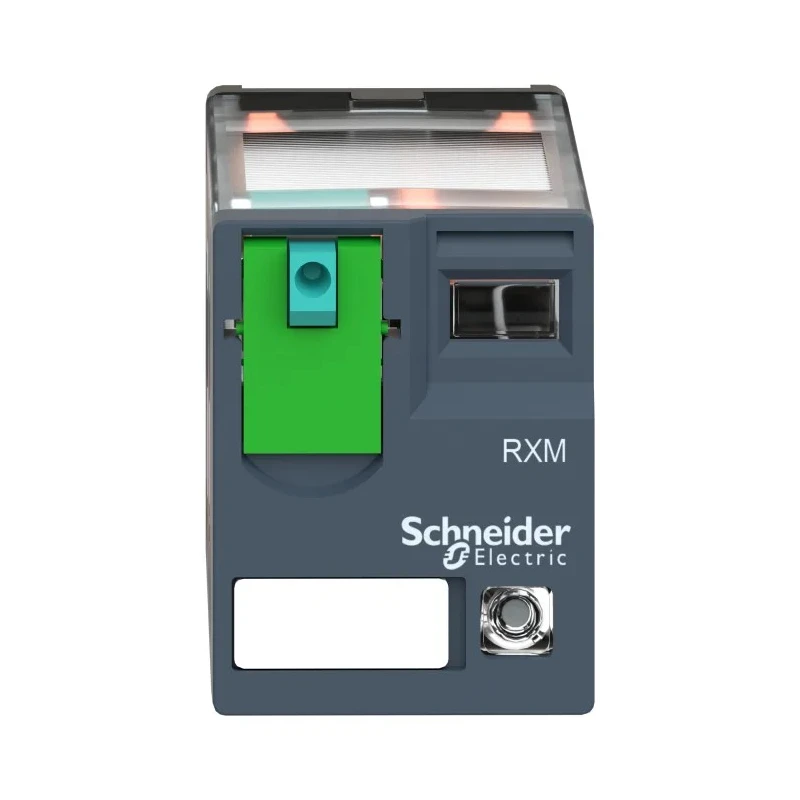

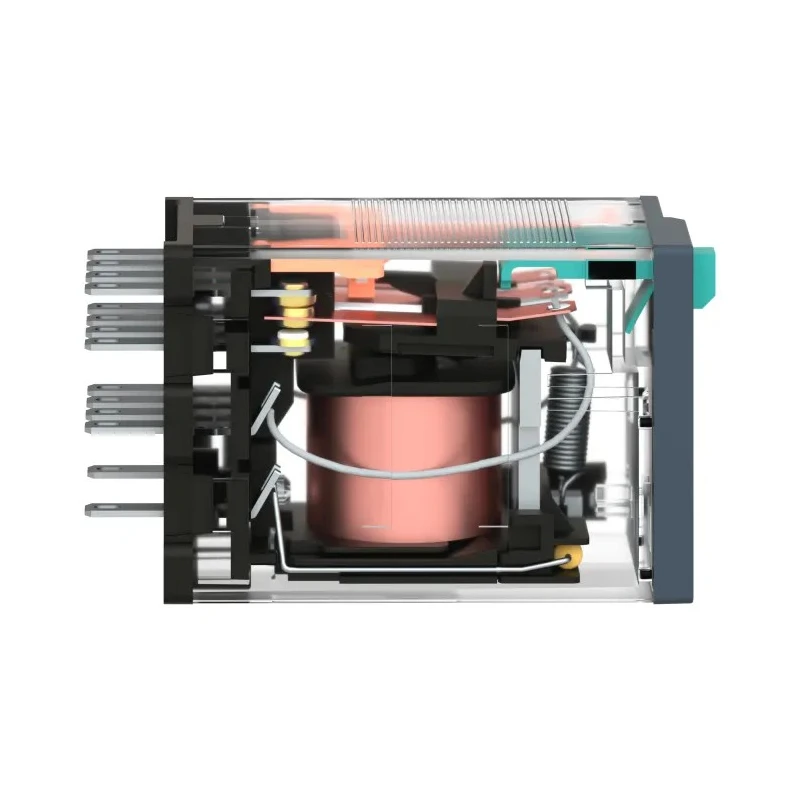

Schneider Electric Power Relay, 24V DC Coil, 8A Switching Current, 4PDT, Harmony Relay RXM Series RXM4AB2BD

Schneider Electric RXM4AB2BD Power Relay is a compact and reliable device designed for industrial electrical applications requiring precise control and switching capabilities. Featuring a 24V DC coil voltage and 8A switching current, it enables effective management of multiple circuits through its 4PDT contact configuration. Its small form factor, measuring just 21mm in length, 47.7mm in width, and 27mm in height, makes it ideal for installations where space is limited.

This relay boasts a mechanical lifespan of 10 million operating cycles, underlining its durability and suitability for high-frequency switching tasks up to 1,200 cycles per hour. It operates efficiently within a wide temperature range from -40°C to 55°C, making it reliable under diverse industrial conditions. The plug-in terminal type facilitates fast and hassle-free installation or replacement in control panels.

Equipped with silver alloy contacts, the relay ensures low contact resistance and high electrical conductivity, supporting switching AC voltages up to 250V and DC voltages up to 28V. Its coil power is rated at 900 mW with a resistance of 650Ω. The unit also includes an LED indicator for visual status detection, improving maintenance and monitoring ease in complex assemblies.

Weighing only 37 grams, the relay places minimal strain on mounting infrastructure and is certified to CSA and CE standards, assuring compliance with global safety and quality benchmarks. Applications span processing and packaging lines, HVAC systems, and industrial automation processes, where reliable and precise switching is paramount.

Manufactured in China, this product belongs to Schneider Electric's Harmony RXM Series, known for high performance and adaptability in control relay applications. The device is touch-proof rated IP40, providing protection against access to hazardous parts and ingress of objects larger than 1mm, enhancing safety during operation.

Compact dimensions and lightweight for versatile installation. Extended mechanical lifespan ensures long-term reliability. Wide operating temperature range for harsh environments. Silver alloy contacts support high conductivity and low resistance.

Plug-in terminals enable easy installation and maintenance. Visual LED indicator for operational status monitoring. Supports control of multiple circuits via 4PDT contact setup. Compliant with international CSA and CE standards.
